User manual for the 3DR IRIS Quadcopter with GoPro Mount (915 MHz, RTF) 3DR0171
The user manual for the 3DR IRIS Quadcopter with GoPro Mount (915 MHz, RTF) 3DR0171 provides
necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.

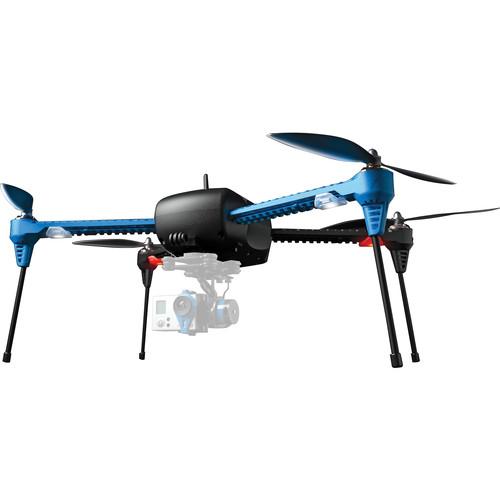

You can operate the IRIS+ Quadcopter with GoPro Mount from 3D Robotics to old way, using the included transmitter (radio controller), or you can take advantage of GPS navigation and autonomy to plot an autopilot course using waypoints and an Android mobile device. The IRIS+ comes with a static GoPro mount as a simple way to mount the camera, plus it's compatible with the separately available Tarot Gimbal for aerial video applications where motorized stabilization and the ability to move the camera is required. A 5100mAh LiPo flight battery comes in the box and is estimated to provide between 16 to 22 minutes of flying time. This version features a 915 MHz radio for U.S. (Region 2) regulatory compliance.
Thanks to GPS and an ARM Cortex-powered flight computer not only is autonomous flying possible, the IRIS+ can also land itself automatically at the press of a button, or fly back to a pre-specified home point should contact with the transmitter be lost or if the battery drops below a certain threshold. It also enables GPS tracking, whereby the IRIS+ will follow a subject on the ground who is carrying a GPS-enabled Android device.
Since this is a "ready-to-fly" (RTF) bundle, all of the basics to get started are included. In the box you will find a transmitter, the 3DR telemetry radio, a 5100mAh flight battery, a battery charger, a USB cable, and an Android OTG cable.
|
If you own a 3DR aerial imaging platforms & drones and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the 3DR IRIS Quadcopter with GoPro Mount (915 MHz, RTF) 3DR0171 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the 3DR IRIS Quadcopter with GoPro Mount (915 MHz, RTF) 3DR0171:
| Payload Capacity | Up to 14.1 oz / 400 g | | Flight Time | Typically 16 to 22 minutes (depending on payload weight and other factors) | | Processor | 32-bit Pixhawk with Cortex M4 CPU | | GPS | uBlox GPS with integrated magnetometer | | Receiver | 3DR Radio, 915 MHz | | Rotors | 2 x CCW: 9.5 x 4.5" / 24.1 x 11.4 cm tiger motor multi-rotor; self-tightening counterclockwise rotation
2 x CW: 9.5 x 4.5" / 24.1 x 11.4 cm tiger motor multi-rotor; self-tightening clockwise rotation | | Motors | 4 x 920 KV | | Mount | Integrated GoPro camera mount with vibration dampener | | Flight Battery | 3S 5100 mAh LiPo | | Frequency | 915 MHz (FCC complaint; Europe and other regions may require the 433 MHz version) | | Transmit Power | Up to 100 mW at 20 dBm (adjustable) | | Receiver Sensitivity | 25 mA | | Receive Sensitivity | -117 dBm | | Protocol | MAVLink | | Transmission Method | 2-way full-duplex communication through adaptive TDM
Frequency Hopping Spread Spectrum (FHSS) | | Parallel/Serial Translation | UART interface (3.3 VDC) / transparent serial link | | Error Correction | Corrects up to 25% of bit errors | | Firmware | Open-source SIK firmware | | Software Requirements | Configurable through Mission Planner and APM Planner | | Compatible Devices | Android tablet with OTG (on the go) support
Windows desktop computer | | Connectivity | Per Radio (Two Included):
1 x Micro-USB port
1 x 6-pin DF13 connector
1 x RP-SMA for antenna | | Power Requirements | 3.7 to 6 VDC (from USB or DF13 connector) | | Dimensions | 1.1 x 2.2 x 0.5" / 26.7 x 55.5 x 13.3 mm | | Dimensions | Height: 3.9" / 100 mm
Motor-to-Motor Dimension: 21.7" / 550 mm | | Weight | With Battery: 2.8 lb / 1.3 kg | | Package Weight | 9.3 lb | | Box Dimensions (LxWxH) | 25.0 x 13.0 x 5.0" | |
