User manual for the Abakus 1061 Video Lens Adapter for Super-16, 1-Chip Cameras 1061
The user manual for the Abakus 1061 Video Lens Adapter for Super-16, 1-Chip Cameras 1061 provides
necessary instructions for the proper use of the product Professional Video - Lenses & Lens Accessories - Lens Mount Adapters.

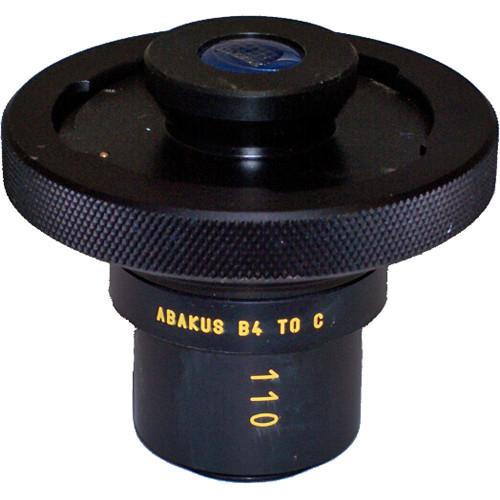

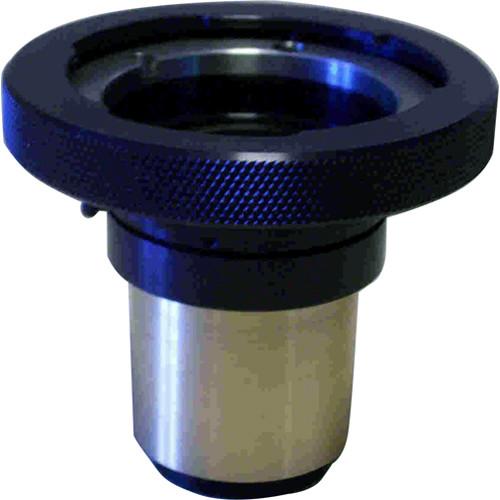

The 1061 Video Lens Adapter for Super-16, 1-Chip Cameras from Abakus allows you to use your 2/3" ENG-type video zoom lens on a single sensor camera. The adapter features a wear resistant stainless steel B4 lens port that interfaces with your B4 Mount lens, and converts your lens to work with C-mount cameras. The adapter incorporates corrective optics that provide 1.32x magnification that compensates for lack of a prism and maintains your lenses original angle of view.
An integrated rotatable collar features a locking screw that allows you to mount the adapter to your camera and then adjust and lock the orientation of your lens in the adapter.
|
If you own a Abakus lens mount adapters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Abakus 1061 Video Lens Adapter for Super-16, 1-Chip Cameras 1061 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Abakus 1061 Video Lens Adapter for Super-16, 1-Chip Cameras 1061:
| Interface | Stainless steel B4 to C-Mount | | Magnification | 1.32 | | Coverage | Super-16 | | Maximum Aperture | f/1.85 | | Length | 2.1" / 5.3 cm | | Weight | 10.0 oz / 283.5 g | |
