User manual ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11

Operating instructions and pdf manual for use - ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11 User manual, User manual ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11, ACTi, 1MP, Cube, Camera, with, 4.2mm, Fixed, Lens, E11, Video

User manual for ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11

ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11
  • Manufacturer: ACTi
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your ACTi
  • Settings and expert assistance
  • Contact ACTi service
  • Troubleshooting
  • Warranty information
  • Price: 160 USD

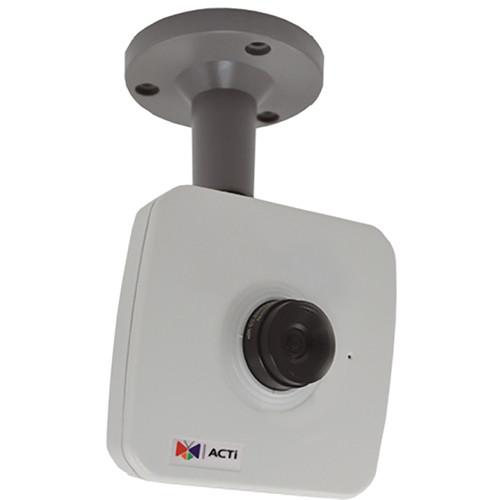

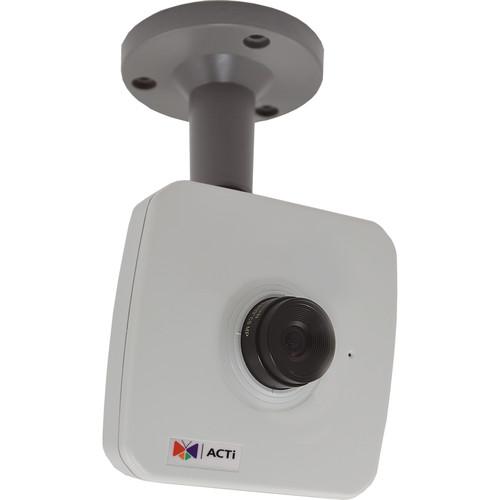

ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11 ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11
Click to enlarge image
We recommend checking out our discussion threads on the ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11, which address similar problems with connecting and setting up Wired IP Cameras ACTi.


User manual for the ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11

The user manual for the ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The 1MP Cube Camera from ACTi features a 1/4" progressive-scan CMOS image sensor to deliver high-quality images at a resolution of up to 1280 x 720 at 30 fps. The 4.2mm fixed lens with an f/1.8 aperture provides a 53.8° horizontal field of view. Wide dynamic range, white balance, automatic gain control, and digital noise reduction features allow for clear images when there is ambient lighting or in low-light scenarios.

Motion Detection triggers an alarm when movement is detected in a designated portion of the video display, and 4 configurable privacy masking regions enable you to block certain portions of an image for security reasons. A built-in microphone and a 3.5mm jack offer two-way audio, enabling you to communicate with those you are monitoring.
If you own a ACTi wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11Download user manual for ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11
(PDF file, 0.73 MB)
Additional parameters of the ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11:
Specifications
    Device Type Cube Camera
    Image Sensor 1/4" Progressive-scan CMOS
    Day/Night No
    Minimum Illumination Color: 0.1 lux at f/1.8 (30 IRE, 2400°K)
    Mechanical IR Cut Filter No
    IR Sensitivity Range No
    Electronic Shutter 1/5 to 1/2000 sec (Manual / Auto mode)
    Lens
    Focal Length / Aperture 4.2mm fixed lens
    Aperture f/1.8
    Iris Fixed iris
    Focus Manual focus
    Lens Mount CS-Mount (interchangeable lens)
    Horizontal Viewing Angle 53.8°
    Video
    Compression H.264 HP and MJPEG
    Maximum Frame Rate vs. Resolution 30 fps at 1280 x 720 (HD 720p)
    30 fps at 640 x 480 (VGA)
    Multi-Streaming Simultaneous dual steams based on 2 configurations
    Bit Rate 28 Kbps to 6 Mbps (per stream)
    Bit Rate Mode Constant, Variable
    Image Enhancement Basic WDR; White balance: automatic, hold, and manual; Brightness; Contrast; Automatic gain control; Digital noise reduction; Flicker-less
    Privacy Mask Type 4 configurable regions
    Text Overlay User-defined text on video
    Image Orientation Image flip and mirror
    Audio
    Compression 8 kHz, Mono, PCM, 16-bit encoding; G.711
    Audio In Built-in Microphone
    Audio Out 3.5mm jack
    Network
    Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
    Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
    Security IP address filtering; HTTPS encryption; Password-protected user levels; IEEE 802.1X network access control
    Alarm
    Alarm Triggers Video motion detection (3 regions)
    Alarm Response Notify control center; Change camera settings; Command other devices; email notification with snapshots; upload video, snapshot to FTP server
    General
    Power Source PoE Class 2 (IEEE802.3af)
    Power Consumption 3.15 W
    Mount Type Wall, Ceiling
    Operating Temperature 14 to 113°F (-10 to 45°C)
    Operating Humidity 10 to 85% RH
    Approvals CE, FCC
    Integration
    Unified Solution Fully compatible with ACTi software
    ISV Integration Software Development Kit (SDK) available; ONVIF compliant
    Firmware Access Browser Microsoft Internet Explorer 6.0 or newer
    Dimensions (W x H x D) 3.8 x 3.8 x 1.8" (96 x 96 x 45.07 mm)
    Weight 0.45 lb (0.20 kg)
    Packaging Info
    Package Weight 0.95 lb
    Box Dimensions (LxWxH) 7.9 x 5.4 x 3.5"
    The user manual for the ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ACTi users keep a unique electronic library for ACTi wired ip camerass, where you can use our link to download the user manual for the ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11.

    The user manual lists all of the functions of the ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ACTi service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ACTi 1MP Cube Camera with 4.2mm Fixed Lens E11. User manuals are also available on the ACTi website under Surveillance - Surveillance Video - Wired IP Cameras.
