User manual for the ACTi E41B 1MP Indoor/Outdoor D/N IP Bullet Camera E41B

The user manual for the ACTi E41B 1MP Indoor/Outdoor D/N IP Bullet Camera E41B provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

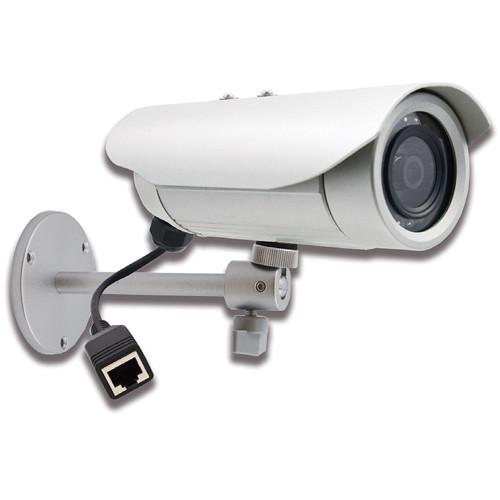

The ACTi E41B 1MP Indoor/Outdoor D/N IP Bullet Camera with Varifocal Lens  features a 1MP progressive scan CMOS image sensor that allows you to capture clear and crisp images in resolutions up to 1280 x 720 pixels at 30 fps. It is equipped with a 3.3 to 12mm fixed iris varifocal lens with f/1.6 aperture. Featuring a mechanical ICR (IR cut filter), the camera assures good color rendition in up to 0.1 lux illumination, and the 15 IR LEDs allow the camera to capture clear images even in total darkness (0 lux).

The bullet camera can be installed and used in bright and low light areas thanks to the basic WDR (Wide Dynamic Range), which allows the camera to capture images in varied light conditions. It supports selectable H.264 High Profile and MJPEG compressions with dual streaming and transmits real-time high-quality images through a standard TCP/IP network. Furthermore, it also features a built-in hardware motion detection sensor that detects the presence of relevant motion in the area under surveillance (up to 3 areas can be assigned). The camera supports 2-way audio, microSDHC/SDXC card, and digital input/output function.
If you own a ACTi wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ACTi E41B 1MP Indoor/Outdoor D/N IP Bullet Camera E41B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ACTi E41B 1MP Indoor/Outdoor D/N IP Bullet Camera E41B:
Camera
Image Sensor 1/4" progressive scan CMOS
Minimum Illumination Color: 0.1 lux at f/1.6 (30 IRE, 2,400 K)
B/W: 0 lux (IR LED on)
Color to B/W switch ISP-based switch, configurable
IR Sensitivity Range 700 to 1,100 nm
IR LED IR LED x 15 (850 nm)
IR Working Distance 49.21' (15.00 m), 0 lux, 30 IRE at maximum exposure gain
Electronic Shutter 1/5 to 1/10,000 sec (auto mode), 1/5 to 1/2,000 sec (manual mode)
Lens
Focal Length / Aperture Varifocal, f3.3 to 12 mm /F1.6
Iris Fixed
Focus Manual
Mount Type Board
Horizontal Viewing Angle 69.8 to 19.1°
Video
Compression H.264 high profile, MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
Multi-Streaming Simultaneous dual streams based on 2 configurations
Bit Rate 28 kb/s to 6 Mb/s (per stream)
Bit Rate Mode Constant, variable
Image Enhancement Basic WDR
White Balance: Automatic, hold, and manual
Brightness
Contrast
Auto Gain Control
Digital Noise Reduction
Flickerless
Privacy Mask Type 4 configurable regions
Text Overlay User-defined text on video
Graphics On-Screen: User defined image layer on video
Image Orientation Flip and mirror
Network
Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; password-protected user levels; IEEE 802.1X network access control
Alarm
Alarm Triggers Video motion detection (3 regions)
Alarm Response Notify control center; change camera settings; command other devices; send email notifications with snapshots; upload videos or snapshots to FTP server
Interface
Digital I/O Terminal block
Local Storage microSDHC/SDXC memory card slot

Memory card sold separately.

Integration
Unified Solution Fully compatible with ACTi software
ISV Integration SDK (Software Development Kit) available, ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 6.0 or newer (full functionality), Other browsers with VLC installed (partial functionality)
General
Power Source PoE Class 2 (IEEE802.3af)
Power Consumption 3.74 W (IR on)
Environmental Casing Weatherproof (IP66 rated)
Mount Type Wall, ceiling, corner, pole
Operating Temperature -4 to 122°F (-20 to 50°C)
Operating Humidity 10 to 85% RH
Approvals CE, FCC, IP66
Dimensions (Ø x L) 3.03 x 8.39" (77.00 x 213.00 mm)
Weight 1.41 lb (639.00 g)
The user manual for the ACTi E41B 1MP Indoor/Outdoor D/N IP Bullet Camera E41B can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ACTi users keep a unique electronic library for ACTi wired ip camerass, where you can use our link to download the user manual for the ACTi E41B 1MP Indoor/Outdoor D/N IP Bullet Camera E41B.

The user manual lists all of the functions of the ACTi E41B 1MP Indoor/Outdoor D/N IP Bullet Camera E41B, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ACTi service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ACTi E41B 1MP Indoor/Outdoor D/N IP Bullet Camera E41B. User manuals are also available on the ACTi website under Surveillance - Surveillance Video - Wired IP Cameras.
