User manual ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130

Operating instructions and pdf manual for use - ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130 User manual, User manual ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130, ACTi, ENR-130, 16-Channel, 2-Bay, H.264, Desktop


User manual for ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130

ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130
  • Manufacturer: ACTi
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Network Video Recorders (NVRs)
  • Safety instructions
  • Startup and operation of the network video recorders (nvrs)
  • Tips for setting up your ACTi
  • Settings and expert assistance
  • Contact ACTi service
  • Troubleshooting
  • Warranty information
  • Price: 741 USD

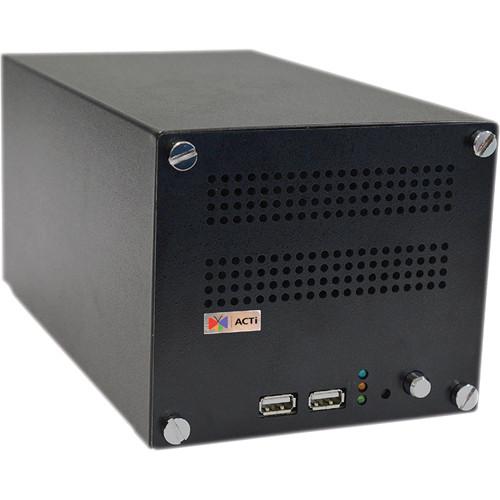

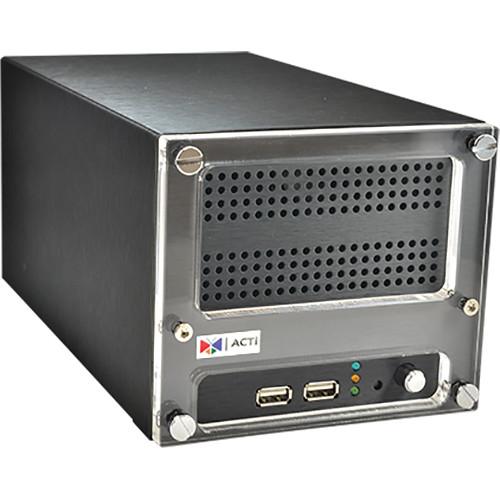

ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130 ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130 ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130
Click to enlarge image

We recommend checking out our discussion threads on the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130, which address similar problems with connecting and setting up Network Video Recorders (NVRs) ACTi.



User manual for the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130

The user manual for the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Network Video Recorders (NVRs).

The ENR-130 16-Channel 2-Bay H.264 Desktop Standalone NVR from ACTi is a compact and reliable multi-channel standalone unit that features a stable embedded Linux operating system and H.264 compression technology. The recorder supports megapixel resolution H.264 streaming from up to 16 cameras, an HDMI output for local display, PTZ control, scheduled / event-triggered / event speed-up recording, event management, synchronized playback, time / event-based playback search, and video bookmarks.
If you own a ACTi network video recorders (nvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130Download user manual for ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130
(PDF file, 13.88 MB)
Additional parameters of the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130:
Specifications
    General
    Maximum Number of Clients 1 local, 2 remote
    Maximum Number of Cameras 16
    Video Compression H.264
    Audio Compression Format PCM, G.711 a-law/u-law (Only supports local recording and remote live view/playback, does not support local live view/playback)
    Maximum Display Resolution 1920 x 1080
    Live View
    Display Layout Mode 1, 2, 4, 6, 8, 9, 10, 12, 13, 16
    Layout Tour Automatic switch between different display layouts
    Digital Zoom Zoom in digitally by mouse
    Event Display status for network/record/motion/DI/video loss upon every video region
    PTZ
    Control Pan, tilt, and zoom controls; speed control
    Preset Points and Tours Go/set preset points
    Number of Preset Points 32
    Joystick USB based joystick supported
    Default Protocol URL command
    Recording
    Scheduled Recording Record video with user defined schedule
    Event Recording Record video when the alarm event is triggered, including the pre-event buffered video clip
    Triggers & Events Record I frame only in normal status, and record full frames when the alarm event is triggered
    Manual Recording Instant recording upon mouse click
    Recording Frame Rate Maximum 480 fps in total; Maximum 30 fps per camera
    Maximum Recording Throughput 48 Mb/s
    Storage
    Interface Serial ATA
    HDD 2 x 4 TB supported (HDDs available separately)
    HDD Bay Maximum 2 disks
    Interfaces
    USB 2 x USB 2.0 (USB 1.1 not supported)
    Ethernet Port LAN1: 1000Base-T ; LAN2: 10/100Base-T (WAN port)
    Port HDMI
    Search & Playback
    Video Search Time Based Video Search: Search video recordings by time, channel, or bookmark
    Event Based Video Search: Search event triggered video recordings, event response video loss
    Playback Control Forward and backward playback with speeds 1/2x-1x-32x; pause; stop
    Synchronized Playback 16 channels
    Snapshot Create snapshot from playback for export
    Cropping Crop a short video clip from long recording file and save it as an independent file; video clip length: 1 to 30 min
    Video Export Export video clips in AVI/RAW format via USB storage
    Event Management
    Event Trigger Video motion detection; External device through digital input; Network loss and recovery
    Event Response Record video; Play alert beep; Activate external device through digital output; E-mail notification with snapshots; Enlarge; Video loss; Go to PTZ preset point
    System
    Upgrades FW Upgrade via USB storage
    Configuration Configuration backup/restore via USB storage
    Permission Control Multi-group/users, liveview/playback/setup/remote level permission
    Operating System Embedded Linux
    System Status Monitor Real-time status reports on remote browser
    Language Multi-language support
    Minimum System Requirements
    CPU Intel Core 2 Quad 2.66 GHz
    RAM 4 GB
    Network Ethernet (1000 Base-T recommended)
    Operating System Windows 7 and Windows 8 (All versions)
    Display Resolution 1080p
    Browser Internet Explorer 9.0 or 10.0
    Remote Access
    Mobile Client Program Mobile device application (Mobile client!) supporting live view, NVR layouts, PTZ control, event or time based search and playback
    Supported devices: iPhone, iPad, iPod; Android devices (Live view)
    Electrical
    Power Source 12 VDC
    Power Consumption 22 W
    Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); Adapter: CE, FCC, UL, PSE, Efficiency Level V
    Unified Solution Fully compatible with ACTi cameras, encoders and CMS V2.0
    Environmental
    Operating Temperature 32 to 104°F (0 to 40°C)
    Operating Humidity 10 to 85% RH
    Physical
    Dimensions (W x H x D) 5.3 x 4.8 x 9.9" (135.0 x 121.0 x 251.0 mm)
    Weight 2.91 lb (1.32 kg)
    The user manual for the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130 can be downloaded in .pdf format if it did not come with your new network video recorders (nvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ACTi users keep a unique electronic library for ACTi network video recorders (nvrs)s, where you can use our link to download the user manual for the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130.

    The user manual lists all of the functions of the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130, all the basic and advanced features and tells you how to use the network video recorders (nvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ACTi service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop Standalone ENR-130. User manuals are also available on the ACTi website under Surveillance - Surveillance Video - Network Video Recorders (NVRs).
