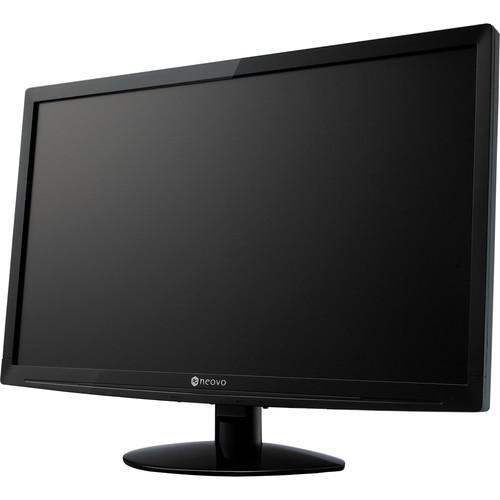

User manual AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22

Operating instructions and pdf manual for use - AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22 User manual, User manual AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22, AG, Neovo, LW-22, 22, Widescreen, LED, Backlit, LCD, M


User manual for AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22

AG Neovo LW-22 22
  • Manufacturer: AG Neovo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your AG Neovo
  • Settings and expert assistance
  • Contact AG Neovo service
  • Troubleshooting
  • Warranty information
  • Price: 200 USD
We recommend checking out our discussion threads on the AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22, which address similar problems with connecting and setting up Computer Monitors AG Neovo.



User manual for the AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22

The user manual for the AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22 provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

The LW-22 22" Widescreen LED Backlit LCD Monitor from AG Neovo features a Full HD 1920 x 1080 display complete with a 20,000,000:1 contrast ratio. The Full HD resolution and enhanced contrast ratio produce crisp, clear pictures and the 3 ms response time allows for the viewing of fast moving videos, and movies with reduced blur or lag. Configuration of this AG Neovo monitor is simple as it comes equipped with D-Sub, DVI-D, and HDMI inputs. Once configured the display can be viewed from nearly any angle with support for 170° horizontal and 160° vertical viewing angles.
If you own a AG Neovo computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for AG Neovo LW-22 22Download user manual for AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22
(PDF file, 0.95 MB)
Additional parameters of the AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22:
Panel Type LED-backlit TFT LCD
Panel Size 21.5" / 546 mm
Max Resolution Full HD 1920 x 1080
Pixel Pitch 0.248 mm
Brightness 250 cd/m² (typical)
Contrast Ratio 20,000,000:1 (DCR)
Surface Treatment Hard coating (3H), anti-glare treatment
Viewing Angles Horizontal: 170°
Vertical: 160°
Display Colors 16.7 million
Response Time 3 ms (GTG)
Frequency Horizontal: 30 to 83 kHz
Vertical: 56 to 75 Hz
Input Analog: 15-pin D-Sub
Digital: 24-pin DVI-D
HDMI
Audio Audio In: 3.5 mm audio line-in
Speaker: 2 x 2 watt speakers
Power Supply Internal
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption On: <33 watts
Stand-by: <0.5 watts
Off: <0.5 watts
Plug & Play VESA DCC 2B
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -13 to 131°F / -25 to 55°C
Operating Humidity 10 to 85%
Storage Humidity 10 to 85%
VESA Mount Standard 100 x 100 mm
Tilt -4° to +18°
Regulation Approval FCC, CB, CE, BSMI, GOST-R, WEEE, RoHS, REACH
Dimensions 19.9 x 14.4 x 7.1" / 506 x 366 x 180 mm
Weight 7.7 lb / 3.5 kg
Packaging Info
Package Weight 9.65 lb
Box Dimensions (LxWxH) 21.7 x 14.6 x 4.8"
The user manual for the AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22 can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AG Neovo users keep a unique electronic library for AG Neovo computer monitorss, where you can use our link to download the user manual for the AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22.

The user manual lists all of the functions of the AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AG Neovo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AG Neovo LW-22 22" Widescreen LED Backlit LCD Monitor L-W22. User manuals are also available on the AG Neovo website under Computers & Solutions - Monitors & Displays - Computer Monitors.
