User manual for the AJA GEN10 HD/SD/AES Sync Generator with Universal Power GEN10
The user manual for the AJA GEN10 HD/SD/AES Sync Generator with Universal Power GEN10 provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video & Audio Signal Generators.

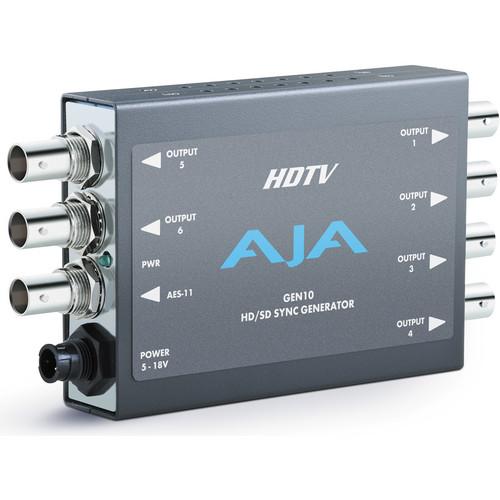

The AJA GEN10 HD/SD/AES Sync Generator with Universal Power Supply is a very cost effective sync generator, providing multi-format tri-level sync, color black sync, 75% color bar sync, and AES tone or silence sync. GEN10 supports up to 1080p/30 NTSC or 1080p/25 PAL and features seven outputs. One is an AES-11 that switches between silence and tone. The remaining six are two groups of independently controlled sync outputs -- one group SD, one HD. The SD outputs can be switched between color black or 75% color bars; and the HD outputs feature tri-level sync and can be switched between 19 different HD formats. All outputs are in sync with each-other and are sourced from an accurate master timebase.
|
If you own a AJA video & audio signal generators and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the AJA GEN10 HD/SD/AES Sync Generator with Universal Power GEN10 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the AJA GEN10 HD/SD/AES Sync Generator with Universal Power GEN10:
Sync | HD: tri-level SD: color black, 75% color bars | Outputs | AES-11: 1x BNC, 48 KHz, silent or 1 KHz tone (-20 dBFS for NTSC, -18 dBFS for PAL)
Video: Assignable in two groups to either HD or SD -- 4x BNCs - outputs 1 to 4 2x BNCs - outputs 5 and 6 | Accuracy | 3 ppm | Formats | 1080p23.98/24/25/29.97/30 1080psF23.98/24/25/29.97/30 1080i50/59.94/60 720p23.98/24/25/29.97/30/50/59.94/60 525i, 625i | User Controls | External dipswitch | Power | 5-18 V DC, 2 W | Dimensions | 5.8 x 3.1 x 1" (14.7 x 7.9 x 2.5 cm) | Package Weight | 1.65 lb | Box Dimensions (LxWxH) | 9.8 x 7.2 x 2.8" | |
The user manual for the AJA GEN10 HD/SD/AES Sync Generator with Universal Power GEN10 can be downloaded in .pdf
format if it did not come with your new video & audio signal generators, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other AJA users keep a unique electronic library
for AJA video & audio signal generatorss,
where you can use our link to download the user manual for the AJA GEN10 HD/SD/AES Sync Generator with Universal Power GEN10.
The user manual lists all of the functions of the AJA GEN10 HD/SD/AES Sync Generator with Universal Power GEN10,
all the basic and advanced features and tells you how to use the video & audio signal generators.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from AJA service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the AJA GEN10 HD/SD/AES Sync Generator with Universal Power GEN10. User manuals are also
available on the AJA website under Professional Video - Signal Processing & Distribution - Video & Audio Signal Generators.
