User manual AKG AKG Perception P220 Microphone and Recording Essentials Kit

Operating instructions and pdf manual for use - AKG AKG Perception P220 Microphone and Recording Essentials Kit User manual, User manual AKG AKG Perception P220 Microphone and Recording Essentials Kit, AKG, AKG, Perception, P220, Microphone, Record

User manual for AKG AKG Perception P220 Microphone and Recording Essentials Kit

AKG AKG Perception P220 Microphone and Recording Essentials Kit
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Large Diaphragm Condenser
  • Safety instructions
  • Startup and operation of the large diaphragm condenser
  • Tips for setting up your
  • Settings and expert assistance
  • Contact service
  • Troubleshooting
  • Warranty information
  • Price: 200 USD
We recommend checking out our discussion threads on the AKG AKG Perception P220 Microphone and Recording Essentials Kit, which address similar problems with connecting and setting up Large Diaphragm Condenser .


User manual for the AKG AKG Perception P220 Microphone and Recording Essentials Kit

The user manual for the AKG AKG Perception P220 Microphone and Recording Essentials Kit provides necessary instructions for the proper use of the product Pro Audio - Recording - Large Diaphragm Condenser.

The AKG Perception P220 Microphone and Recording Essentials Kit from B&H includes everything you need to start recording your music, podcasts, and more. The kit includes a P220 Large-Diaphragm Condenser Microphone, a Senal XU-1648 XLR-to-USB Interface, Polsen HPC-A30 Closed-Back Studio Monitor Headphones, an XLR M to XLR F mic cable, a pop filter, and a desktop mic stand.

If you own a large diaphragm condenser and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AKG AKG Perception P220 Microphone and Recording Essentials Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the AKG AKG Perception P220 Microphone and Recording Essentials Kit:
Specifications

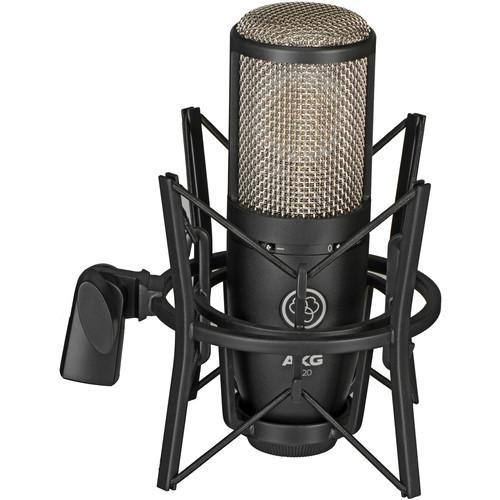

    • AKG Project Studio P220 Large Diaphragm Condenser Microphone (Black)
      Capsule 1" True Condenser
      Polar Pattern Cardioid
      Frequency Response 20 Hz to 20 kHz
      Sensitivity 20 MV/PA (-34 dBV)
      Maximum SPL 135/155 dB (0/-20 dB Pad) (0.5% THD)
      Equivalent Noise Level 16 dB(A) (IEC 60286-4)
      Signal to Noise Ratio 78 dB(A) Re 1 PA
      Pad -20 dB
      Low Cut Filters 300 Hz, 12 dB/Octave
      Impedance Electrical Impedance: ≤ 200 Ω
      Recommended Load Impedance: ≥ 1000 Ω
      Connector 3-pin XLR (pin 2 hot)
      Phantom Power 48 V ± 4 V to (IEC 61938)
      Current Consumption ≤ 3 MA
      Temperature Range 14 to 140°F (-10 to 60°C)
      Packaging Info
      Box Dimensions (LxWxH) 9.4 x 8.9 x 5.2"
    • Senal XU-1648 XLR-to-USB Interface
      Input XLR
      Input Impedance 1,200 Ω
      Input Gain Adjustment 35 dB
      Headphone Output 1/8" (3.5 mm) stereo
      Headphone Output Power 50 mW (16 Ω load)
      USB Connector Standard-B, digital audio interface
      Sampling Rate DAC: 32, 44.1, 48 kHz
      ADC: 8, 11.025, 16, 22.05, 32, 44.1, 48 kHz
      Bit Depth 16-bit
      USB Support 1.1, 2.0
      Phantom Power 48 V ±2 V, 15 mA
      Frequency Response 25 Hz to 20 kHz
      Power Consumption 2.2 W
      Dimensions 5.1 × 1.2 × 1.1" (13.0 × 3.1 × 2.8 cm)
      Weight 3.3 oz. (94.0 g)
      Packaging Info
      Box Dimensions (LxWxH) 6.7 x 6.6 x 1.7"
    • Polsen HPC-A30 Closed-Back Studio Monitor Headphones
      Type Circumaural
      Ear Cup Closed back
      Driver 2" (50 mm)
      Impedance 32 Ω
      Sensitivity -93 dB ±3 dB (@ 1 kHz/mW)
      Maximum Power 600 mW
      Distortion < 5% @ 1 kHz
      Frequency Response 18 Hz to 22 kHz
      Cable Length 9.8' (3 m)
      Weight 6.5 oz (184 g)
      Packaging Info
      Box Dimensions (LxWxH) 8.7 x 7.4 x 3.8"
    • Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black
      Cable Type 3-Pin XLR balanced microphone cable
      Length 10' (3.0 m)
      Shielding 95% Dual-Spiral Shielding
      Gauge 24 AWG
      Contacts Silver
      Connector 1 XLR Male
      Connector 2 XLR Female
      Packaging Info
      Box Dimensions (LxWxH) 5.7 x 2.2 x 1.0"
    • Auray PFN-6 Nylon Pop Filter with Gooseneck (6")
      Packaging Info
      Box Dimensions (LxWxH) 13.6 x 6.9 x 2.0"
    • Auray TT-6110 Desktop Microphone Stand (Black)
      Construction Steel
      Thread Size 5/8"-27 thread for microphone mounts
      Base Type Weighted round base
      Base Diameter 6.2" (15.6 cm)
      Height Range 5.3" (13.5 cm)
      Weight 2.1 lb (0.95 kg)
      Packaging Info
      Box Dimensions (LxWxH) 22.3 x 15.4 x 8.1"
    The user manual for the AKG AKG Perception P220 Microphone and Recording Essentials Kit can be downloaded in .pdf format if it did not come with your new large diaphragm condenser, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other users keep a unique electronic library for large diaphragm condensers, where you can use our link to download the user manual for the AKG AKG Perception P220 Microphone and Recording Essentials Kit.

    The user manual lists all of the functions of the AKG AKG Perception P220 Microphone and Recording Essentials Kit, all the basic and advanced features and tells you how to use the large diaphragm condenser. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AKG AKG Perception P220 Microphone and Recording Essentials Kit. User manuals are also available on the website under Pro Audio - Recording - Large Diaphragm Condenser.
