User manual for the AKG Drum Premium Microphone Set 2581Z00140

The user manual for the AKG Drum Premium Microphone Set 2581Z00140 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Instrument.

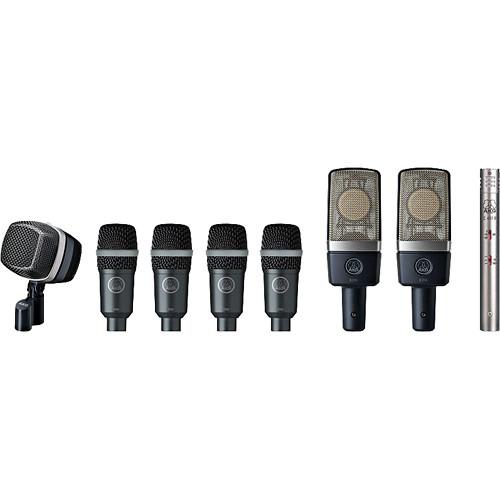

The AKG Drum Premium Microphone Set is suitable for touring, live, and studio applications. This set includes a D12 VR Dynamic Bass Drum Microphone, a C451 B Condenser Microphone for Hi Hat, 2 C214 Matched Pair Condenser Microphones for overheads, 4 D40 Dynamic Instrument Microphones for Snare and Toms, and 4 K&M 24030 Drum Rim Microphone Mounts for plug-and-play use. This hand-selected collection of high-quality microphones for miking drums comes in a rugged, heavy-duty metal carry case that ensures safe transportation.
If you own a AKG instrument and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AKG Drum Premium Microphone Set 2581Z00140 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the AKG Drum Premium Microphone Set 2581Z00140:
Microphone Type D12 VR Dynamic Bass Drum Microphone
Frequency Bandwidth Audio: 17 to 17,000 Hz
Polar Pattern Cardioid
Sensitivity 1.2 mV/Pa
Impedance Electrical: 200 Ω
Recommended Load: 1,000 Ω
Audio Output Type: Balanced XLR
Gender: Male
Contacts: 3-pin
Body Metal
Finish Galvanized nickel matte/black
Dimensions (L x W x H) 3.9 x 2.5 x 4.9" (101.0 x 66.0 x 125.0 mm)
Diameter 2.5" (66.0 mm)
Weight 17.6 oz (500.0 g)
Microphone Type C451 B Condenser Microphone
Frequency Bandwidth Audio: 20 to 20,000 Hz
Sensitivity 9 mV/Pa
Equivalent Noise Level 18 dB-A
Signal to Noise Ratio 76 dB-A
Attenuation Pad: -10, -20 dB
Filter Bass Cut: 75, 150 Hz
Impedance Electrical: 200 Ω
Recommended Load:1,000 Ω
Polar Pattern 1 x cardioid
Voltage 9 to 52 V
Current 2 mA
Audio Output Type: Balanced XLR
Gender: Male
Contact: 3-pin
Finish Satin nickel plated
Dimensions (Ø x H) 0.7 x 6.3" (19.0 x 160.0 mm)
Weight 4.4 oz (125.0 g)
Microphone Type C214 Matched Pair Condenser Microphone
Frequency Bandwidth Audio: 20 to 20,000 Hz
Sensitivity 20 mV/Pa
Equivalent Noise Level 13 dB-A
Signal to Noise Ratio 81 dB-A
Attenuation Pad: -20 dB
Filter Bass Cut: 160 Hz
Impedance Electrical: 200 Ω
Recommended Load: 1,000 Ω
Polar Pattern 1 x cardioid
Voltage 9 to 52 V
Current 2 mA
Audio Output Type: Balanced XLR
Gender: Male
Contact: 3-pin
Finish Matte grayish blue
Dimensions (W x H) 2.2 x 6.3" (56.0 x 160.0 mm)
Weight 9.9 oz (280.0 g)
Microphone Type D40 Dynamic Instrument Microphone
Polar Pattern Cardioid
Frequency Bandwidth Audio: 75 to 17,000 Hz
Sensitivity 2.2 mV/Pa
Impedance Electrical: 200 Ω
Recommended Load: 2,000 Ω
Audio Output Type: Balanced XLR
Gender: Male
Contact: 3-pin
Body Metal
Finish Dark stage blue
Dimensions (LxHxD) 4.09 x 3.11 x 1.73" (104.00 x 79.00 x 44.00 mm)
Weight 8.6 oz (245.0 g)
Mount K&M 24030 mount
Material Steel
Threaded Connector 3/8"
Type Black
Weight 0.299 lb (0.136 kg)
Packaging Info
Package Weight 12.6 lb
Box Dimensions (LxWxH) 15.8 x 9.2 x 6.2"
The user manual for the AKG Drum Premium Microphone Set 2581Z00140 can be downloaded in .pdf format if it did not come with your new instrument, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AKG users keep a unique electronic library for AKG instruments, where you can use our link to download the user manual for the AKG Drum Premium Microphone Set 2581Z00140.

The user manual lists all of the functions of the AKG Drum Premium Microphone Set 2581Z00140, all the basic and advanced features and tells you how to use the instrument. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AKG service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AKG Drum Premium Microphone Set 2581Z00140. User manuals are also available on the AKG website under Pro Audio - Live Sound - Instrument.
