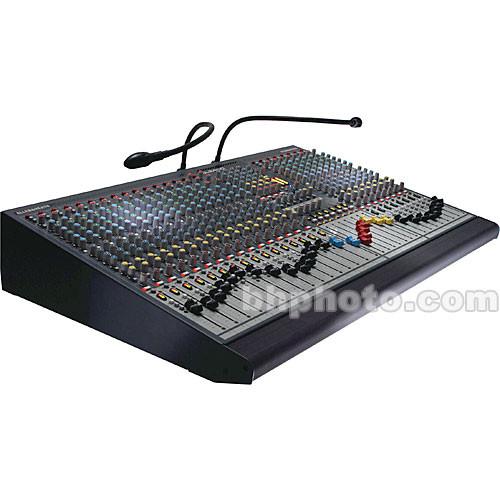

The Allen & Heath GL series live sound reinforcement consoles exhibit the quality and detail synonymous with consoles that would render some live sound rigs over budget. The GL2400 is available in a 16, 24, 32 and 40 input chassis with a compact enclosure ideal for any custom, portable flight case.
If you own a Allen & Heath sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Allen & Heath GL2400-24 24-Input, 4-Buss Live Sound AH-GL2400-24 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Allen & Heath GL2400-24 24-Input, 4-Buss Live Sound AH-GL2400-24Download user manual for Allen & Heath GL2400-24 24-Input, 4-Buss Live Sound AH-GL2400-24
(PDF file, 4.02 MB)
Additional parameters of the Allen & Heath GL2400-24 24-Input, 4-Buss Live Sound AH-GL2400-24:
Total # Of Inputs 24
Mic/Line Inputs 24 Line: 1/4" Phone
24 Mic: 3-pin XLR
Stereo Line Inputs 2 Stereo: L/R 1/4" Phone
In-Line Inputs/Returns No
AUX Sends 6 Aux Sends: 1/4" Phone
AUX Returns No
Inserts 24 Line: TRS 1/4" Phone
4 Group: TRS 1/4" Phone
2 Stereo Out: TRS 1/4" Phone
BUS (Group) Outputs 4 Group Outputs: Balanced 3-pin XLR
2 Trk Master I/O Main Outputs: Left / Right / Mono (sub) Balanced 3-pin XLR
2Trk In: L/R 1/4" Phone
2Trk Out: L/R 1/4" Phone
ALT I/O Matrix -
4 EXT In: 1/4" Phone
4 MTX: 1/4" Phone
Monitor Outputs Monitor Out: L/R 1/4" Phone
EQ Section Gain (each band): +/- 15dB
Mono Channels-
Low: Shelf 80Hz
Low Mid: 35Hz - 1kHz Q=1.8
High Mid: 500Hz - 15kHz Q=1.8
High: Shelf 12kHz
Stereo Channels -
Band Frequencies: 60Hz, 250Hz, 2.5kHz, 12kHz Q=1.8
Filter (mono inputs): Switch 100Hz
Solo/Mute Mute / PFL on all channels
Channel Level Control 100mm faders
Trim/Gain Control Sealed Rotary Potentiometers
Phantom Power +48 Volt Phantom Power (all mono channels)
Metering 12 Segment Stereo Peak LEDs
Frequency Response 20Hz to 30kHz
Mic to Main output (+40dB gain): +0/-0.5dB
Line to Main output (0dB): +0/-0.5dB
Dynamic Range not specified by manufacturer
Signal-to-Noise Ratio (22Hz to 22kHz unweighted)
Mic EIN with 150ohm source: -128dB
Residual output noise main outputs: < -98dBu
Main Mix noise (nothing routed): < -92dBu
Main Mix noise (24 channels routed): < -86dBu (90dB S/N)
Total Harmonic Distortion (THD) THD + Noise (mic In +40dB gain): < 0.004%
THD + Noise (line in 0dB gain): < 0.006%
Power Supply Up to 2 x 4pin XLR-F Internal (16,24,32)
Dimensions 32.16" x 5.9" x 25" (817 x 15 x 63.5cm) (WxHxD)
Weight 47.3 lb (21.5 kg)
Packaging Info
Package Weight 60.0 lb
Box Dimensions (LxWxH) 38.0 x 28.0 x 12.0"
