User manual for the Allen & Heath ME-1 Personal Mixer AH-ME-1
The user manual for the Allen & Heath ME-1 Personal Mixer AH-ME-1 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Personal Monitoring.

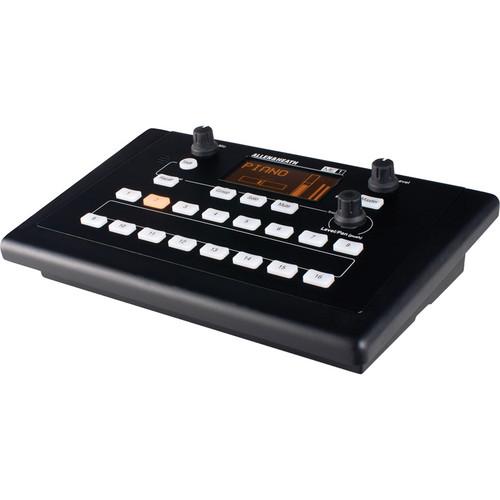

The Allen and Heath ME-1 Personal Mixer is designed to give individual musicians, performers, and presenters the freedom to control their own tailored monitor mixes for use on stage or in houses of worship, rehearsal rooms, studios, conferences, or live events.
This standalone digital personal mixer receives input from up to 40 sources via a single CAT5 cable (sold separately) from the main console (sold separately) and mixes these to a stereo and mono output to drive headphones, in-ear monitors, loudspeakers, or other monitoring devices over 3.5mm or 1/4" outputs. The mixer features a simple user interface with intuitive, clear visual feedback, and custom naming system.
This mixer is the cornerstone of the ME Personal Mixing System (sold separately) and is ready to use with the Allen & Heath iLive and GLD series Digital Mixers. It is complemented by the ME-U Hub (sold separately), which opens up the benefits of ME to users of other professional digital mixers via the Dante AVB-Ready Audio Networking Solution, EtherSound Audio Network Card, or MADI Audio Plug-In Card (all sold separately).
It also has an Aviom compatibility mode for use with Aviom Pro16 systems. You can eliminate the need to use up main console buses by grouping the 40 channels within the mixer to simplify control for each musician. You can assign as few or as many of the 16 keys as needed to control the mix.
If you own a Allen & Heath personal monitoring and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Allen & Heath ME-1 Personal Mixer AH-ME-1 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Allen & Heath ME-1 Personal Mixer AH-ME-1:
Inputs
40 Inputs (CAT5), Stereo Aux, ambient mic
Outputs
2 x stereo (Line or Headphones), mono line out
Control
Input: Level, Mute, Pan, Solo, Trim All Master: Level, Mute, 3-band EQ, Limiter Group: Level, Mute, Level/Pan for sources within a Group
Groups
16; up to 40 sources assignable
Presets
16; Store input levels, Mutes, Pans, Key assign, Names, Group sources
Configuration
Stores setup and all presets
Name
Channels, Keys, Unit, Presets, Configuration
Data Port
USB: Individual presets or config transfer, firmware update
CAT5
Audio and PoE: Link In and Link Out, locking etherCON connectors
Stereo Output
Stereo 1/4" and 3.5 mm jacks Headphones: 300 mW + 300 mW into 100 Ω load < Maximum +21 dBu
Mono Output
Balanced TRS jack Nominal 0 dBu, maximum +18 dBu
AUX Input
Stereo 3.5 mm jack Nominal -8 dBu, Maximum +10 dBu Input Impedance >10 kΩ
AD/DA Conversion
24-bit Delta/Sigma, 48 kHz
Residual Output Noise
48 kHz -95 dBu (Level down, 20 to 20 kHz)
Frequency Response
+0/-1 dB, 10 Hz to 20 kHz
Power
Mains: 100 to 240 VAC, 50 / 60 Hz In, 12 VDC 1.25 A Out Power over CAT5 Cable (PoE): 10 W (Requires 13 W from PoE hub)
The user manual for the Allen & Heath ME-1 Personal Mixer AH-ME-1 can be downloaded in .pdf
format if it did not come with your new personal monitoring, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Allen & Heath users keep a unique electronic library
for Allen & Heath personal monitorings,
where you can use our link to download the user manual for the Allen & Heath ME-1 Personal Mixer AH-ME-1.
The user manual lists all of the functions of the Allen & Heath ME-1 Personal Mixer AH-ME-1,
all the basic and advanced features and tells you how to use the personal monitoring.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Allen & Heath service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Allen & Heath ME-1 Personal Mixer AH-ME-1. User manuals are also
available on the Allen & Heath website under Pro Audio - Live Sound - Personal Monitoring.
