User manual for the Allen & Heath Qu-24 30-In/24-Out Digital Mixer AH-QU-24

The user manual for the Allen & Heath Qu-24 30-In/24-Out Digital Mixer AH-QU-24 provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

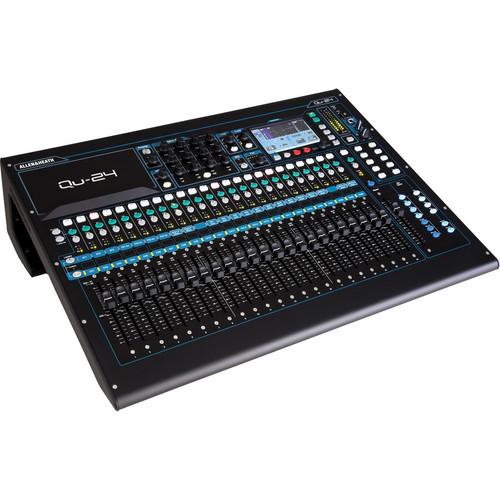

The Qu-24 30-In/24-Out Digital Mixer from Allen & Heath features 24 of Allen & Heath's AnalogiQ microphone preamps and is powered by its 5 core ARM processor to provide a variety of integrated effects and processing including channel-independent 4-band parametric EQs, compressors, delay, reverb, and more. The mixer is capable of recording audio to either your Mac or a USB hard drive in up to 48kHz/24-bit resolution, allowing you to record both the individual tracks and live mix of your shows.

The mixer is compatible with both the ME monitoring system and dSNAKE digital connectivity system from Allen & Heath. The Qu-24 can also be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network.
If you own a Allen & Heath digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Allen & Heath Qu-24 30-In/24-Out Digital Mixer AH-QU-24 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Allen & Heath Qu-24 30-In/24-Out Digital Mixer AH-QU-24Download user manual for Allen & Heath Qu-24 30-In/24-Out Digital Mixer AH-QU-24
(PDF file, 8.45 MB)
Additional parameters of the Allen & Heath Qu-24 30-In/24-Out Digital Mixer AH-QU-24:
Inputs
Mic/Line Inputs 24x Balanced combo XLR/TRS jacks, fully recallable
Input Sensitivity: -60 to +10 dBu (XLR), -50 to +20 dBu (TRS)
Analog Gain: -10 to +60 dB, 1 dB steps
Maximum Input Level: +19 dBu (XLR), +29 dBu (TRS)
Input Impedance: >5 kΩ (XLR), >10 kΩ (TRS)
THD+N, Unity Gain 0 dB: 0.0005%, -89 dBu (20 Hz to 20 kHz, direct out @ 0 dBu, 1 kHz)
THD+N, Mid Gain +30 dB: 0.001%, -83dBu 20 Hz to 20 kHz, direct out @ 0 dBu, 1 kHz)
Stereo Line Inputs ST1, ST2 Connector: Balanced, 1/4" (6.3 mm) TRS Jack, half-normalled
ST3 Connector: Unbalanced 1/8" (3.5 mm) mini jack
Input Sensitivity (ST1, ST2, ST3): +4 dBu/0 dBu, nominal
Trim: +/-24 dB
Maximum Input Level (ST1, ST2, ST3): +22 dBu/+18 dBu
Input Impedance: >7 kΩ
Outputs
Line Outputs Mix 1 to 10, GRP 1 to 4, MTX 1 to 4, LR Out: Balanced XLR
Output Impedance: <75Ω
Nominal Output: +4 dBu = 0 dB meter reading
Maximum Output Level: +22 dBu
Residual Output Noise: -90 C31 dBu (muted, 20 Hz to 20 kHz)
Stereo Output Alt Output & 2 Trk Output: Balanced 1/4" (6.3 mm) TRS jacks
Source (Alt Output/2 Trk Output): Patchable/LR post fade
Output Impedance: <75 Ω
Nominal Output: +4 dBu = 0 dB meter reading
Maximum Output Level: +22 dBu
Residual Output Noise: -91 dBu (muted, 20 Hz to 20 kHz)
AES Digital Audio Outputs 2-channel
48 kHz sampling rate
XLR Out
2.5 Vpp balanced terminated 110 Ω
dSNAKE
Inputs Remote source for Channels 1 to 24, ST1, ST2, ST3
Outputs Remote outputs for Mix 1 to 10, LR
Compatible with AudioRacks AR2412, AR84
Compatible with ME personal mixing system
System
Dynamic Range 112 dB
Frequency Response 20 Hz to 20 kHz (+0/-0.5 dB)
Headroom +18 dB
Operating Level Internal Operating Level: 0 dBu
Alignment dBFS: +18 dBu = 0 dBFS (+22 dBu @ XLR output)
Calibration Meter Calibration: 0 dB meter = -18 dBFS (+4 dBu @ XLR output)
Indicators Meter Peak Indication: -3 dBFS (+19 dBu @ XLR out), multi-point sensing
Meter Signal Indication: -48 dBFS (-26 dBu @ XLR out)
Meter Type: Fast (peak) response
Sampling Rate 48 kHz +/-100 PPM
Converters 24-bit Delta-Sigma
Latency 1.2 ms (local XLR in to XLR out)
0.7 ms (local XLR in to AES out)
Operating Temperature 32° to 95°F (0° to 35°C)
Power Mains Power: 100-240 V AC, 50/60 Hz, 120 W maximum
Controls
Faders 4" (100 mm), motorized
Touchscreen 5" TFT, 800 x 480 resolution
Softkeys 10
Mute Groups 4
Network TCP/IP Ethernet for MIDI commands and iPad app
Input Processing
Source Channels 1 to 24: Local, dSNAKE, or USB
ST1, ST2, ST3: Local, dSNAKE, or USB
Stereo Linking Odd/even input pairs
Parameters Linked: EQ, dynamics, insert, delay, assignments, sends
Link Options: Preamp, polarity, sidechains, fader, mute, pan
Polarity Normal & reverse
HPF 12 dB/octave, 20 Hz to 20 kHz
Insert Assign FX to input channels
Delay Up to 85 ms
Gate Self-key sidechain
Threshold: -72 dBu to +18 dBu/
Depth: 0 to 60 dB
Attack: 50 μs to 300 ms
Hold: 10 ms to 5 s
Release: 10 ms to 1 s
Equalizer 4-band fully parametric, 20 Hz to 20 kHz, +/-15 dB
Band 1: Selectable LF shelving (Baxandall), bell
Band 2 & 3: Bell
Band 4: Selectable HF shelving (Baxandall), bell
Bell Width: Non-constant Q, variable, 1.5 to 1/9 octave
Compressor Self-key sidechain
Threshold: -46 to 18 dBu
Ratio: 1:1 to infinity
Attack: 300 μs to 300 ms
Release: 100 ms to 1 s
Knee: Soft or Hard
Types: Peak manual, RMS manual, SlowOpto, PunchBag
Output Channel Direct Out to USB: Follow fader, follow mute (global options)
Source Select (Global): Post-preamp, pre-EQ, post-EQ, post-delay
Mix Processing
Insert Assign FX into Mix channels
Delay Up to 170 ms
Equalizer Graphic EQ: Constant 1/3 octave, 28 bands from 31 Hz to 16 kHz, +/-15 dB
Parametric EQ: 4-band fully parametric, 20 Hz to 20 kHz, +/- 15 dB
Band 1: Selectable LF shelving (Baxandall), bell
Band 2 & 3: Bell
Band 4: Selectable HF shelving (Baxandall), bell
Bell Width: Non-constant Q, variable, 1.5 to 1/9 octave
Compressor Self-key sidechain
Threshold: -46 to 18 dBu
Ratio: 1:1 to infinity
Attack: 300 μs to 300 ms
Release: 100 ms to 1 s
Knee: Soft or Hard
Types: Peak manual, RMS manual, SlowOpto, PunchBag
Effects Internal FX: 4x RackFX engines, Send>Return or Inserted
Types: Reverbs, delays, gated reverbs, ADT, chorus, symphonic chorus, phaser, flanger
4x Dedicated Stereo FX Returns: Fader, mute, routing to Mix/LR, 4-band PEQ
Audio Tools
PAFL PFL or stereo in-place AFL
0 to -24 dB trim
85 ms delay
Talkback Assignable to any mix
12 dB/octave HPF
Signal Generator Assignable to any mix
Sine, white, pink, bandpass noise
RTA 31-bands, 1/3 octave 20 Hz to 20 kHz
Follows PAFL source
General
Dimensions (WxDxH) Desk Mounted: 24.9 x 19.7 x 7.4" (632 x 500 x 186 mm)
Weight 31 lb (14 g)
Packaging Info
Package Weight 43.3 lb
Box Dimensions (LxWxH) 31.0 x 31.0 x 14.0"
The user manual for the Allen & Heath Qu-24 30-In/24-Out Digital Mixer AH-QU-24 can be downloaded in .pdf format if it did not come with your new digital mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Allen & Heath users keep a unique electronic library for Allen & Heath digital mixerss, where you can use our link to download the user manual for the Allen & Heath Qu-24 30-In/24-Out Digital Mixer AH-QU-24.
