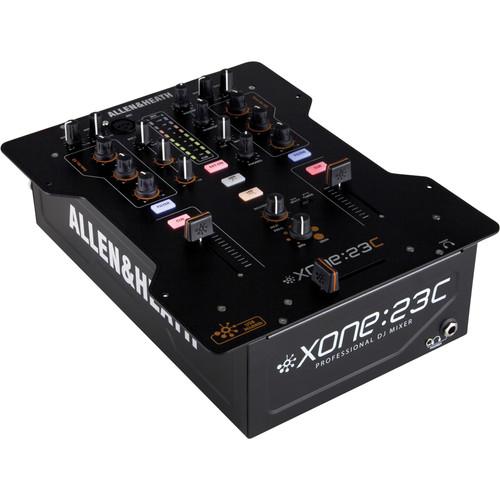

The Allen & Heath XONE:23C - DJ Mixer + Internal Soundcard is designed for professional and home DJ applications such as at a party or in the club. The mixer features an internal 4 stereo channel 96 kHz 24-bit USB sound card, an enhanced version of Allen and Heath's Xone voltage controlled filter system with resonance control, a 3-band total kill EQ per side, VCA faders, illuminated switches, styling from the flagship DB4 DJ mixer, and a user upgradeable crossfader with curve selector.

For I/O, the mixer includes two pairs of RCA line inputs and two pairs of RCA phono inputs. Though the mixer has two faders, each of the four inputs has an independent level control to enable playing up to four simultaneous sources in the mix. It also features dedicated stereo send and return channels for integrating external effects units. The front panel of the unit includes a balanced XLR input for connecting a microphone with level, high frequency, and low frequency equalizer controls.

The master outputs are on balanced XLR connectors and the mixer includes a dedicated stereo booth output, as well as a dedicated stereo record out for capturing your mixes to a portable recorder. An 1/8" and a 1/4" headphone connector enable cueing with a wide variety of DJ headphones.

For control, the front panel of the mixer features gain knobs for all four channels. The four inputs are slit into left and right sides, each with a 9-segment LED light meter, separate high, mid, and low frequency total kill EQ knobs, a VCA channel fader, illuminated cue button, and an illuminated button to engage the filter on that side. The center section includes an illuminated button for engaging the external effects send/return, an illuminated button for engaging a high pass filter, an illuminated button for engaging the low pass filter, a frequency selector knob for the filter, and a VCA resonance control knob from mild to wild.

The crossfader features a switchable curve for mixing or scratching. As an option, the user can replace the stock crossfader with Allen and Heath's high end Innofader for enhanced performance (sold separately).
If you own a Allen & Heath dj mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Allen & Heath XONE:23C - DJ Mixer Internal Soundcard XONE:23C in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Allen & Heath XONE:23C - DJ Mixer   Internal Soundcard XONE:23CDownload user manual for Allen & Heath XONE:23C - DJ Mixer Internal Soundcard XONE:23C
(PDF file, 2.43 MB)
Additional parameters of the Allen & Heath XONE:23C - DJ Mixer Internal Soundcard XONE:23C:
Specifications
    Connections
    Sound Card 4 stereo channel USB2
    Sample Rate (Audio) 96 kHz
    Bit Depth 24-bit
    I/O Input
    Phono: 4x RCA (2 pair)
    Line: 4x RCA (2 pair)
    FX Return: 2x RCA (pair)
    Mic: XLR-3M

    Output
    Main Mix: 2x balanced XLR-3M (pair)
    Monitor: 2x RCA (2 pair)
    Record: 2x RCA (pair)
    FX Send: 2x RCA (pair)
    Headphones: stereo 3.5 mm and 1/4" TRS jacks
    Impedance Input
    Phono: 47 K/330pF
    Line: 20 kΩ
    FX Return: 10 kΩ
    Mic: <2 kΩ

    Output
    Main Mix: 100 Ω
    Monitor: 100 Ω
    Record: 100 Ω
    FX Send: 100 Ω
    Headphones: 1 Ω
    Nominal Level Input
    Phono: 7 to 100 mV
    Line: -10 to +20 dBu
    FX Return: 0 to +20 dBu
    Mic: -42 to -12 dBu

    Output
    Main Mix: +4 dBu
    Monitor: -2 dBu
    Record: -2 dBu
    FX Send: -2 dBu

    Distortion: +10 dBu
    Noise: unity
    Maximum Level Output
    Main Mix: +28 dBu
    Monitor: +22 dBu
    Record: +19 dBu
    FX Send: +19 dBu
    Headphones: 200 mW RMS into 30 Ω
    Fader Shut Off: > -80 dB
    Xfade Shut Off: > -80 dB
    Distortion 0.01% THD +N
    Noise Main Mix Out (22 to 22,000 Hz): -85 dBu un-weighted
    General
    Frequency Response 10 to 50,000 Hz ± 0 dB
    Dimensions (W x D x H) 9.4 x 12.4 x 4.2" (240 x 315 x 106 mm)
    Weight 6.0 lb (2.7 kg)
    Packaging Info
    Package Weight 11.05 lb
    Box Dimensions (LxWxH) 19.291 x 13.701 x 8.74"
    The user manual for the Allen & Heath XONE:23C - DJ Mixer Internal Soundcard XONE:23C can be downloaded in .pdf format if it did not come with your new dj mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Allen & Heath users keep a unique electronic library for Allen & Heath dj mixerss, where you can use our link to download the user manual for the Allen & Heath XONE:23C - DJ Mixer Internal Soundcard XONE:23C.

    The user manual lists all of the functions of the Allen & Heath XONE:23C - DJ Mixer Internal Soundcard XONE:23C, all the basic and advanced features and tells you how to use the dj mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Allen & Heath service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Allen & Heath XONE:23C - DJ Mixer Internal Soundcard XONE:23C. User manuals are also available on the Allen & Heath website under Pro Audio - DJ Equipment - DJ Mixers.
