User manual Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX

Operating instructions and pdf manual for use - Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX User manual, User manual Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX, Allen, &, Heath, ZED60-14FX, Live, Studio, Mixer,


User manual for Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX
  • Manufacturer: Allen & Heath
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Analog Recording Mixers
  • Safety instructions
  • Startup and operation of the analog recording mixers
  • Tips for setting up your Allen & Heath
  • Settings and expert assistance
  • Contact Allen & Heath service
  • Troubleshooting
  • Warranty information
  • Price: 449 USD
We recommend checking out our discussion threads on the Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX, which address similar problems with connecting and setting up Analog Recording Mixers Allen & Heath.



User manual for the Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX

The user manual for the Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX provides necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

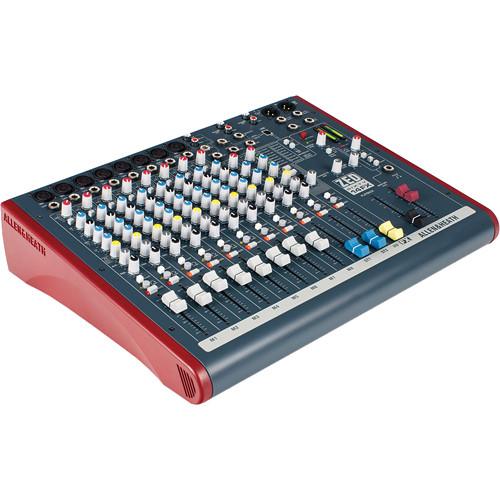

The ZED60-14FX Live and Studio Mixer from Allen & Heath is a 10-channel mixer with 16 built-in effects that is designed for an array of live and studio applications. Channels 1 through 6 have Neutrik XLR connectors for mic level signals, and 1/4" TRS inputs for balanced or unbalanced line level signals. Channels 7 and 8 also have Neutrik XLRs, but feature Class A FET Hi-Z instrument-level inputs for direct connection of electric guitars and basses. Additionally, channels 1 through 8 are all equipped with 3-band EQ and 48V phantom power.

The mixer also features two stereo inputs (ST1 & ST2) that have 1/4" TS and RCA jacks (ST1 only) for connecting line level outputs from devices such as keyboards, samplers or iPods. Each of the stereo channels features a 2-band EQ. All 10 channels can be routed to a "record" buss that can be output to a computer running DAW software via the USB port, or routed into a hardware recording device via the RCA record out jacks. Each channel also features a "listen" button, that when engaged takes the corresponding signal off the master and recording busses and sends it to the headphone buss. This can be useful in a live recording scenario for making discrete EQ adjustments to a channel before adding it to the master or record busses.

Designed with versatility in mind, the ZED60-14FX's master section is equipped with balanced XLR left and right main outputs with 1/4" inserts on each channel. These inserts can be useful for inserting outboard gear such as EQs or limiters at the end of your signal chain before the master mix is output to your speakers. Also, there is a balanced 1/4" aux output for connecting additional sound reinforcement components such as a powered stage monitor, and an FX bus out that can be used to send the FX mix to additional gear such as an external effects unit.

While you can connect an external effects unit via the FX bus out jack, the mixer also features sixteen built-in digital effects that include multiple delays, reverbs, a doubler, flanger, and chorus. The DSP engine, which uses the same effects algorithms as Allen & Heath's flagship digital consoles, is designed for low-noise and low-distortion signal processing.
If you own a Allen & Heath analog recording mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX:
Specifications
    Inputs
    Input Connections 8 x XLR mic/line
    6 x 1/4" TRS line
    2 x 1/4" TRS unbalanced Hi-Z
    2 x 1/4" TS stereo L/R input, 1 with RCA phono
    1 x stereo L/R playback in with 1/4 inch TS jacks
    1 x USB Type B (shared with output)
    Phantom Power 48V, global
    Operating Level Range -10 to -60 dBu nominal (+11 dBu max), mono channel XLR
    +10 to -40 dBu (+31 dBu max), mono channel 1/4" TRS
    0 dBu nominal (control = Off to +15 dB), stereo input 1/4" or RCA
    Equalization All Channels
    LF @ 80 Hz, +/-15 dB
    HF @ 12 kHz, +/-15 dB
    Mic/Line Channels Additional Controls
    HPF @ 100 Hz, 6 dB/octave; on/off
    Sweepable mid: 120 Hz to 4 kHz, +/-15 dB
    Outputs
    Output Connections 2 x XLR main with 1/4" TRS inserts
    1 x RCA stereo monitor
    1 x RCA stereo recording
    1 x 1/4" TRS FX
    1 x 1/4" TRS aux
    1 x 1/4" TRS stereo headphone
    1 x USB Type B (shared with input)
    Operating Level Range 0 dBu /-30 dBu; +21 dBu /-9 dBu max, L/R outputs (XLR) normal/DI out
    0 dBu nominal; +21 dBu max, aux and FX outputs (1/4")
    0 dBu nominal; +21 dBu max, record and monitor outputs (RCA)
    Performance
    Frequency Response 10 Hz to 30 kHz, +0.5/-1 dB, mic in to mix L/R out, 30 dB gain
    10 Hz to 25 kHz, +0.5/-1 dB, line in to mix L/R out, 0 dB gain
    10 Hz to 30 kHz, +0.5/-1 dB, stereo in to mix L/R out
    THD + N 0.002% - 10 dB gain, 1 kHz, +10 dBu out, mic in to mix L/R out
    0.01% - 30 dB gain, 1 kHz, line in to mix L/R out
    0.003% - 0 dB gain, 1 kHz, 0 dBu, line in to mix L/R out 0 dB gain, 1 kHz
    0.002% - 0dB gain, 1 kHz, +10 dBu, stereo in to mix L/R out
    0.015% - 0 dBu, boost out, guitar input to mix L/R out
    2% second harmonic - 0dBu, boost in, guitar input to mix L/R out
    Headroom 21 dB from nominal (0 Vu)
    14 dB USB I/O from nominal (0 Vu)
    Noise -127 dBu - mic pre EIN @ max gain, 150R input Z, 22 Hz to 22 kHz
    -93 dBu - mix L/R out, L/R faders = 0, levels min, 2 Hz to 22 kHz
    USB Audio in/out
    USB 1.1 compliant 16-bit
    Sample rate
    32, 44.1, or 48 kHz
    General
    Dimensions (W x D x H) 17.3 x 13.6 x 3.7" (440 x 346 x 95 mm)
    Weight 13.6 lb (6.2 kg)
    Packaging Info
    Package Weight 15.85 lb
    Box Dimensions (LxWxH) 20.3 x 15.8 x 7.3"
    The user manual for the Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX can be downloaded in .pdf format if it did not come with your new analog recording mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Allen & Heath users keep a unique electronic library for Allen & Heath analog recording mixerss, where you can use our link to download the user manual for the Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX.

    The user manual lists all of the functions of the Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX, all the basic and advanced features and tells you how to use the analog recording mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Allen & Heath service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Allen & Heath ZED60-14FX Live and Studio Mixer AH-ZED-60/14FX. User manuals are also available on the Allen & Heath website under Pro Audio - Recording - Analog Recording Mixers.
