User manual American Audio VMS2 Table Top DJ USB Software Controller VMS2

Operating instructions and pdf manual for use - American Audio VMS2 Table Top DJ USB Software Controller VMS2 User manual, User manual American Audio VMS2 Table Top DJ USB Software Controller VMS2, American, Audio, VMS2, Table, Top, DJ, USB, Softwa


User manual for American Audio VMS2 Table Top DJ USB Software Controller VMS2

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

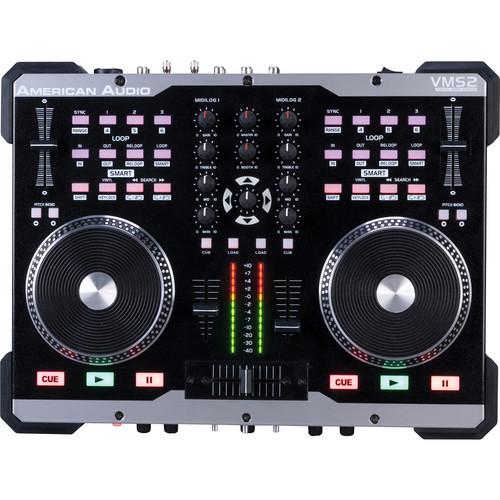

American Audio VMS2 Table Top DJ USB Software Controller VMS2
  • Manufacturer: American Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - DJ Equipment - DJ Controllers
  • Safety instructions
  • Startup and operation of the dj controllers
  • Tips for setting up your American Audio
  • Settings and expert assistance
  • Contact American Audio service
  • Troubleshooting
  • Warranty information
  • Price: 250 USD
We recommend checking out our discussion threads on the American Audio VMS2 Table Top DJ USB Software Controller VMS2, which address similar problems with connecting and setting up DJ Controllers American Audio.



User manual for the American Audio VMS2 Table Top DJ USB Software Controller VMS2

The user manual for the American Audio VMS2 Table Top DJ USB Software Controller VMS2 provides necessary instructions for the proper use of the product Pro Audio - DJ Equipment - DJ Controllers.

The American Audio VMS2 Table Top DJ USB Software Controller is a versatile value, delivering everything necessary for the professional and aspiring digital DJ. Plug the VMS2 into a laptop and establish 2-channel control over the included VDJ LE software, or any other MIDI software (must support MIDI learn).
If you own a American Audio dj controllers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American Audio VMS2 Table Top DJ USB Software Controller VMS2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for American Audio VMS2 Table Top DJ USB Software Controller VMS2Download user manual for American Audio VMS2 Table Top DJ USB Software Controller VMS2
(PDF file, 3.07 MB)
Additional parameters of the American Audio VMS2 Table Top DJ USB Software Controller VMS2:
Output Level Gain Max, EQ Flat:
NORMAL: 5 V +/-0.5 dB
LIMIT: 5 V +/-1 dB
Line Output Line & Mixed Output:
NORMAL: 5.5 V +/-0.5 dB @ 1 kHz, 0 dB
LIMIT: 5.5 V +/-1 dB @ 1 kHz, 0 dB
Headphone Output NORMAL: 2 V @ 1 kHz, -20 dB
LIMIT: 1.8 V @ 1 kHz, -20 dB
Maximum Output:
NORMAL: 2 V @ 1 kHz, 0 dB, THD = 1%
LIMIT: 1.8 V @ 1 kHz, 0 dB, THD = 1%
Channel Balance From 0 to -40 db For Mixed Out
Line:
NORMAL: within 0.5 dB @ 1 kHz, 0 dB
LIMIT: within 1 dB @ 1 kHz, 0 dB

Mixed Out:
NORMAL: within 1 dB @ 1 kHz, 0 dB
LIMIT: within 3 dB @ 1 kHz, 0 dB
Channel Seperation Line:
NORMAL: 97 dB @ 1 kHz, 0 dB
LIMIT: 85 dB @ 1 kHz, 0 dB

Mixed Out:
NORMAL: 95 dB @ 1 kHz, 0 dB (max out, EQ flat)
LIMIT: 85 dB @ 1 kHz, 0 dB (max out, EQ flat)
THD + N Line:
NORMAL: 0.025% @ 1 kHz, 0 dB
LIMIT: 0.03% @ 1 kHz, 0 dB

Mixed Out:
NORMAL: 0.025% @ 1 kHz, 0 dB (max out, EQ flat)
LIMIT: 0.03% @ 1 kHz, 0 dB (max out, EQ flat)

Phones:
NORMAL: 0.045% @ 1 kHz, 0 dB (1 V output)
LIMIT: 0.05% @ 1 kHz, 0 dB (1 V output)
Signal to Noise Ratio Line:
NORMAL: 97 dB @ 1 kHz 0 dB
LIMIT: 85 dB @ 1 kHz 0 dB

Mixed Out:
NORMAL: 97 dB @ 1 kHz, 0 dB (max out, EQ flat)
LIMIT: 85 dB @ 1 kHz, 0 dB (max out, EQ flat)
Dynamic Range Maximum Output, EQ Flat:
Line:
NORMAL: 96 dB @ 1 kHz, -60 dB
LIMIT: 85 dB @ 1 kHz, -60 dB

Mixed Out:
NORMAL: 94 dB @ 1 kHz, -60 dB
LIMIT: 85 dB @ 1 kHz, -60 dB
Frequency Response Line:
NORMAL: 10 Hz to 20 kHz, +/- 0.3 dB
LIMIT: 10 Hz to 20 kHz, +/- 1 dB

Mixed Out:
NORMAL: 10 Hz to 20 kHz, +/- 0.3 dB
LIMIT: 10 Hz to 20 kHz, +/- 1 dB
Power Supplies DC 6 V Single Voltage:
AC 100 V, 50/60 Hz (Japan)
AC 110 V, 60 Hz (Colombia)
AC 120 V, 60 Hz (U.S.A. and Canada)
AC 127 V, 60 Hz (Mexico)
AC 220 V, 50 Hz (Chile and Argentina)
AC 220 V, 60 Hz (Philippines and Korea)
AC 230 V, 50 Hz (Europe, New Zealand, South Africa, and Singapore)
AC 240 V, 50 Hz (Australia and U.K.)
Power Consumption 6 W
Operational Temperature 41° to 95°F (5° to 25°C)
Humidity Range Operating 25 to 85% RH (no condensation)
Mac OS System Requirements Mac OS X 10.5 PPC/Intel, 10.5.6 Intel, or 10.6 Intel
1.86GHz
2GB RAM
Windows System Requirements Windows XP Sp3 or Windows Vista (32-bit & 64-bit supported)
PIV 1.2GHz Computer (SSE2 CPU), AMD 64 or Greater
1024_768 SVGA Video
2 GIG RAM (Vista)
40MB Free on the Hard-Drive (Recommended 2000MB)
DirectX 9.0
Dimensions (L x W x H) 15.7 x 12 x 1.5" (399 x 300 x 40 mm)
Weight 10.9 lb (4.93 kg)
Packaging Info
Package Weight 16.05 lb
Box Dimensions (LxWxH) 19.9 x 16.5 x 8.3"
The user manual for the American Audio VMS2 Table Top DJ USB Software Controller VMS2 can be downloaded in .pdf format if it did not come with your new dj controllers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other American Audio users keep a unique electronic library for American Audio dj controllerss, where you can use our link to download the user manual for the American Audio VMS2 Table Top DJ USB Software Controller VMS2.

The user manual lists all of the functions of the American Audio VMS2 Table Top DJ USB Software Controller VMS2, all the basic and advanced features and tells you how to use the dj controllers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from American Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the American Audio VMS2 Table Top DJ USB Software Controller VMS2. User manuals are also available on the American Audio website under Pro Audio - DJ Equipment - DJ Controllers.
