User manual American Audio WM-16HH Wireless Handheld Microphone WM 16HH

Operating instructions and pdf manual for use - American Audio WM-16HH Wireless Handheld Microphone WM 16HH User manual, User manual American Audio WM-16HH Wireless Handheld Microphone WM 16HH, American, Audio, WM-16HH, Wireless, Handheld, Micropho


User manual for American Audio WM-16HH Wireless Handheld Microphone WM 16HH

American Audio WM-16HH Wireless Handheld Microphone WM 16HH
  • Manufacturer: American Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your American Audio
  • Settings and expert assistance
  • Contact American Audio service
  • Troubleshooting
  • Warranty information
  • Price: 140 USD
We recommend checking out our discussion threads on the American Audio WM-16HH Wireless Handheld Microphone WM 16HH, which address similar problems with connecting and setting up Wireless Systems American Audio.



User manual for the American Audio WM-16HH Wireless Handheld Microphone WM 16HH

The user manual for the American Audio WM-16HH Wireless Handheld Microphone WM 16HH provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

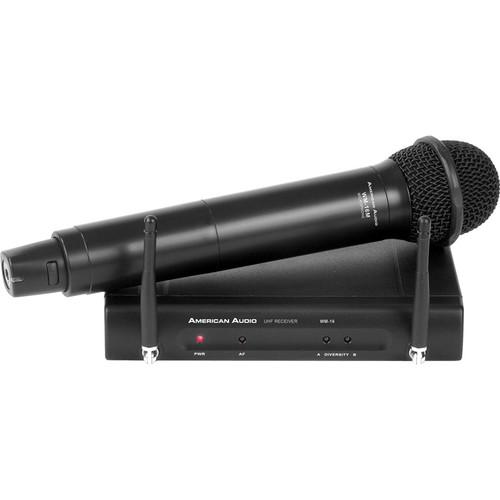

The American Audio WM-16HH Wireless Handheld Microphone System delivers 16 user selectable UHF frequencies, switchable diversity reception for minimal drop-out, balanced and unbalanced outputs. The WM-16HH is an affordable solution for wireless microphone operation in halls, sermons, auditoriums, conferences, DJ applications, karaoke and more. The system ships with the battery powered handheld microphone transmitter, WM-16 receiver and precision screwdriver for internal frequency adjustments.
If you own a American Audio wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American Audio WM-16HH Wireless Handheld Microphone WM 16HH in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for American Audio WM-16HH Wireless Handheld Microphone WM 16HHDownload user manual for American Audio WM-16HH Wireless Handheld Microphone WM 16HH
(PDF file, 1.02 MB)
Additional parameters of the American Audio WM-16HH Wireless Handheld Microphone WM 16HH:
Specifications
    System
    Type of System 16 Channel UHF Wireless Microphone
    Signal-to-Noise Ratio > 94dB, at 48KHz deviation and 60dB μ V antenna input
    # Of Channels 16 UHF
    # Of Simultaneous Systems Not Specified By Manufacturer
    Receiver
    Type of Receiver UHF Diversity Receiver
    Type of Outputs Balanced XLR
    Unbalanced 1/4" Phone
    Headphone Monitoring No
    Power Requirements DC 12V - 18V
    Current Consumption: 80mA ± 10mA
    Display RF and Level LEDs
    Antenna Type BNC Type x2
    Power DC 12V - 18V
    Dimensions 6.7 x 4.17 x 1.26" (17.01 x 10.59 x 3.20cm)
    Weight Mic & Receiver: 0.95 lbs / 0.43kg
    Transmitter
    Type of Transmitter Handheld
    Polar Pattern Cardioid
    Interchangeable Mic Heads Not Applicable
    Battery Type/Approx. Life DC3V (2 x 1.5V AA batteries) or DC2.4V (2 x 1.2V AA rechargeable batteries)
    Frequency Stability +0.005%
    THD & Noise < 1% (at 1kHz)
    Current Consumption 110mA at 3V
    Packaging Info
    Package Weight 2.5 lb
    Box Dimensions (LxWxH) 13.0 x 11.75 x 3.0"
    The user manual for the American Audio WM-16HH Wireless Handheld Microphone WM 16HH can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other American Audio users keep a unique electronic library for American Audio wireless systemss, where you can use our link to download the user manual for the American Audio WM-16HH Wireless Handheld Microphone WM 16HH.

    The user manual lists all of the functions of the American Audio WM-16HH Wireless Handheld Microphone WM 16HH, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from American Audio service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the American Audio WM-16HH Wireless Handheld Microphone WM 16HH. User manuals are also available on the American Audio website under Pro Audio - Live Sound - Wireless Systems.
