User manual American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM

Operating instructions and pdf manual for use - American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM User manual, User manual American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM, American, DJ, Dotz, TPar, System, with, Ligh


User manual for American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM
  • Manufacturer: American DJ
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - DJ & Effect Lights
  • Safety instructions
  • Startup and operation of the dj & effect lights
  • Tips for setting up your American DJ
  • Settings and expert assistance
  • Contact American DJ service
  • Troubleshooting
  • Warranty information
  • Price: 400 USD
We recommend checking out our discussion threads on the American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM, which address similar problems with connecting and setting up DJ & Effect Lights American DJ.



User manual for the American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM

The user manual for the American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - DJ & Effect Lights.

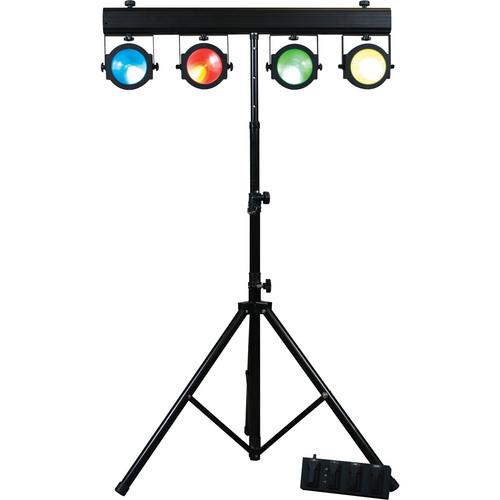

The American DJ Dotz TPar System is a mobile solution designed for lighting live performances such as DJing at a party, concert, or special event. The system consists of four chip-on-board LED par wash fixtures, one foot controller, one lighting stand, one RF remote control, one stand bag, and a soft case for the lighting system.

Each fixture on the T-Bar systems features a 30-watt chip on board RGB LED for wide saturated color washes, smooth RGB color mixing, a 90° beam angle which can be changed to 25° with the included lens kit, and an expected battery life of approximately 50,000 hours. For controls, the unit features 4 operation modes including auto run and sound active using the integrated microphone, as well as 14 built-in programs with controllable dim curves such as standard, stage, TV, architectural, and theater with strobing and 0 to 100% dimming. It also features DMX-512 control capability via XLR input and output jacks. Two smaller lighting fixtures can be attached to the top and be plugged directly into the T-bar.
If you own a American DJ dj & effect lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEMDownload user manual for American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM
(PDF file, 1.41 MB)
Additional parameters of the American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM:
Specifications
    Modes of Operation Sound Active, Auto Run, Built in Programs, DMX-512
    Programs 14
    DMX 5 Channel modes: 3, 5, 9, 12, and 18 channels
    1x XLR DMX In
    1x XLR DMX out
    Display Digital DMX Display with 4-button menu for easy navigation
    Dimming 0 to 100%
    5 curves: Standard, Stage, TV, Architecture, & Theater
    Beam Angle 90°
    Includes 25° angle lens kit
    Bulb Life Approximately 50,000 Hours
    Remote Control Up to 25 meters
    Light Source 4x fixtures
    1x 30 W TRI Color COB LED per fixture
    Lux At 3 M: 1345
    Power Draw 144 W Max
    Plugs 2x power plugs (120 V = Edison or 230 V - Shuko)
    Power Requirement 100 to 240 VAC 50/60 Hz (IEC input)
    Dimensions 39.5 x 12.75 x 3.25" (100 x 320 x 82.0 mm)
    Weight 35 lb (16 kg)
    Packaging Info
    Package Weight 45.85 lb
    Box Dimensions (LxWxH) 48.0 x 21.0 x 7.5"
    The user manual for the American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM can be downloaded in .pdf format if it did not come with your new dj & effect lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other American DJ users keep a unique electronic library for American DJ dj & effect lightss, where you can use our link to download the user manual for the American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM.

    The user manual lists all of the functions of the American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM, all the basic and advanced features and tells you how to use the dj & effect lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from American DJ service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the American DJ Dotz TPar System with Light, Stand, DOTZ TPAR SYSTEM. User manuals are also available on the American DJ website under Lighting & Studio - Continuous Lighting - DJ & Effect Lights.
