User manual for the Analog Way Quattro Value Switcher with RKD500-T Remote P1-QXE421

The user manual for the Analog Way Quattro Value Switcher with RKD500-T Remote P1-QXE421 provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Production Switchers.

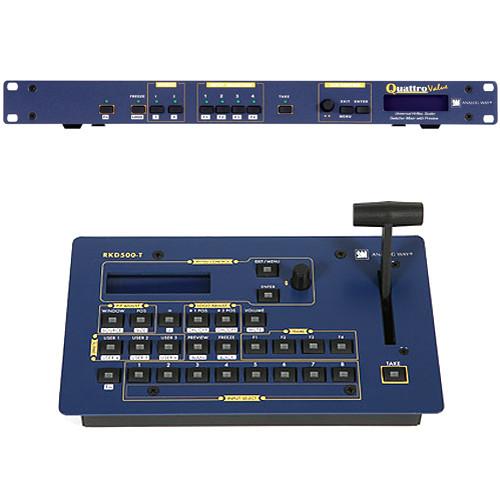

The Analog Way Quattro Value Switcher with RKD500-T Remote Keypad is a high-resolution digital and analog, computer & video scaler seamless switcher with a compact design, suitable for conference rooms, houses of worship and large screen projections. The unit features 4 universal inputs with 1 DVI, and 3 outputs - 1 analog, 1 DVI for the main and 1 analog for the preview. Each of the inputs is attached with a stereo audio line, which can either follow or break away from the video image.
If you own a Analog Way production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Analog Way Quattro Value Switcher with RKD500-T Remote P1-QXE421 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Analog Way Quattro Value Switcher with RKD500-T Remote P1-QXE421Download user manual for Analog Way Quattro Value Switcher with RKD500-T Remote P1-QXE421
(PDF file, 5.11 MB)
Additional parameters of the Analog Way Quattro Value Switcher with RKD500-T Remote P1-QXE421:
Switcher
Interfaces 4 Universal Inputs

Composite Video:
  • NTSC = 15.735 kHz/60 Hz
  • PAL/SECAM = 15.625 kHz/50Hz

    S.Video (Y/C):
  • NTSC = 15.735 kHz/60 Hz
  • PAL/SECAM = 15.625 kHz/50Hz

    Component (YUV):
  • 15.625 kHz/50 Hz - 625L

  • 15.735 kHz/60 Hz - 525L

  • RGB/S (TTL or 0.3V Analog), RGsB (SOG: 0.3V Analog), 15.625 kHz/50 Hz - 625L, 15.735 kHz/ 60 Hz - 525L

    HDTV:
  • Component (HD YUV 2/3 Level Sync.) 1080i/60-50Hz, 1080p, 720p/60-50Hz, 480p/60Hz

  • Computer (RGB HV, RGB/S and RGsB): PC, Mac, Workstation • Automatic Sync. & centering. Resolution from 640x480 to 1600x1200 (up to 110kHz)

    DVI:
  • Digital computer up to 1600x1200/60Hz and 1920x1200/60Hz, RB(1) (Fpx: 165MHz max)

    Audio Inputs

    4 Stereo Inputs:
  • 1 balanced audio inputs
  • 3 unbalanced audio inputs
  • Vi = + 18 dBu max
  • Zi = 20 kOhms unbalanced
  • Zi = 40 kOhms balanced
  • Gain: adjustable

    Main Display Output
  • 1x HD15 F connector RGB HV, RGB/S or RGsB selectable (H&V separated, Sync. Composite or SOG),RGB=0.7Vp/p (75 Ohms)

  • 1 x DVI-D on DVI-I connector

  • Resolution: 4/3 & 5/4 = SVGA, XGA, SXGA+, UXGA, 16/9 & 16/10 = WVGA, WSVGA, WXGA, WSXGA, WSXGA+, WXGA, 1080p

  • Rate: Internal 50, 60, 72 & 75 Hz and Follow: depending on resolution

    Preview Display Output

  • 1 x RGB HV separated Sync - RGB = 0.7V p/p (75 Ohms), resolution: XGA, Rate: Internal 60Hz

  • G = 0db nominal, with master volume

    main Audio Output

  • Stereo output (balanced & unbalanced)
  • Vo = + 18 dBu max - Zo = 300 Ohms (unbalanced)
  • Vo = + 24 dBu max - Zo = 600 Ohms (balanced)
  • G = 0dB nominal, with volume

    PreList Audio Output

  • Stereo output unbalanced
  • Vo = + 18 dBu max

    User Control and Connectors - Front Panel

  • Selection of inputs 1 to 4

  • Programmable effect keys

  • Freeze, Take

  • LCD screen & control buttons for menu: Test patterns, proc. image adjust., input format selection, output format display, output format & sync., audio input level and output, volume adjustments, position & size adjustments, front panel control lockout

    User Controls and Connectors - Rear Panel

    Input Connectors:
  • Input #1: DVI-I
  • Inputs #2 to #3: HD 15F
  • Input #4: HD 15F + 2 BNC
  • Audio inputs 2 to 4: on 5-pin screw terminal
  • Audio input 1: on 3.5 stereo jack

    Output Connectors:
  • Main Video: DVI-I + HD 15F
  • Preview Video: HD 15F
  • Main Audio: 5-pin screw terminal
  • Prelist Audio: 3.5 Stereo Jack

    Other:
  • 1 x DB9F with 2 RS232 ports
  • 1 x 3.5 Jack : +12Vdc trigger
  • 1 x RJ45: Ethernet Port 10/100BT
  • Power Requirements 100-250VAC
    Power Consumption 50W
    Dimensions (WxHxD) 19 x 1.7 x 10.4" (482 x 44 x 265mm) - 1 RU
    Weight 7.7 lbs (3.5kg)
    Keypad
    Power Requirements 9VDC
    Operating Temperature Maximum: 122°F (50°C)
    Dimensions (WxHxD) 8.9 x 4 x 5.1" (220 x 102 x 130mm) - 3 RU high, 1/2 RU wide
    Weight 2.2 lbs (1kg)
    Packaging Info
    Package Weight 18.0 lb
    Box Dimensions (LxWxH) 23.6 x 13.5 x 11.7"
    The user manual for the Analog Way Quattro Value Switcher with RKD500-T Remote P1-QXE421 can be downloaded in .pdf format if it did not come with your new production switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Analog Way users keep a unique electronic library for Analog Way production switcherss, where you can use our link to download the user manual for the Analog Way Quattro Value Switcher with RKD500-T Remote P1-QXE421.

    The user manual lists all of the functions of the Analog Way Quattro Value Switcher with RKD500-T Remote P1-QXE421, all the basic and advanced features and tells you how to use the production switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Analog Way service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Analog Way Quattro Value Switcher with RKD500-T Remote P1-QXE421. User manuals are also available on the Analog Way website under Professional Video - Studio & EFP Equipment - Production Switchers.
