User manual Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB

Operating instructions and pdf manual for use - Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB User manual, User manual Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB, Anchor, Audio, AL-WB, Wireless, Bodypack, Receiver, AL-WB,


User manual for Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB

Overall rating 1.0
Overall Rating: 1.0

20% of respondents would recommend this to a friend.
Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB
  • Manufacturer: Anchor Audio
  • Basic description and contents of package
  • Product classification: A/V Presentation - Assistive Listening - Components & Accessories
  • Safety instructions
  • Startup and operation of the components & accessories
  • Tips for setting up your Anchor Audio
  • Settings and expert assistance
  • Contact Anchor Audio service
  • Troubleshooting
  • Warranty information
  • Price: 124 USD
We recommend checking out our discussion threads on the Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB, which address similar problems with connecting and setting up Components & Accessories Anchor Audio.



User manual for the Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB

The user manual for the Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB provides necessary instructions for the proper use of the product A/V Presentation - Assistive Listening - Components & Accessories.

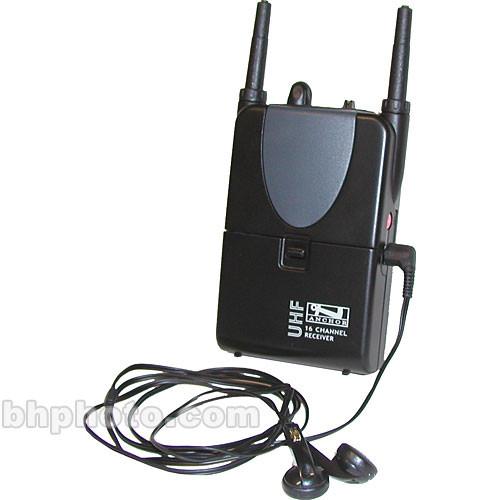

The AL-WB from Anchor Audio is a wireless bodypack receiver for use with the AL-TX base-station transmitter. Combination of these units allows a full wireless assistive listening experience in a theater, auditorium, lecture hall, house of worship, or other similar venue. An unlimited number of receivers may be used with the transmitter, so audience size is no issue.

The receiver is a slim and durable bodypack with two built-in antennas and an easily-accessible battery compartment, which holds two "AA" batteries. It has a range of up to 300' line of sight with the AL-TX transmitter. A pair of stereo earbud headphones are included for listening right out of the box, but any headphones with a 3.5mm plug may be used with the receiver.
If you own a Anchor Audio components & accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WBDownload user manual for Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB
(PDF file, 0.31 MB)
Additional parameters of the Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB:
System Range Up to 300' (91 m) (Line of Sight)
Frequency Range 682 - 698MHz
Oscillator PLL Synthesized
Receiving Mode Single Channel Diversity
Frequency Stability +/-0.005%
Receiving Sensitivity 80dB Over S/N Ratio @ 5 dBuV
Image and Spurious Rejection 80dB Minimum
Selectivity Greater than 50dB
Modulation Mode FM
IF Frequency 1st: 56MHz
2nd: 10.7MHz
Dynamic Range Greater than 96dB
Signal to Noise Ratio Greater than 94dB @ 15kHz Deviation and 60 dBuV
Frequency Response (Audio) Headphone: 100Hz - 10kHz (+/-3dB)
Line: 40Hz - 15kHz (+/-3dB)
Total Harmonic Distortion (THD) Less than 1%
Power Supply 3VDC (2 x AA Batteries)
Audio Output Headphone Stereo: 20mW
Line Stereo: -10dB
Current Consumption 130mA (+/-10mA)
Dimensions (WxHxD) 3 x 4.2 x 1.1" (76 x 106 x 29 mm)
Packaging Info
Package Weight 0.9 lb
Box Dimensions (LxWxH) 10.315 x 6.614 x 1.811"
The user manual for the Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB can be downloaded in .pdf format if it did not come with your new components & accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Anchor Audio users keep a unique electronic library for Anchor Audio components & accessoriess, where you can use our link to download the user manual for the Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB.

The user manual lists all of the functions of the Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB, all the basic and advanced features and tells you how to use the components & accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Anchor Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Anchor Audio AL-WB - Wireless Bodypack Receiver AL-WB. User manuals are also available on the Anchor Audio website under A/V Presentation - Assistive Listening - Components & Accessories.
