User manual for the Antelope Orion 32 Multi-Channel AD/DA Converter ORION 32

The user manual for the Antelope Orion 32 Multi-Channel AD/DA Converter ORION 32 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - AD/DA Converters.

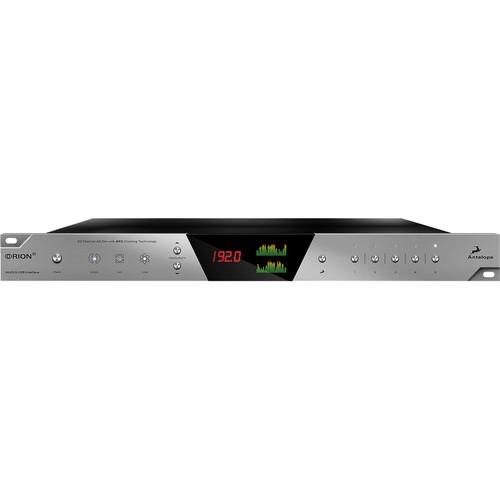

The Orion 32 Multi-Channel AD/DA Converter from Antelope Audio operates as the central hub for an audio recording and mixing system by offering 32 channels of AD/DA conversion. It also functions as the master clock with its 64-bit Acoustically Focused Clocking technology, oven-controlled oscillator, and four word clock outputs. It allows up to 32 channels of 192 kHz audio to stream in and out via its USB 2.0 interface, and can be connected to a PC, Mac, or an iPad running USB-enabled audio applications. The Orion 32 also features fiber-optic MADI inputs and outputs, for passing up to 32 channels of 96 kHz audio to external MADI gear. Two ADAT input ports and two ADAT output ports supply up to 16 channels of 48 kHz audio, and 32 channels of analog audio inputs and outputs are supplied on Tascam-compatible D-SUB connectors, all in a single rack space design.
If you own a Antelope ad/da converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Antelope Orion 32 Multi-Channel AD/DA Converter ORION 32 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Antelope Orion 32 Multi-Channel AD/DA Converter ORION 32Download user manual for Antelope Orion 32 Multi-Channel AD/DA Converter ORION 32
(PDF file, 2.48 MB)
Additional parameters of the Antelope Orion 32 Multi-Channel AD/DA Converter ORION 32:
Inputs Analog:
4x D-SUB 25 (32 channels)

Digital:
1x MADI
2x ADAT
1x S/PDIF
Outputs Analog:
4x D-SUB 25 (32 channels)

Digital:
1x MADI
2x ADAT
1x S/PDIF
Connectivity 1x USB 2.0, type B
Bandwidth USB: Up to 480 Mb/s, 32 channels at 192 kHz on PC, 24 channels at 192 kHz on Mac
MADI: Up to 64 channels at 48 kHz, 32 channels at 96 kHz, 16 channels at 192 kHz
ADAT: Up to 16 channels at 48 kHz, 8 channels at 96 kHz, 4 channels at 192 kHz
S/PDIF: Up to 2 channels at 192 kHz
Word Clock 1x 10M atomic clock input @ 75 Ohms 3Vpp on BNC 44.1 to 192 kHz
1x Word clock input @ 75 Ohms 3Vpp on BNC 44.1 to 192 kHz
4x Word clock outputs @ 75 Ohms 3Vpp on BNC 44.1 to 192 kHz square wave signal
D/A Converter Dynamic Range: 118 dB
THD+N: -98 dB
A/D Converter Dynamic Range: 118 dB
THD+N: -105 dB
Clock Clocking System: 4th Generation Acoustically Focused Clocking, 64-bit DDS, Oven Controlled Crystal Oscillator

Clocking Stability: <+/-0.02 ppm, oven controlled at 148.1°F / 64.5°C

Clock Aging: < 1 ppm per year

Clock Calibration: <+/-0.001 ppm

Atomic Clock Input: 10 MHz @ 1Vpp, BNC
Sample Rates 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
Operating Temperature 32 to 122°F (0 to 50°C)
Power Supply AC universal input 95 to 245VAC
20 W max consumption
Dimensions (W x H x D) 19 x 1.75 x 8.66" (483 x 44 x 220 mm)
Weight 6.6 lb (3 kg)
Packaging Info
Package Weight 11.3 lb
Box Dimensions (LxWxH) 25.3 x 13.7 x 4.3"
The user manual for the Antelope Orion 32 Multi-Channel AD/DA Converter ORION 32 can be downloaded in .pdf format if it did not come with your new ad/da converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Antelope users keep a unique electronic library for Antelope ad/da converterss, where you can use our link to download the user manual for the Antelope Orion 32 Multi-Channel AD/DA Converter ORION 32.

The user manual lists all of the functions of the Antelope Orion 32 Multi-Channel AD/DA Converter ORION 32, all the basic and advanced features and tells you how to use the ad/da converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Antelope service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Antelope Orion 32 Multi-Channel AD/DA Converter ORION 32. User manuals are also available on the Antelope website under Pro Audio - Computer Audio - AD/DA Converters.
