User manual APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500

Operating instructions and pdf manual for use - APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500 User manual, User manual APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500, APC, Back-UPS, CS, 500, 6-Outlet, Backup, Surge,


User manual for APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500
  • Manufacturer: APC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Power - UPS Backup
  • Safety instructions
  • Startup and operation of the ups backup
  • Tips for setting up your APC
  • Settings and expert assistance
  • Contact APC service
  • Troubleshooting
  • Warranty information
  • Price: 115 USD

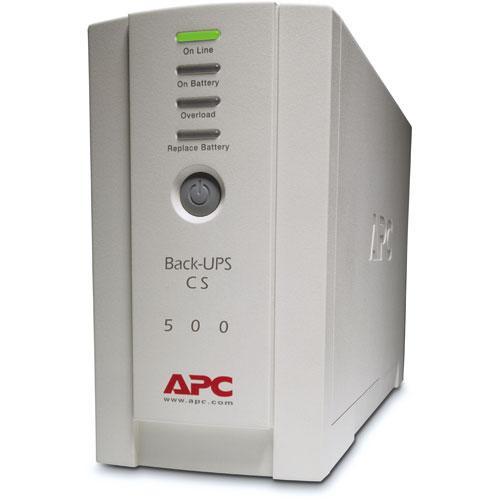

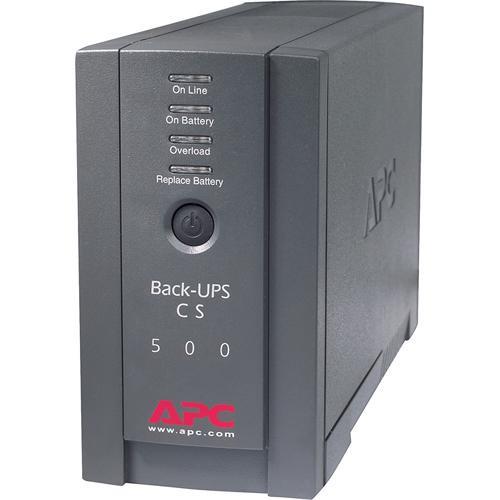

APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500 APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500
Click to enlarge image

We recommend checking out our discussion threads on the APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500, which address similar problems with connecting and setting up UPS Backup APC.



User manual for the APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500

The user manual for the APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500 provides necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.

The Back-UPS 500 6 Outlet Battery Backup and Surge Protection (120V) from APC provides professional power protection and battery backup for computer systems. Safe system shutdown and advanced power management capabilities keep systems and data safe via serial or USB connection, and built-in phone/fax/modem (DSL-compatible) connections protect systems from surges traveling on data lines.

The UPS features six outlets, three of which provide battery backup, and another three which are surge-protected. Its battery provides 13.9 minutes of run time at half-load capacity. APC offers guaranteed protection from surges and spikes with a lifetime, $100,000 Equipment Protection Policy.
If you own a APC ups backup and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500Download user manual for APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500
(PDF file, 0.13 MB)
Additional parameters of the APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500:
Specifications
    Output Output Power Capacity: 300 Watts / 500 VA
    Max Configurable Power: 300 Watts / 500 VA
    Nominal Output Voltage: 120V
    Topology: Standby
    Output Connections: 3 x NEMA 5-15R (Battery Backup), 3 x NEMA 5-15R (Surge Protection)
    Input Nominal Input Voltage: 120V
    Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
    Input Connections: NEMA 5-15P
    Cord Length: 6 feet / 1.83 meters
    Input voltage range for main operations: 98 - 140V
    Surge Energy Rating Surge energy rating: 480 Joules
    Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
    Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-11 connector
    Battery Type: Maintenance-free sealed lead-acid battery with leakproof suspended electrolyte
    Replacement Battery Cartridge: RBC2
    Typical Backup Runtime Half Load: 13.9 minutes / 150W
    Full Load: 2.4 minutes / 300W
    Audible Alarm Alarm when on battery, distinctive low-battery alarm, configurable delays
    Conformance Regulatory Approvals: FCC Part 15 Class B,Industry Canada,UL 1778,cUL Listed
    Equipment protection policy Lifetime : $100000
    Environmental Compliance RoHS,REACH: Contains No SVHCs
    Compatibility Mac OS X, Windows 2000, Windows 98, Windows Me, Windows XP
    Environmental Requirements Operating
    Temperature: 32-104°F / 0-40°C
    Humidity: 0-95%
    Altitude: 0-10,000' / 0-3000 m

    Storage
    Temperature: 5-113°F / -15-45°C
    Humidity: 0-95%
    Altitude: 0-50,000' / 0-15,000 m
    Dimensions (WxHxD) 3.6 x 6.5 x 11.2" / 9.1 x 16.5 x 28.4cm
    Weight 13.8 lb / 6.3kg
    Packaging Info
    Package Weight 13.5 lb
    Box Dimensions (LxWxH) 14.0 x 9.0 x 7.0"
    The user manual for the APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500 can be downloaded in .pdf format if it did not come with your new ups backup, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other APC users keep a unique electronic library for APC ups backups, where you can use our link to download the user manual for the APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500.

    The user manual lists all of the functions of the APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500, all the basic and advanced features and tells you how to use the ups backup. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from APC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, BK500. User manuals are also available on the APC website under Computers & Solutions - Power - UPS Backup.
