User manual APC J35B A/V Power Conditioner with Battery Backup and AVR J35B

Operating instructions and pdf manual for use - APC J35B A/V Power Conditioner with Battery Backup and AVR J35B User manual, User manual APC J35B A/V Power Conditioner with Battery Backup and AVR J35B, APC, J35B, A/V, Power, Conditioner, with, Batt


User manual for APC J35B A/V Power Conditioner with Battery Backup and AVR J35B

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
APC J35B A/V Power Conditioner with Battery Backup and AVR J35B
  • Manufacturer: APC
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - General Accessories - Power Conditioners
  • Safety instructions
  • Startup and operation of the power conditioners
  • Tips for setting up your APC
  • Settings and expert assistance
  • Contact APC service
  • Troubleshooting
  • Warranty information
  • Price: 344 USD

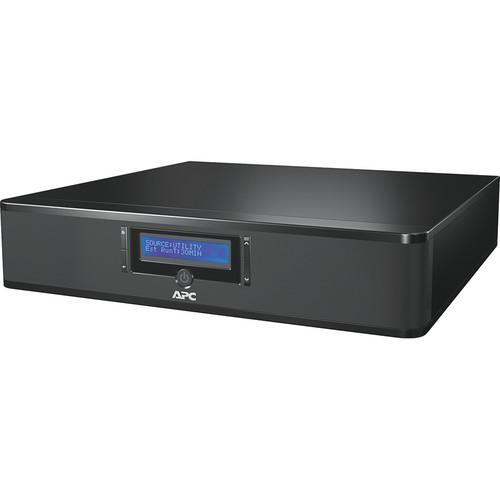

APC J35B A/V Power Conditioner with Battery Backup and AVR J35B APC J35B A/V Power Conditioner with Battery Backup and AVR J35B
Click to enlarge image

We recommend checking out our discussion threads on the APC J35B A/V Power Conditioner with Battery Backup and AVR J35B, which address similar problems with connecting and setting up Power Conditioners APC.



User manual for the APC J35B A/V Power Conditioner with Battery Backup and AVR J35B

The user manual for the APC J35B A/V Power Conditioner with Battery Backup and AVR J35B provides necessary instructions for the proper use of the product TVs & Entertainment - General Accessories - Power Conditioners.

The black J35B A/V Power Conditioner with Battery Backup and AVR helps protect audio/video systems from power spikes and surges. Its isolated power filters are designed to eliminate electromagnetic and RF interference. It has noise filter banks, which reduce electromagnetic interference to help ensure great picture and sound quality. The power conditioner has six battery backup outlets and two outlets that only receive surge protection. It features a building wiring fault indicator LED, which will let you know of any problems with your building's internal wiring. The J35B also provides clean and safe power to connected equipment in the event of a power outage.
If you own a APC power conditioners and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the APC J35B A/V Power Conditioner with Battery Backup and AVR J35B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for APC J35B A/V Power Conditioner with Battery Backup and AVR J35BDownload user manual for APC J35B A/V Power Conditioner with Battery Backup and AVR J35B
(PDF file, 14.07 MB)
Additional parameters of the APC J35B A/V Power Conditioner with Battery Backup and AVR J35B:
Specifications
    Output
    Output Power Capacity 865 W/1500 VA
    Maximum Configurable Power 865 W/0 VA
    Nominal Output Voltage 120 V
    Output Frequency (Sync to Mains) 50/60 Hz ±3 Hz
    Waveform Type Stepped approximation to a sinewave
    Connectors 6 x Battery backup outlets
    2 x Surge protection only outlets
    1 x Coaxial in
    1 x Coaxial out
    1 x Telephone line in for phone, DVR, satellite, or DSL
    1 x Telephone line out for phone, DVR, satellite, or DSL
    1 x USB Type-B for optional PowerChute software
    Input
    Nominal Input Voltage 120 V
    Input Frequency 50/60 Hz ±3 Hz (auto sensing)
    Input Voltage Range 98 to 132 V
    Batteries & Runtime
    Battery Type Maintenance-free, leak-proof, sealed lead-acid battery with suspended electrolyte
    Typical Battery Life 3 to 6 years, a shorter period if subjected to frequent outages or elevated temperatures
    Included Battery Modules 1
    Typical Recharge Time 16 Hours
    RBC Quantity 1
    Surge Protection and Filtering
    Surge Energy Rating 345 Joules
    Environmental
    Operating Environment Temperature: 32 to 104°F (0 to 40°C)
    Relative Humidity: 0 to 95%
    Elevation: 0.0 to 10,000.0' (0.0 to 3000.0 m)
    Storage Environment Temperature: 5 to 104°F (-15 to 40°C)
    Relative Humidity: 0 to 95%
    Elevation: 0.0 to 10,000.0' (0.0 to 3000.0 m)
    Audible Noise 45 dBA
    General
    Regulatory Approvals California (CEC) Battery Charger, ENERGY STAR (USA), FCC Part 15 Class B, UL 1778
    Equipment Protection Lifetime: $350,000
    RoHS Compliant Yes
    REACH Contains No SVHCs
    Number of Outlet Receptacles 8 (6 battery backup, 2 surge only)
    Physical
    Power Cord 8.00' (2.43 m) right angle NEMA 5-15 plug
    Dimensions 3.84 x 17.00 x 16.00" (9.70 x 43.10 x 40.60 cm)
    Weight 25.74 lb (11.70 kg)
    Packaging Info
    Package Weight 37.5 lb
    Box Dimensions (LxWxH) 22.0 x 21.0 x 8.0"
    The user manual for the APC J35B A/V Power Conditioner with Battery Backup and AVR J35B can be downloaded in .pdf format if it did not come with your new power conditioners, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other APC users keep a unique electronic library for APC power conditionerss, where you can use our link to download the user manual for the APC J35B A/V Power Conditioner with Battery Backup and AVR J35B.

    The user manual lists all of the functions of the APC J35B A/V Power Conditioner with Battery Backup and AVR J35B, all the basic and advanced features and tells you how to use the power conditioners. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from APC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the APC J35B A/V Power Conditioner with Battery Backup and AVR J35B. User manuals are also available on the APC website under TVs & Entertainment - General Accessories - Power Conditioners.
