User manual APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P

Operating instructions and pdf manual for use - APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P User manual, User manual APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P, APC, Symmetra, LX, 8kVA, Scalable, to, 16kVA, N, 1, Tower,

User manual for APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P

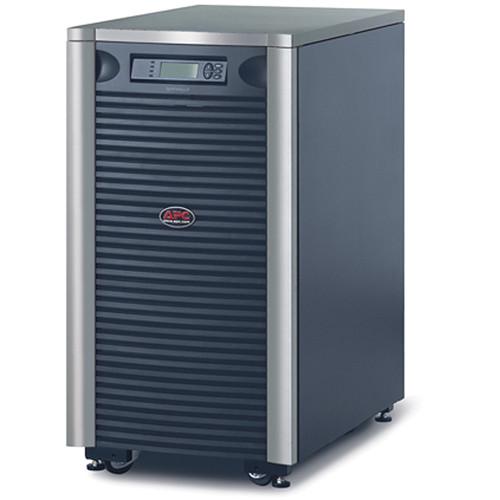

APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P
  • Manufacturer: APC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Power - UPS Backup
  • Safety instructions
  • Startup and operation of the ups backup
  • Tips for setting up your APC
  • Settings and expert assistance
  • Contact APC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P, which address similar problems with connecting and setting up UPS Backup APC.


User manual for the APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P

The user manual for the APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P provides necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.

The Symmetra LX 8kVA Scalable to 16kVA N+1 Tower from APC provides a continuous supply of power to connected devices in the event of an AC power loss. It also provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules. The UPS provides high availability through redundancy by allowing configuration with one more power module than necessary, to support the connected load.
If you own a APC ups backup and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P:
Specifications
    Output
    Output Power Capacity 6400 W / 8000 VA
    Maximum Configurable Power 12.8 kW / 16 kVA
    Nominal Output Voltage 120 V, 208 V

    Configurable for 120/208 V or 120/240 V output voltage
    Output Voltage Distortion Less than 5% at full load
    Output Frequency Sync to Mains: 47 - 63 Hz
    Other Output Voltages 240 V
    Crest Factor Up to 5:1
    Topology Double conversion online
    Waveform Type Sine wave
    Output Connections 1 x Hard wire 4-wire (2PH + N + G)
    Bypass Internal bypass (automatic and manual)
    Input
    Nominal Input Voltage 208 V
    Input Frequency 45 - 65 Hz (auto sensing)
    Input Connections Hard wire 4-wire (2PH + N + G)
    Input Voltage Range for Main Operations: 96 - 138 V (line to neutral)
    Other Input Voltages 240 V
    Total Harmonic Distortion Less than 7% for full load
    Batteries and Runtime
    Battery Type Maintenance-free sealed lead-acid battery with suspended electrolyte (leak-proof)

    Contains lithium coin cell

    Battery Modules 2 (included)
    Battery Modules 2 (available)
    Recharge Time 3 hours (typical)
    Replacement Battery SYBT5
    Extended Run Options APC Symmetra LX 8kVA scalable to 16 kVA N+1, tower 208/240 V
    Communications & Management
    Interface Ports DB-9 RS-232, smart-slot
    SmartSlot Interface Quantity 1
    Pre-Installed SmartSlot Cards AP9631
    Control Panel Multi-function LCD status and control console
    Alarm Audible and visible alarms prioritized by severity
    Audible noise at 1 meter from surface of unit: 68 dBA
    Emergency Power Off Yes
    General
    Temperature Operating: 32 to 104°F (0 to 40°C)
    Storage: 5 to 113°F (-15 to 45°C)
    Elevation Operating: 0 to 9842' (0 to 3,000 m)
    Storage: 0 to 14763' (0 to 4,500 m)
    Relative Humidity Operating: 0 to 95%
    Storage: 0 to 95%
    Online Thermal Dissipation 4995.00 BTU/h
    Regulatory Approvals CSA, FCC Part 15 Class A, UL 1778
    RoHS
    REACH: Contains no SVHCs
    Battery directive compliant
    Dimensions (W x H x D) 19.0 x 36.9 x 28.6" (48.3 x 93.7 x 72.6 cm)
    Weight 484.0 lb (219.6 kg)
    Packaging Info
    Package Weight 521.0 lb
    Box Dimensions (LxWxH) 46.5 x 39.25 x 23.6"
    The user manual for the APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P can be downloaded in .pdf format if it did not come with your new ups backup, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other APC users keep a unique electronic library for APC ups backups, where you can use our link to download the user manual for the APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P.

    The user manual lists all of the functions of the APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P, all the basic and advanced features and tells you how to use the ups backup. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from APC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower SYA8K16P. User manuals are also available on the APC website under Computers & Solutions - Power - UPS Backup.
