User manual Aphex 320D COMPELLOR with Digital I/O 320D

Operating instructions and pdf manual for use - Aphex 320D COMPELLOR with Digital I/O 320D User manual, User manual Aphex 320D COMPELLOR with Digital I/O 320D, Aphex, 320D, COMPELLOR, with, Digital, I/O, 320D, Video


User manual for Aphex 320D COMPELLOR with Digital I/O 320D

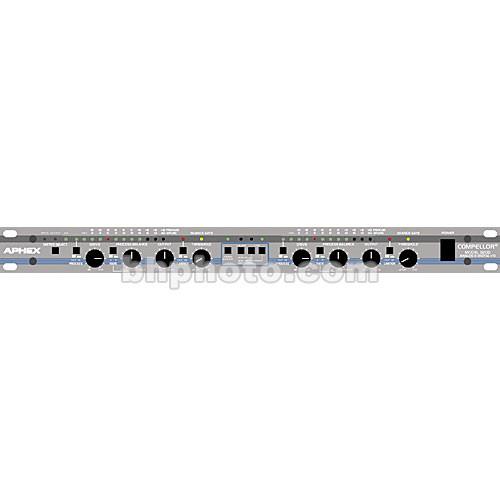

Aphex  320D COMPELLOR with Digital I/O 320D
  • Manufacturer: Aphex
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Dynamics Processors
  • Safety instructions
  • Startup and operation of the dynamics processors
  • Tips for setting up your Aphex
  • Settings and expert assistance
  • Contact Aphex service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Aphex 320D COMPELLOR with Digital I/O 320D, which address similar problems with connecting and setting up Dynamics Processors Aphex.



User manual for the Aphex 320D COMPELLOR with Digital I/O 320D

The user manual for the Aphex 320D COMPELLOR with Digital I/O 320D provides necessary instructions for the proper use of the product Pro Audio - Recording - Dynamics Processors.

The Aphex 320D delivers "intelligent" compressor action, leveling and peak limiting simultaneously. It can be used to solve audio level problems and improve audio signals in the broadcast or recording studio, tape duplication house, film-dubbing studio or in live sound applications.
If you own a Aphex dynamics processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Aphex 320D COMPELLOR with Digital I/O 320D in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Aphex  320D COMPELLOR with Digital I/O 320DDownload user manual for Aphex 320D COMPELLOR with Digital I/O 320D
(PDF file, 0.72 MB)
Additional parameters of the Aphex 320D COMPELLOR with Digital I/O 320D:
Function Compressor/Leveler/Limiter
Number of Channels 2
Inputs 2 x XLR analog
1 x XLR AES/EBU
Output 2 x XLR analog
1 x XLR AES/EBU
Maximum Input Level +25 dBu when set for +4 dBu operation
Compression Threshold Compressor: 30 dB below nominal level
Leveler: 30 dB below nominal level
Limiter: 12 dB below nominal level
Compression Ratio Compressor: 1.1:1 to 3:1 program dependent
Leveler: 20:1
Limiter: >30:1
Attack Time Compressor: 5 to 50 mSec program dependent
Leveler: Frequency dependent
Limiter: 1 uSec
Release Time Compressor: 200 mSec to 1 sec program dependent
Leveler: 3 sec (fast), 10 sec (slow)
Limiter: 20 mSec
Gate Threshold Not applicable
Gate Rate Not applicable
Maximum Output Level +20 dBu when set for +4 dBu operation
Make-up Gain Not specified by manufacturer
Frequency Response 10 Hz to 65 kHz
Dynamic Range Not specified by manufacturer
Noise Not specified by manufacturer
Dimensions (WxDxH) 19.00 x 10.13 x 1.75" (48.26 x 25.73 x 4.45 cm)
Weight 8.0 lb (3.6 kg)
Specialties A Silence Gate feature detects significant gaps in the program material and freezes the processing, thus preventing noise "swell" or "build-up," a condition commonly audible in other automatic gain control devices. The Silence Gate immediately releases when the program material resumes
Packaging Info
Package Weight 8.55 lb
Box Dimensions (LxWxH) 25.5 x 12.7 x 3.5"
The user manual for the Aphex 320D COMPELLOR with Digital I/O 320D can be downloaded in .pdf format if it did not come with your new dynamics processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Aphex users keep a unique electronic library for Aphex dynamics processorss, where you can use our link to download the user manual for the Aphex 320D COMPELLOR with Digital I/O 320D.

The user manual lists all of the functions of the Aphex 320D COMPELLOR with Digital I/O 320D, all the basic and advanced features and tells you how to use the dynamics processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Aphex service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Aphex 320D COMPELLOR with Digital I/O 320D. User manuals are also available on the Aphex website under Pro Audio - Recording - Dynamics Processors.
