User manual for the Aquabotix HydroView PRO SLE Mini Underwater ROV 01-HV-PRO-000SLE

The user manual for the Aquabotix HydroView PRO SLE Mini Underwater ROV 01-HV-PRO-000SLE provides necessary instructions for the proper use of the product Photography - Underwater Photography - ROVs.

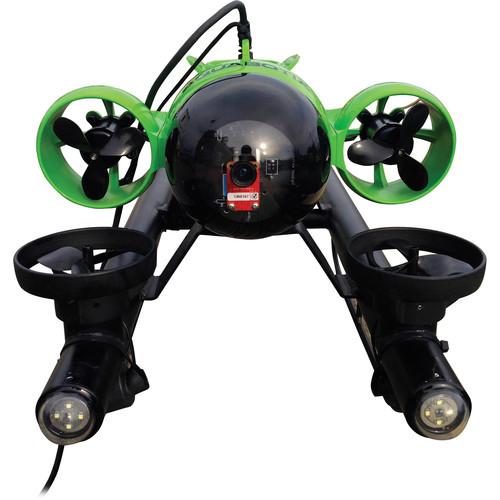

A highly useful tool for underwater exploration, the lime green and black HydroView PRO SLE Mini Underwater ROV with Live Video from Aquabotix allows you to study marine life and environments at a maximum depth of 330'. It can also be employed to check water depths, water tanks, and the undersides of boats, or to carry out search-and-recovery missions. The ROV provides a live video feed to the surface and captures videos and photos. This version is configured specifically for security and law enforcement. It is the same as the HydroView PRO 7M except for several notable upgrades. Its camera improves on the 7M's with tilt capability, continuous focus, and 1080p Full HD video, which can be recorded for up to 17 hr thanks to the 128GB of solid-state memory. The ROV also includes a longer tethering cable, a wireless hand controller, and much brighter 700-lumen LED pontoon lighting.

The PRO SLE has a wide-angle lens offering a 66° angle of view, and the dome port counteracts the decrease in coverage that occurs underwater by providing a wider angle. A 328' chemical-resistant Cat 5e cable allows for connection to the included topside box, which generates its own Wi-Fi for connecting your iPad or PC via the free downloadable app. Mac operating systems are not compatible. The box has a LAN connection enabling the use of an optional Ethernet cable as an alternative to Wi-Fi. The app lets you view the vehicle's live video feed on your computer's display and remotely control its movements and functions. For greater operating range up to 500', optional Cat 5e cable extensions are available.

This version of the HydroView PRO features 7 Swiss-made, high torque motors, including 4 thrusters and 3 hovering/pitch motors, with propellers and propeller guards. The unique motor configuration gives you complete control over forward/backward and up/down motions, as well as roll, pitch, yaw, and hovering. The HydroView can reach speeds up to 4 knots going forward and 2 knots in reverse. It runs on 2 rechargeable lithium-ion batteries. Two alternate versions of the HydroView are available separately: one configured with 12/24VDC topside continuous power and one configured with 110-240VAC topside continuous power.

The orientation sensor provides you with readings on yaw, pitch, roll, and heading relative to true north. This sensor aids in navigation of the vehicle and is extremely useful in poor water quality conditions. There's also a depth sensor that gives you readings on the underwater depth of the vehicle, allowing you to drive it to the exact depth needed for your purposes. This is also a useful tool when you find something underwater that you want to be able to locate again. The HydroView also features a sensor that detects and indicates the temperature of the water where the vehicle is swimming. The HydroView software provides control over heading, pitch, depth, thrust, waypoints, and patterns.
If you own a Aquabotix rovs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Aquabotix HydroView PRO SLE Mini Underwater ROV 01-HV-PRO-000SLE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Aquabotix HydroView PRO SLE Mini Underwater ROV 01-HV-PRO-000SLE:
Specifications
    Camera
    Image Sensor 2.0 MP
    Resolution HD 1920 x 1080p, 1280 x 720p
    VGA 640 x 480
    Aspect Ratio 16:9, 4:3
    Color Depth 24-bit
    Lens Focal length: not specified by manufacturer
    Angle of view: 66°
    Focus Auto focus with manual focus override (via app)
    Exposure Control Auto
    Video Frame Rate 30 fps
    Lights External LED pontoon light:
    Output: 700 lumens
    Color Temperature: 6800 K
    Memory 128 GB of solid state memory for up to 17 hr Full HD video recording
    Processing
    Processor & Memory 1.0 GHz Super-scalar ARM Cortex-A8 Processor
    Cortex C64X+ DSP Core
    512 MB DDR RAM
    Operating System Embedded Linux
    MOOS Open Source Application Environment (developed by M.I.T. and Oxford University)
    Connectivity
    Wi-Fi Yes, 802.11n via the included topside box
    Remote control via PC laptop or iPad using free HydroView App
    Ethernet LAN connection on topside box for using optional Ethernet cable as alternative to Wi-Fi
    System Requirements iPad: iOS 4.2.1 or later
    Computer: Windows 7 or later, or Linux OS with wireless networking capabilities and latest version of Java. Mac operating systems are not compatible.
    Housing
    Depth Rating 330' / 101 m
    Speed Forward: up to 4 knots / 4.6 mph (7.4 km/hr)
    Reverse: up to 2 knots / 2.3 mph (3.7 km/hr)
    Operating Temperature Not specified by manufacturer
    Connectivity Vehicle to topside box: 328' / 100 m Cat 5e to Cat 5e thermoplastic elastomer cable with 0.5" / 12 mm diameter
    RoHS compliant, hazardous industrial environment
    Optional cable extensions available to increase operating range to 500' / 152 m
    Power 7 Swiss-made, high-torque motors: 4 thrusters and 3 hovering/pitch
    Magnets with 80% efficiency
    Propellers

    2 rechargeable, user-replaceable 15 V, 10.5 Ah lithium-ion batteries
    Recharge time: approx. 12 hr
    Run time: approx. 3.0 hr
    Operating voltage: 10 VDC

    Two alternate versions of vehicle with topside continuous power available separately: one configured with 12/24 VDC @ 30/20 A power, one configured with 110-240 VAC @ 10 A (no battery)
    Material of Construction Motors: precious metal
    Payload 2.0 lb / 0.9 kg
    Dimensions 14.6 x 18.9 x 11.8" / 37 x 48 x 30 cm
    Fits through 17.7" / 45 cm circular hatch
    Weight Vehicle (out of water): approx. 14 lb / 6.4 kg
    Vehicle (in salt water): -1.4 oz / -40 g
    Cable: 1.5 lb / 0.7 kg per 50' / 15.2 m
    Case
    Durability Waterproof, dust-proof with gasket seals
    Submersible design spec MIL-C-4150J
    Corrosion and impact-resistant
    Construction Made of molded, high-strength polypropylene copolymer resin
    Carrying/Transport Options Extension handle
    Dimensions 23 x 31 x 17.5" / 58.4 x 78.7 x 44.5 cm
