User manual for the AquaTech Elite 7D II Underwater Sport Housing for Canon 7D 10108
The user manual for the AquaTech Elite 7D II Underwater Sport Housing for Canon 7D 10108 provides
necessary instructions for the proper use of the product Photography - Underwater Photography - Still Cameras & Housings.

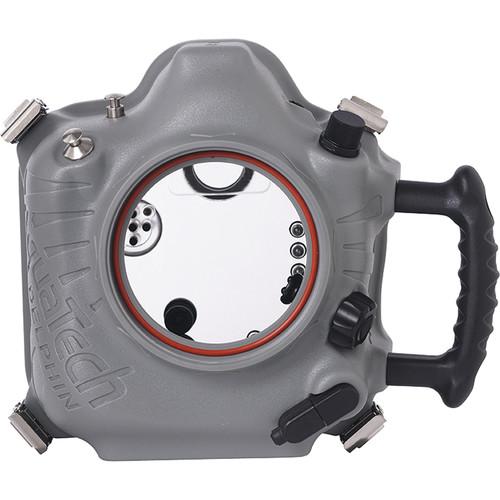

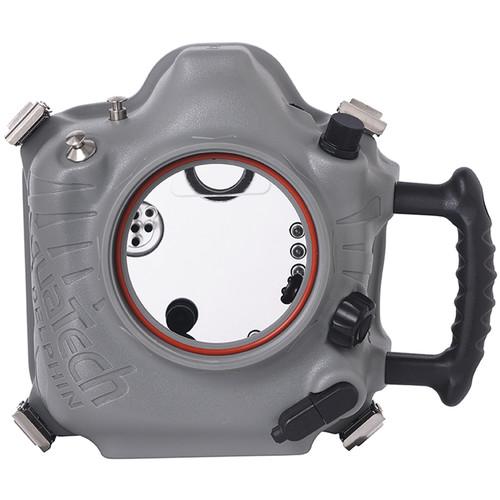

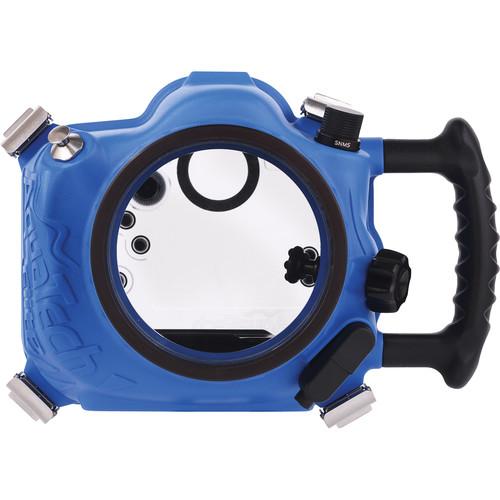

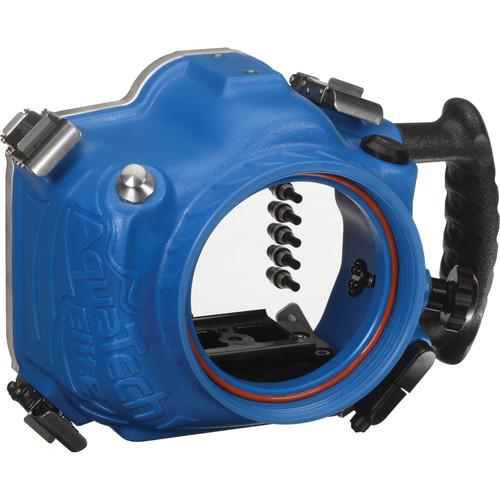

Capture photos and video over, under, or near the water's surface with your Canon 7D Mk II DSLR in this AquaTech Elite 7D II Underwater Sport Housing. Featuring a depth rating of 33', AquaTech housings are designed for shallow water and surface use, and shouldn't be operated at depths beyond 15' for longer than five minutes.

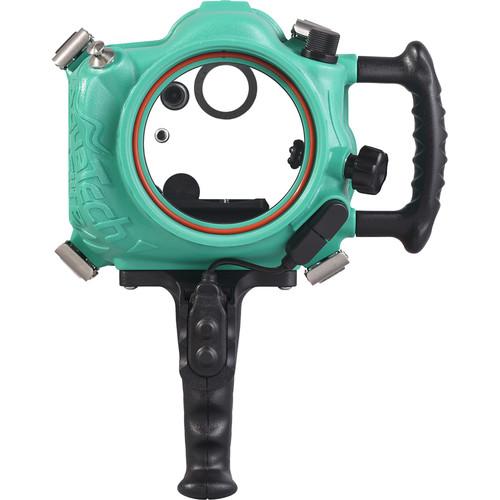

The Elite 7D II's tactile, mechanical controls provide easy access to important camera functions, and its ergonomic design and side grip offer optimal handling and comfort. An optional Pistol Grip Trigger and 27" Pole Shutter Extension kit offers remote firing capability and focus control, allowing you to capture blur-free images with ease. The pole also affords extra reach when shooting at certain angles.
The housing's polyurethane body has reinforced quick-release clips and tactile controls made of stainless steel, aluminum, and high strength plastics. All of the aluminum parts have been anodized for resistance to corrosion and other wear and tear. The O-rings that secure the housing's inner controls are greased during assembly and a small tube of O-ring grease is included for continued maintenance of the metal shafts of the housing's push controls.
An optional flash bulkhead sync connector, supplied with the flash housing, enables the Elite 7D II to work with optional accessories such as external flash units and pocket wizards. A threaded 3/8"-16 mounting point at the bottom of the housing enables connection to an optional tripod or tray. The Elite 7D II sport housing ships without a required lens port, and accepts a series of screw-mounted ports for the Canon lens series. For complete compatibility information, see this Port Chart.
|
If you own a AquaTech still cameras & housings and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the AquaTech Elite 7D II Underwater Sport Housing for Canon 7D 10108 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the AquaTech Elite 7D II Underwater Sport Housing for Canon 7D 10108:
| Depth Rating | 33' / 10 m | | Control Type | Mechanical. | | Controls | Housing provides access to these camera functions: AF-On, Start, Stop, Video / Stills switch, Q menu, Right Multi-Controller, Set Button, Zoom In, Playback, Delete, Auto Focus Point Selector, Rear Control Dial, Shutter. | | Material of Construction | Polyurethane body, stainless steel and hard anodized aluminum controls. | | Lens Port | Required and sold separately. Lens Port Mount Diameter: 4.75" / 120 mm. Various interchangeable, screw-mount flat and dome ports are available for wide-angle, macro and zoom lenses. For compatibility details, see port chart linked in overview. | | Buoyancy | Varies depending on choice of lens and port. | | External Strobe Connector | The Elite 7D II can accommodate an optional flash bulkhead, which is included with the purchase of AquaTech's flash housing. | | Viewfinder | None | | Moisture Alarm | None | | Mounting | One 3/8"-16 threaded tripod mounting point. | | Dimensions (W x H x D) | 7.5 x 6.75 x 5.0" / 19.0 x 17.1 x 12.7 cm | | Weight | 3.6 lb / 1.6 kg | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 10.8 x 8.4 x 6.2" | |
