User manual Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB

Operating instructions and pdf manual for use - Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB User manual, User manual Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB, Arecont, Vision, AV20185, 180°, Panorami


User manual for Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB

Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB
  • Manufacturer: Arecont Vision
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Arecont Vision
  • Settings and expert assistance
  • Contact Arecont Vision service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB, which address similar problems with connecting and setting up Wired IP Cameras Arecont Vision.



User manual for the Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB

The user manual for the Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

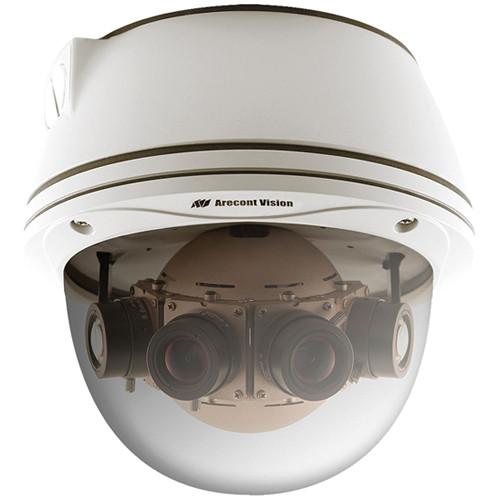

The Arecont Vision AV20185 180° Panoramic Day/Night SurroundVideo IP Camera (Heater & Blower) is an innovative cost-effective security device designed to deliver videos with unparalleled high-definition resolution of up to 2592 x 1944. The camera's four 5 MP CMOS image sensors combine the images inside the camera so that you get a 180° view of an area.

With the forensic zooming feature, the MegaVideo Camera allows you to zoom in on specific portions of the live recording or after-event video, when simultaneously recording the full field-of-view in HD. This is useful when CCTV video footage needs to be previewed and analyzed in criminal and other legal cases.

Video footage can be stored in either MJPEG or H.264 (MPEG4, Part 10) compression format, which provides small-sized files and uses less network bandwidth. For efficient data management, you can send videos up to 8 concurrent, non-identical streams with different frame or bit rates, resolutions, and picture quality.

With up to 1024 distinct motion detection zones, the camera triggers an alarm if any movement is detected in these zones. You can also protect the privacy of people in the surveillance area by blocking multiple regions of a video in almost any arbitrary shape. The Power over Ethernet feature (PoE) transfers both power and data over a single Ethernet network cable, eliminating the need to install the camera near a power supply.

The SurroundVideo IP camera is encased in a die-cast aluminum chassis with a 5.5” vandal-resistant polycarbonate dome bubble. This enables you to safely install the camera indoors or outdoors and also ensures uninterrupted surveillance in harsh weather conditions. Integrated heater and blower is used to regulate the internal temperature of the camera, enabling it to operate in temperatures ranging from -22 to 140°F (-30 to 60°C).
If you own a Arecont Vision wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HBDownload user manual for Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB
(PDF file, 2.35 MB)
Additional parameters of the Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB:
Sensor Type: 4 x 5 MP CMOS image sensors
Pixel array: 2592(H) x 1944(V) pixel array each sensor
Format: 1/2.5" optical format
Pixel: 2.2 μm pixel pitch
Filter: Bayer mosaic RGB filter
Optics 6.2mm, f/1.8, HFOV=47°
Minimum Illumination Day/Night: 0 lux, IR sensitive
Dynamic Range 70.1 dB
S/N Ratio 44.1 dB
Resolutions Full Field of View (FOV) Resolution
10240(H) x 1920(V) = 2560(H) x 4 x 1920(V) 20 MP total
5120(H) x 960(V) = 1280(H) x 4 x 960(V) 5 MP total (1/4 Resolution)
Data Transmission Video frame rate up to:
3.5 fps at 10240 x 1920
4.2 fps at 10240 x 1600
11 fps at 5120 x 960
11 fps at 2560 x 1920
11 fps at 2560 x 1600

Video frame in binned mode:
13 fps at 5120 x 960
27 fps at 1280 x 960

Compression H.264 (MPEG4, Part 10)
Motion JPEG
21 levels of quality
Protocol TFTP, HTTP, RTSP, RTP over TCP, RTP over UDP
Network Interface 100Base-T Ethernet Network Interface
Data Rate Bit rate control from 100 Kbps to 10 Mbps
Unthrottled data rate up to 50 Mbps
Streaming Multi-streaming: 8 non-identical streams
Electrical General purpose opto-coupled input and output
Power over Ethernet (PoE): PoE 802.3af for camera
Auxiliary power 12 to 48 VDC, 24 VAC
Power consumption: 9 W maximum
Heater & Blower Voltage Input: 12 to 20V DC / 24 VAC (separate power required)
Power Output: 11 W Max (DC12V); 13 W Max (AC24V)
Heater Switch: On: 62.6°F (17°C), Off: 86°F (30°C)
Blower Switch: On: 50°F (10°C), Off: 59°F (15°C)
Blower Switch: On: 122°F (50°C), Off: 113°F (45°C)
Housing Die-cast aluminum chassis with 5.5" (139.7 mm) vandal resistant polycarbonate dome bubble
Environmental IP66 weatherproofing standard, IK6 Rated
Operating temperature: -22 to 140°F (-30 to 60˿C)
Stable image temperature: 32 to 122°F (0 to 50˿C)
Storage temperature: -22 to 140°F (-30 to 60˿C)
Humidity: 0 to 90% (non-condensing)
Regulatory Approvals FCC, CE, RoHS, UL
Conduit 3/4" NPT standard
Dimensions (ØxH) Ø6.9 x 6.55" (175 x 166 mm)
Bubble only: 5.5 x 3.4" (140 x 87 mm)
Weight 3.81 lb (1.75 kg)
Packaging Info
Package Weight 4.75 lb
Box Dimensions (LxWxH) 8.8 x 8.7 x 8.2"
The user manual for the Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Arecont Vision users keep a unique electronic library for Arecont Vision wired ip camerass, where you can use our link to download the user manual for the Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB.

The user manual lists all of the functions of the Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Arecont Vision service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Arecont Vision AV20185 180° Panoramic Day/Night AV20185DN-HB. User manuals are also available on the Arecont Vision website under Surveillance - Surveillance Video - Wired IP Cameras.
