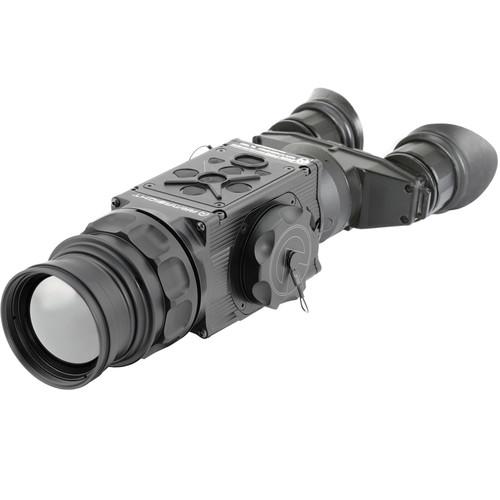

See through smoke, fog, and dust, day or night, with the Helios Pro 640 2-16x50 Thermal Bi-Ocular from Armasight. Its FLIR Tau 2 uncooled microbolometer detects long-wave infrared and allows you to see heat emanating from humans, animals, and jet or combustion engines. It also offers visibility in total darkness and through fog, smoke, foliage, and dust. The sensor has resolution of 640x512, 17µm pixel size, and refresh rate of 30 Hz. The optical system features a 50mm f/1.4 germanium lens with 1.8x magnification with the default NTSC format and digital zoom of up to 8x. To help you with aiming and fast target acquisition, this device offers a multi-color digital reticle.

The built-in AMOLED SVGA 060 video display features 800x600-pixel resolution and allows several viewing palettes: White Hot, Black Hot, Sepia, Fusion, Rainbow, and Rain. For documenting your observations, the scope is capable of relaying videos through a video-out port in NTSC and PAL formats. Use the 9-pin connector cable for updating the device software and to relay videos. Additionally, the operating system allows you to enhance video outputs with a selection of imaging filter algorithms. This imager also features a Bluetooth compatibility, wireless remote control, digital compass, digital inclinometer, and battery status indicator.

To withstand rigors of the battlefield, this device can operate in extreme temperatures and has a durable waterproof and fog-resistant aluminum housing. In addition to handheld operation, you can mount it on Picatinny or Weaver-style rails via the included mount.
If you own a Armasight thermal scopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Armasight Helios Pro 640 2-16x50 Thermal TAT163BN5HPRO21 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Armasight Helios Pro 640 2-16x50 Thermal TAT163BN5HPRO21:
Specifications
Array Configuration 640x512 FLIR Tau 2 VOx microbolometer
Spectral Range 7-14 µm
Pixel Size 17 µm
Resolution 0.34 mrad
Refresh Rate 30 Hz
Magnification NTSC: 1.8x
PAL: 2.1x
Digital Zoom: 1x, 2x, 4x, 8x
Angle of View 12.5 x 10°
Lens System 50mm, f/1.4
Minimum Focus Distance 16.4' (5 m)
Eye Relief 16 mm
Exit Pupil 14 mm
Display 800x600 AMOLED SVGA 060
Diopter Adjustment ±5
Battery / Runtime 4 x CR-123A Lithium Batteries / Runtime: 7 h maximum
4 x AA Lithium Batteries / Runtime: 7 h maximum
External Power Supply: 6 V, 600 mAh
Operating Temperature -59 to 134°F (-51 to 57°C)
Storage Temperature -70 to 185°F (-57 to 85°C)
Weatherproofing Waterproof and fog-resistant
Dimensions 9.5 x 4 x 2.4" (241 x 102 x 60 mm)
Weight 37 oz (1.05 kg)
