User manual Arri L5-DT 5" Daylight LED Fresnel L0.0001986

Operating instructions and pdf manual for use - Arri L5-DT 5" Daylight LED Fresnel L0.0001986 User manual, User manual Arri L5-DT 5" Daylight LED Fresnel L0.0001986, Arri, L5-DT, 5, Daylight, LED, Fresnel, L0.0001986,


User manual for Arri L5-DT 5" Daylight LED Fresnel L0.0001986

Arri L5-DT 5
  • Manufacturer: Arri
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - LED Lights
  • Safety instructions
  • Startup and operation of the led lights
  • Tips for setting up your Arri
  • Settings and expert assistance
  • Contact Arri service
  • Troubleshooting
  • Warranty information

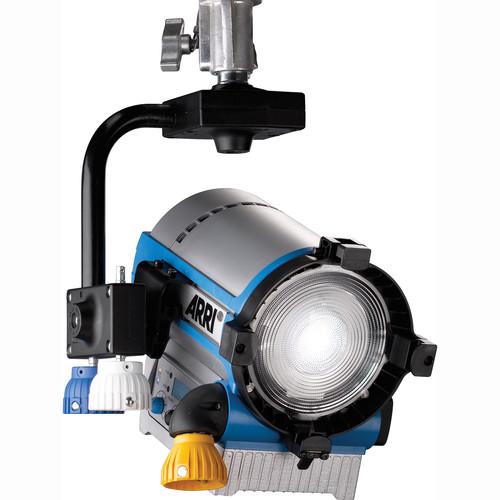

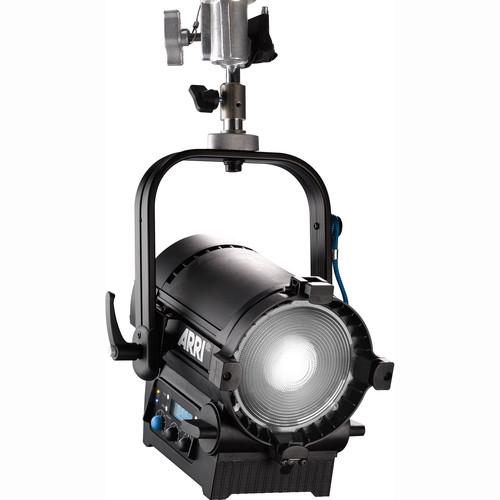

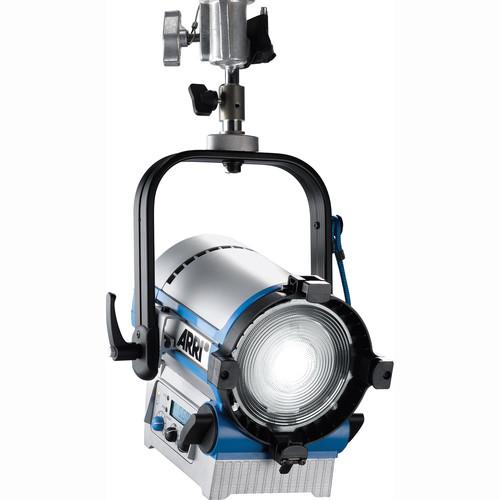

Arri L5-DT 5 Arri L5-DT 5 Arri L5-DT 5 Arri L5-DT 5 Arri L5-DT 5
Click to enlarge image

We recommend checking out our discussion threads on the Arri L5-DT 5" Daylight LED Fresnel L0.0001986, which address similar problems with connecting and setting up LED Lights Arri.



User manual for the Arri L5-DT 5" Daylight LED Fresnel L0.0001986

The user manual for the Arri L5-DT 5" Daylight LED Fresnel L0.0001986 provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

ARRI continues to expand its L-Series with the introduction of the L5-DT 5" Daylight LED Fresnel The key characteristic of any Fresnel is flood to spot capability and the L5-DT offers an impressive beam angle adjustment of 14-50°.
If you own a Arri led lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Arri L5-DT 5" Daylight LED Fresnel L0.0001986 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Arri L5-DT 5Download user manual for Arri L5-DT 5" Daylight LED Fresnel L0.0001986
(PDF file, 0.48 MB)
Additional parameters of the Arri L5-DT 5" Daylight LED Fresnel L0.0001986:
Specifications
    Light Source LED
    Type 5.39" (137 mm) Fresnel
    Yoke Pole operated
    Beam Angle 14 - 50° (Half peak angle)
    Rating 450W
    Color Range Daylight balance, color tunable: 5,000 - 6,500K
    Full plus/minus green adjustment
    Tolerance: +/- 100K (nominal), +/- 1/8 Green-Magenta (nominal)
    Estimated lifetime color shift: < 200 K
    Lamp Life 50,000 Hours
    CRI 95
    Dimming Range 100 - 0%
    Operating Voltage 90-250 VAC, 50/60 Hz
    22-36 VDC
    Power Consumption 115 W Nominal
    IP Rating IP20
    Cooling Fan
    Operating Temperature -4 to 113°F (-20 to +45°C)
    Control 5-Pin DMX in and through, on-board controller
    Mini-USB: DMX setup, fixture status and firmware upgrade through PC software
    Remote Device Management (RDM): DMX setup, hour counter and standard RDM commands
    Power Connections powerCON TRUE1 to bare ends
    Tilt +/- 90°
    Mount Baby 5/8" (16 mm) / Junior 1 1/8" (28 mm) combo pin
    Certification and Compliance CE, GS, FCC, cNRTL, CB, ISO9001:2000
    Finish Black
    Dimensions Full flood position including yoke and pin: 17.7 x 10.6 x 11" (451 x 270 x 280 mm)
    Full spot position including yoke and pin: 17.7 x 10.9 x 14.7" (394 x 278 x 373 mm)
    Accessory size: 6.62" (168 mm)
    Weight 15.4 lb (7.0 kg)
    The user manual for the Arri L5-DT 5" Daylight LED Fresnel L0.0001986 can be downloaded in .pdf format if it did not come with your new led lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Arri users keep a unique electronic library for Arri led lightss, where you can use our link to download the user manual for the Arri L5-DT 5" Daylight LED Fresnel L0.0001986.

    The user manual lists all of the functions of the Arri L5-DT 5" Daylight LED Fresnel L0.0001986, all the basic and advanced features and tells you how to use the led lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Arri service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Arri L5-DT 5" Daylight LED Fresnel L0.0001986. User manuals are also available on the Arri website under Lighting & Studio - Continuous Lighting - LED Lights.
