User manual ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II

Operating instructions and pdf manual for use - ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II User manual, User manual ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II, ART, Digital, MPA, II, Microphone, Preamplifier, DIGIT


User manual for ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II
  • Manufacturer: ART
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Microphone Preamps
  • Safety instructions
  • Startup and operation of the microphone preamps
  • Tips for setting up your ART
  • Settings and expert assistance
  • Contact ART service
  • Troubleshooting
  • Warranty information
  • Price: 369 USD
We recommend checking out our discussion threads on the ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II, which address similar problems with connecting and setting up Microphone Preamps ART.



User manual for the ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II

The user manual for the ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II provides necessary instructions for the proper use of the product Pro Audio - Recording - Microphone Preamps.

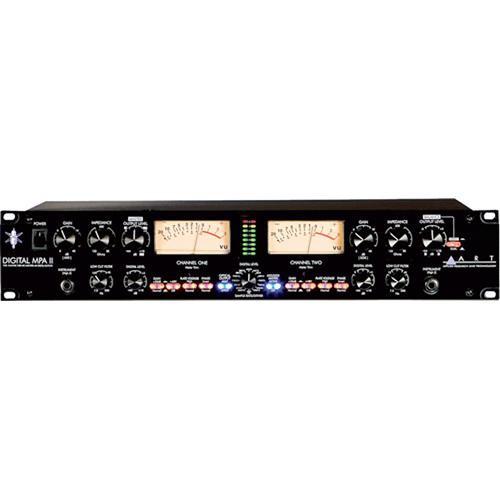

The Digital MPA II from ART is a 2-channel microphone preamplifier that delivers a total of 70dB of gain, and can operate in either stereo or dual-mono mode. Based on the same circuitry as the ProMPA II, the microphone preamp is perfect for any sized studio, production facility, or live sound environment where digital output is required. The unit outputs all 3 major digital standards with Wordclock input and output also included.
If you own a ART microphone preamps and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ART Digital MPA II - Microphone Preamplifier DIGITAL MPA IIDownload user manual for ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II
(PDF file, 0.41 MB)
Additional parameters of the ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II:
Number of Channels 2
Inputs 2 x XLR
2 x 1/4" TS phone Instrument (front panel)
1 x 1/4" TRS phone Insert
1 x TOSLink ADAT Lightpipe
1 x BNC Wordclock
Output 2 x XLR Line
2 x 1/4" TRS phone Line
1 x TOSLink ADAT Lightpipe
1 x RCA coaxial S/PDIF
1 x XLR AES/EBU
1 x BNC Wordclock
Phantom Power +48VDC, individually switchable
Multi Function 2-channel analog to digital converter:

44.1, 48, 88.2, 96, 176.4 and 192kHz internal sampling rates
24/16-bit switchable dithering

Gain Range 70dB
Maximum Output Level +27dBu
Frequency Response 15Hz to 48kHz, +0/-1dB @ normal plate voltage
15Hz to 120kHz, +0/-1dB @ high plate voltage
Noise EIN: -129dBu, A-weighted
Power Requirements 105~125VAC, 60Hz
Dimensions (WxDxH) 19 x 8.75 x 3.5" (483 x 222 x 89mm)
Weight 10.5 lbs (4.7kg)
Specialties Microphone impedance variable from 150Ω to 3kΩ
Supports Mid/Side microphone recording
Packaging Info
Package Weight 13.35 lb
Box Dimensions (LxWxH) 22.0 x 11.2 x 5.4"
The user manual for the ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II can be downloaded in .pdf format if it did not come with your new microphone preamps, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ART users keep a unique electronic library for ART microphone preampss, where you can use our link to download the user manual for the ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II.

The user manual lists all of the functions of the ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II, all the basic and advanced features and tells you how to use the microphone preamps. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ART service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ART Digital MPA II - Microphone Preamplifier DIGITAL MPA II. User manuals are also available on the ART website under Pro Audio - Recording - Microphone Preamps.
