User manual ART SLA-1 - 100W 2-Channel Amplifier SLA-1

Operating instructions and pdf manual for use - ART SLA-1 - 100W 2-Channel Amplifier SLA-1 User manual, User manual ART SLA-1 - 100W 2-Channel Amplifier SLA-1, ART, SLA-1, 100W, 2-Channel, Amplifier, SLA-1, Video


User manual for ART SLA-1 - 100W 2-Channel Amplifier SLA-1

Overall rating 3.0
Overall Rating: 3.0

60% of respondents would recommend this to a friend.
ART  SLA-1 - 100W 2-Channel Amplifier SLA-1
  • Manufacturer: ART
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Power Amplifiers
  • Safety instructions
  • Startup and operation of the power amplifiers
  • Tips for setting up your ART
  • Settings and expert assistance
  • Contact ART service
  • Troubleshooting
  • Warranty information
  • Price: 229 USD
We recommend checking out our discussion threads on the ART SLA-1 - 100W 2-Channel Amplifier SLA-1, which address similar problems with connecting and setting up Power Amplifiers ART.



User manual for the ART SLA-1 - 100W 2-Channel Amplifier SLA-1

The user manual for the ART SLA-1 - 100W 2-Channel Amplifier SLA-1 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

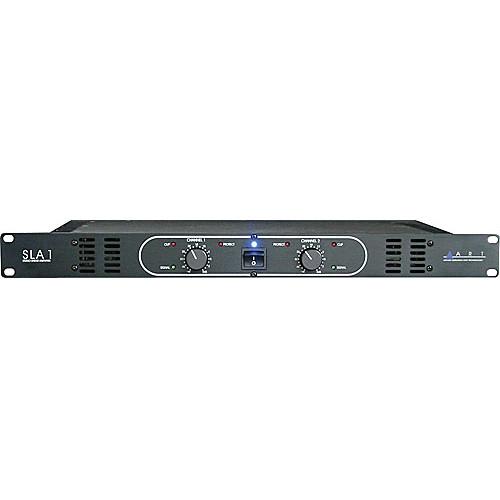

The SLA-1 from ART is a rack mountable two-channel power amplifier designed for studio use. It offers a wide frequency response with very low noise and distortion for quality audio output. XLR and 1/4" input connectors are provided, along with five-way binding post outputs. Each channel has its own level control on the front panel.

The SLA-1 can operate in stereo or bridged mode, and features a ground-lift switch to eliminate hum caused by ground loops. The unit offers full protection circuitry for short circuits, overloads, and overheating. If any faults are detected, the amplifier will disconnect the outputs and automatically return to normal operation when the fault is fixed. The SmartFan cooling system offers silent fan-assisted convection cooling to keep the system running reliably.
If you own a ART power amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ART SLA-1 - 100W 2-Channel Amplifier SLA-1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ART  SLA-1 - 100W 2-Channel Amplifier SLA-1Download user manual for ART SLA-1 - 100W 2-Channel Amplifier SLA-1
(PDF file, 0.15 MB)
Additional parameters of the ART SLA-1 - 100W 2-Channel Amplifier SLA-1:
Output Power 100W RMS Per Channel @ 8 Ohms Stereo
130W RMS Per Channel @ 4 Ohms Stereo
260W RMS @ 8 Ohms Bridged-Mono
Damping Factor > 100
Input Sensitivity 1V for Full Power into 8 Ohms
Input Impedance 44 kOhms, Balanced
22 kOhms, Unbalanced
Gain Not Specified by Manufacturer
Frequency Response 10Hz - 40kHz, ±0.5dB
Signal-to-Noise Ratio Not Specified by Manufacturer
Total Harmonic Distortion (THD) < 0.05% (Typical)
Input Connections 2 x XLR Female
2 x 1/4" (6.3mm) Jacks
1 x AC Power In
Output Connectors 4 x 5-Way Binding Posts (2 Per Channel)
Controls Front Panel 1 x Power Switch
2 x Level Control Knobs
Controls (Rear) 1 x Stereo/Bridge Mode Selector Switch
1 x Ground-Lift Switch
Indicators 1 x Blue Power LED
2 x Red Protect LEDs
2 x Red Clip LEDs
2 x Green Signal LEDs
Cooling SmartFan Convection Cooling, Silent Fan-Assisted System
Power 120VAC, 60Hz, 600W (Max)
Dimensions (WxHxD) 19 x 1.75 x 9.5" (483 x 44 x 241mm)
Weight 13.2 lbs (6 kg)
Packaging Info
Package Weight 14.6 lb
Box Dimensions (LxWxH) 23.0 x 13.2 x 4.7"
The user manual for the ART SLA-1 - 100W 2-Channel Amplifier SLA-1 can be downloaded in .pdf format if it did not come with your new power amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ART users keep a unique electronic library for ART power amplifierss, where you can use our link to download the user manual for the ART SLA-1 - 100W 2-Channel Amplifier SLA-1.

The user manual lists all of the functions of the ART SLA-1 - 100W 2-Channel Amplifier SLA-1, all the basic and advanced features and tells you how to use the power amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ART service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ART SLA-1 - 100W 2-Channel Amplifier SLA-1. User manuals are also available on the ART website under Pro Audio - Live Sound - Power Amplifiers.
