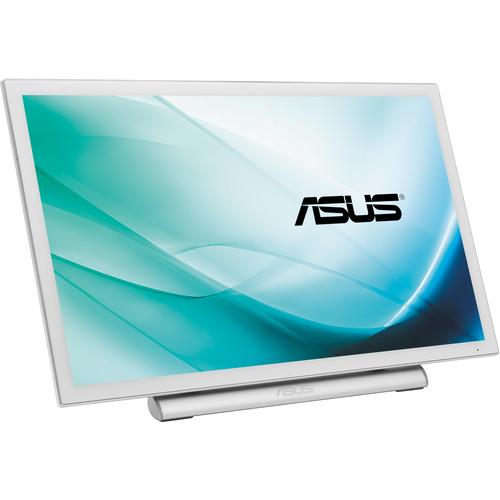

User manual ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q

Operating instructions and pdf manual for use - ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q User manual, User manual ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q, ASUS, PT201Q, 19.5, Widescreen, Pen, Touch, Monitor, PT201Q,


User manual for ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q

ASUS PT201Q 19.5
  • Manufacturer: ASUS
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your ASUS
  • Settings and expert assistance
  • Contact ASUS service
  • Troubleshooting
  • Warranty information
  • Price: 999 USD
We recommend checking out our discussion threads on the ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q, which address similar problems with connecting and setting up Computer Monitors ASUS.



User manual for the ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q

The user manual for the ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

With the included digitizer pen and stand, the PT201Q 19.5" Widescreen Pen Touch Monitor from ASUS allows you to interact with your monitor in a variety of ways. This display features 10-point capacitive touch technology for multi-touch input making it easy to zoom in on photos with pinch, scroll through web pages, and much more. You can even work with the pen and your finger simultaneously. The digitizer pen also provides a natural writing experience with 1024 pressure level detection.

The PT201Q comes equipped with both HDMI and DisplayPort connectivity making it easy to plug this display into a variety of computer configurations. The detachable stand allows you to adjust the display from 20° to 75° for maximum viewing comfort. Whether viewing the display from the 20° or 75° tilt position, you benefit from enhanced 178° viewing angles to reduce color shift.
If you own a ASUS computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ASUS PT201Q 19.5Download user manual for ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q
(PDF file, 2.97 MB)
Additional parameters of the ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q:
Specifications
    Display
    Panel Size 19.5" / 49.5 cm
    Resolution 1920 x 1080
    Pixel Pitch 0.225 mm
    Brightness 250 cd/m²
    Contrast Ratio 3,000:1
    Aspect Ratio 16:9
    Viewing Angles Horizontal: 178°
    Vertical: 178°
    Response Time 5 ms (gray to gray)
    Display Colors 16.7 million
    Touch Screen Yes, capacitive 10-point multi-touch
    Video
    Color Temperature Selection 5 modes
    Gamma Adjustment Yes (support gamma 2.0/2.2/2.4/2.6/1.8)
    HDCP Support Yes
    Audio
    Speakers 2 x 1 W stereo RMS
    Other Specifications
    Pen Control Touch Pen Technology: Digitizer pen
    Pressure Level: 1024 levels
    Writing Response: 240 Hz
    Convenient Hotkey Volume adjustment
    Input selection
    Signal Inputs 1 x HDMI
    1 x DisplayPort
    AV Audio Input HDMI
    USB Ports 1 x USB 2.0 type A port
    1 x micro-USB port
    Digital Signal Frequency Horizontal: 31~68 kHz
    Vertical: 50~60 Hz
    Power Consumption Power Consumption: <41 w
    Power Off Mode: <0.3 W
    Voltage 100-240 VAC, 50/60 Hz
    Tilt +20° ~ +75°
    VESA Hole Pattern 100 x 100 mm
    Security Kensington lock
    Regulation Approval BSMI, CB, CE, CU, FCC, J-MOSS, PSE, RoHS, VCCI, WEEE, RCM, UL
    Dimensions With Stand: 18.3 x 10.8 x 4.6" / 463.8 x 274.8 x 116.5 mm
    Without Stand: 18.3 x 10.8 x 0.9" / 463.8 x 274.8 x 25.2 mm
    Weight With Stand: 7.9 lb / 3.6 kg
    Without Stand: 5.1 lb / 2.3 kg
    Packaging Info
    Package Weight 13.35 lb
    Box Dimensions (LxWxH) 21.9 x 16.7 x 5.4"
    The user manual for the ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ASUS users keep a unique electronic library for ASUS computer monitorss, where you can use our link to download the user manual for the ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q.

    The user manual lists all of the functions of the ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ASUS service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ASUS PT201Q 19.5" Widescreen Pen Touch Monitor PT201Q. User manuals are also available on the ASUS website under Computers & Solutions - Monitors & Displays - Computer Monitors.
