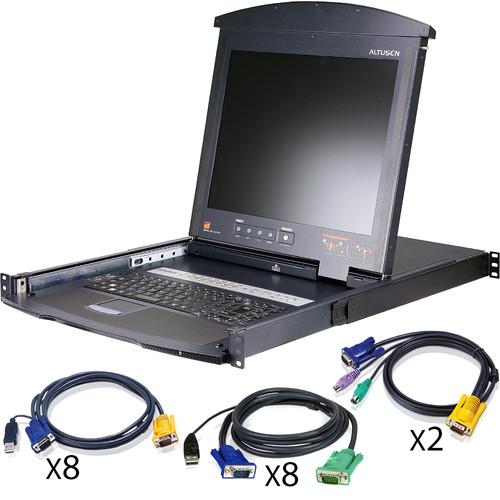

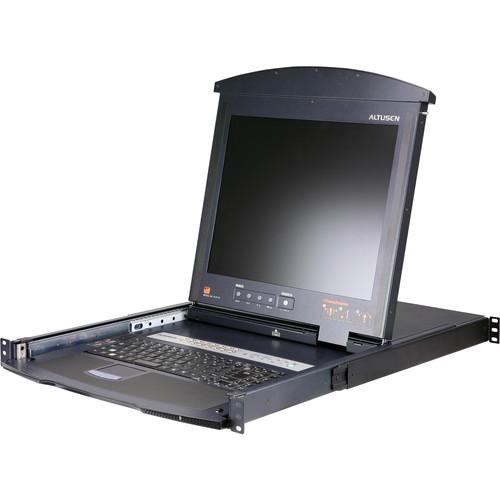

The KL9116MUKIT 17" 16-Port Dual Rail LCD IP KVM Console with Kit from ATEN is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers from multiple consoles. A single KL9116 can control up to 16 computers and can be accessed from any computer on the Net. It features an independently retractable 17" LCD monitor and keyboard with a built-in touchpad. To maximize space in your data centre the keyboard hides away when not in use, while the thin profile LCD monitor provides continuous monitoring of computers.
If you own a ATEN lcd consoles and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ATEN KL9116MUKIT 17" 16-Port Dual Rail LCD IP KL9116MUKIT in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ATEN KL9116MUKIT 17" 16-Port Dual Rail LCD IP KL9116MUKIT:
Specifications
Housing
Case: Metal
Console Connectors
Mouse: 1 x 6-pin Mini-DIN female (green) Keyboard: 1 x 6-pin Mini-DIN female (purple) Monitor: 1 x VGA (HDDB-15) female
LEDs
Power On: 1 x blue at front panel Selected: 16 (orange) On Line: 16 (green) Station ID: 2 digits 7 segment at keyboard pad module (orange) Link: 1 (green) 10/100 Mb/s: 1 (orange/green)
Port Selection
OSD, hotkey, Pushbutton
Power Consumption
120 V/31 W 230 V/39 W
Video Resolution
1280 x 1024, DDC2B Remote: 1600 x 1200 at 60 Hz, DDC2B
Scan Interval
1 to 255 Sec
Emulation
Keyboard: PS/2 Mouse: PS/2
Computer Connections
Direct: 16 Daisy Chain or Cascading: 128 (via Cascade)
Ports
Selection: 2 x Pushbutton
CPU Connectors
Keyboard/Mouse/Monitor: 16 x SPHD-15 female (yellow)
Connectors
Mouse: 1 x 6-pin mini-DIN female (green) Power: 1 x 3-Prong AC socket PON: 1 x DB-9 male (black) LAN: 1 x RJ-45 female (black)
Console Connection
1 x Local 1 x Remote
Switches
Power: 1 x Rocker Reset: 1 x Semi-recessed pushbutton
Power Input Rating
Per AC Power Inlet: 50/60 Hz 100 to 240 VAC, 1 A
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 140°F (-20 to 60°C)
Humidity
0 to 80% RH
Dimensions (W x H x D)
19 x 1.7 x 28" (48.2 x 4.4 x 71 cm)
Weight
38.2 lb (17.3 kg)
