User manual for the ATEN VC010 VGA EDID Emulator VC010
The user manual for the ATEN VC010 VGA EDID Emulator VC010 provides
necessary instructions for the proper use of the product A/V Presentation - Cables & Accessories - EDID Emulators.
The VC010 VGA EDID Emulator from ATEN is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the VGA source device to efficiently optimize video resolution.
The ATEN VGA EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store, and manage EDID settings.
If you own a ATEN edid emulators and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ATEN VC010 VGA EDID Emulator VC010 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ATEN VC010 VGA EDID Emulator VC010:
Specifications
Connectors

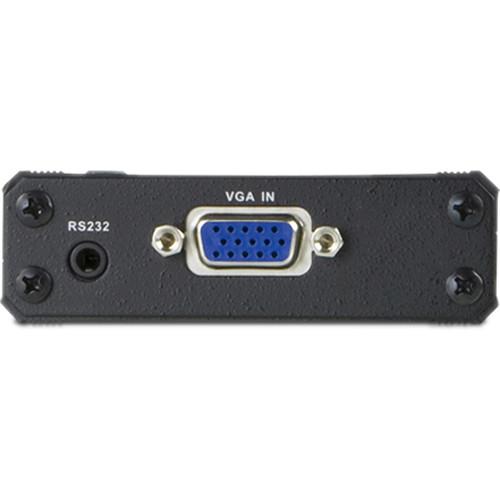

Video In: 1 x HDB-15 female (blue) Video Out: 1 x HDB-15 female (blue) RS-232 Port: 1 x mini jack (black) Power Jack: 1 x DC jack
Switches
Learn / Select: 1 x pushbutton
LEDs
EDID Set: 4 (green)
Video
1920 x 1200; 1080p
Power Consumption
5 VDC; 0.15 W
Environment
Operating Temperature: 32 to 122˚F (0 to 50˚C) Storage Temperature: -4 to 140˚F (-20 to 60˚C) Humidity: 0 to 80% RH, non-condensing
Physical Properties
Housing: Metal Dimensions (L x W x H): 3.11 x 3.06 x 1.00" (7.90 x 7.76 x 2.55 cm) Weight: 0.3 lb (0.15 kg)
The user manual for the ATEN VC010 VGA EDID Emulator VC010 can be downloaded in .pdf
format if it did not come with your new edid emulators, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other ATEN users keep a unique electronic library
for ATEN edid emulatorss,
where you can use our link to download the user manual for the ATEN VC010 VGA EDID Emulator VC010.
The user manual lists all of the functions of the ATEN VC010 VGA EDID Emulator VC010,
all the basic and advanced features and tells you how to use the edid emulators.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from ATEN service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the ATEN VC010 VGA EDID Emulator VC010. User manuals are also
available on the ATEN website under A/V Presentation - Cables & Accessories - EDID Emulators.
