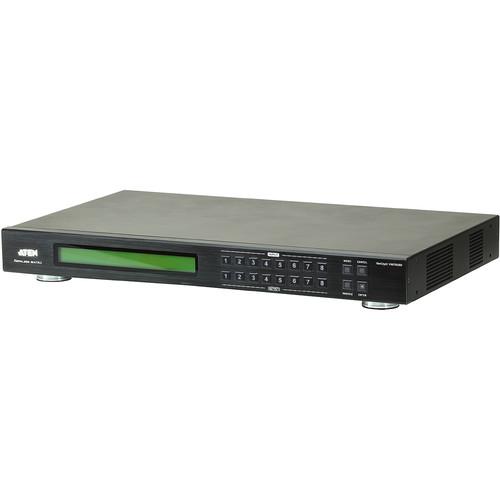

The VM5808D 8x8 DVI Matrix Switch with Scaler from Aten is designed to route any of eight DVI video sources to any of eight DVI displays. It also features a front panel LCD for easily viewing all port connections. A built-in scaler enables the switch to convert various input resolutions into various output display resolutions, providing maximum video and picture quality to all displays. The matrix switch's design includes FPGA architecture for seamless switching, continuous video streams, real-time control, and stable signal transmissions. The switch can integrate video wall functionality with an easy-to-use web GUI, allowing you to create 16 connection profiles that can be customized into different video wall layouts.
If you own a ATEN routers & switchers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ATEN VM5808D 8x8 DVI Matrix Switch with Scaler VM5808D in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ATEN VM5808D 8x8 DVI Matrix Switch with Scaler VM5808D:
Specifications
Video Input
Interface: 8 x DVI-D Type A female Impedance: 100 ohms Maximum distance: 5.9' / 1.8 m
Video Output
Interface: 8 x DVI-D Type A female Impedance: 100 ohms
Video
Maximum data rate: 6.75 GB per sec Maximum pixel clock: 225 MHz Compliance: HDCP 1.4 compatible Maximum resolution: up to 1920 x 1200 Maximum distance: up to 16.4' / 5.0 m
Connectors
RS-232: 1 x DB-9 female Ethernet: 1 x RJ-45 female IR: 1 x mini stereo jack female
Baud Rate & Protocol
Baud rate: 19200 Data bits: 8, stop bits: 1 Parity: No Flow control: No
EDID
Settings: Default, port 1, remix, customized
Power
Connector: 1 x 3-prong AC socket I/P Rating: 100 to 240 VAC, 50 to 60 Hz, 1.0 A Consumption: 120 VAC, 56.4 W, 230 VAC, 55.9 W
Operating Temperature
32 to 122°F / 0 to 50°C Humidity: 0-80% RH, non-condensing
Storage Temperature
-4 to 140°F / -20 to 60°C Humidity: 0-80% RH, non-condensing
