User manual Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35

Operating instructions and pdf manual for use - Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35 User manual, User manual Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35, Atlas, Sound, AA35, 35W, Three-Channel, Mixer/Amplifier, A


User manual for Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35
  • Manufacturer: Atlas Sound
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Mixer/Amplifiers
  • Safety instructions
  • Startup and operation of the mixer/amplifiers
  • Tips for setting up your Atlas Sound
  • Settings and expert assistance
  • Contact Atlas Sound service
  • Troubleshooting
  • Warranty information
  • Price: 229 USD
We recommend checking out our discussion threads on the Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35, which address similar problems with connecting and setting up Mixer/Amplifiers Atlas Sound.



User manual for the Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35

The user manual for the Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Mixer/Amplifiers.

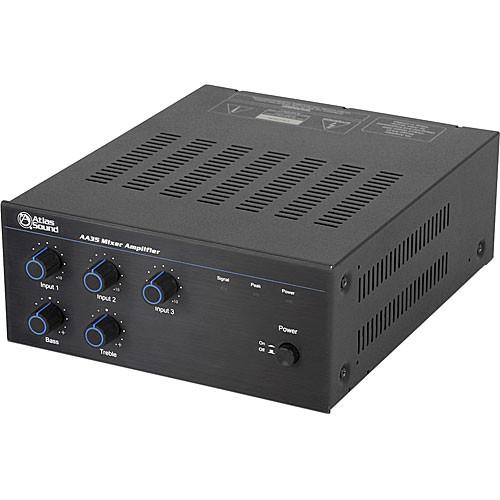

The AA35 from Atlas is a rack mountable three-channel mixer/amplifier ideal for paging, background music, or music-on-hold applications in professional venues. It offers three inputs for accepting a microphone, or audio from devices such as CD or DVD players. This audio can be sent to loudspeakers, or other sound system components.

The front panel of the AA35 offers level controls for each of the three audio inputs for precise adjustments. Bass and treble tone controls are also available. The rear panel provides a set of DIP switches for assigning zone preferences, setting phantom power, mute preferences, and a low cut filter. A screw terminal strip allows you to connect a variety of loudspeakers, and direct outputs let you connect to recorders, mixers, and other standard audio equipment.
If you own a Atlas Sound mixer/amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35Download user manual for Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35
(PDF file, 0.78 MB)
Additional parameters of the Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35:
Power Output 35W RMS
Frequency Response 50Hz - 20kHz
THD + N 0.5% or Less @ 1kHz, Rated Output
0.1% or Less @ 1khz, 5W Output
Sensitivity Input 1 Mic: 0.316-3.16mV
Input 1 Tel/Line: 316mV, 10 kOhms
Input 2/3: 316mV, 10 kOhms
Signal to Noise Ratio Mic/Line/Tel: >55dB
Input 2/3: >75dB
Connectors 1 x Power Output
1 x Mic/Line Phoenix Input
2 x L/R Stereo RCA Inputs
1 x Phoenix Zone 2 Output
1 x A/B RCA Line Output
1 x RCA Pre Out
1 x RCA Amp Input
1 x Speaker Output Terminal Strip
Dimensions (HxWxD) 3.7 x 8.3 x 10.9" (94 x 210 x 276mm)
Weight 10.2 lbs (4.6kg)
Packaging Info
Package Weight 12.0 lb
Box Dimensions (LxWxH) 14.1 x 11.7 x 7.1"
The user manual for the Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35 can be downloaded in .pdf format if it did not come with your new mixer/amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Atlas Sound users keep a unique electronic library for Atlas Sound mixer/amplifierss, where you can use our link to download the user manual for the Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35.

The user manual lists all of the functions of the Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35, all the basic and advanced features and tells you how to use the mixer/amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Atlas Sound service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Atlas Sound AA35 - 35W Three-Channel Mixer/Amplifier AA35. User manuals are also available on the Atlas Sound website under Pro Audio - Installation Sound - Mixer/Amplifiers.
