User manual Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W

Operating instructions and pdf manual for use - Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W User manual, User manual Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W, Atlas, Sound, SD72W, Dual, Cone, Ceiling, Speaker,


User manual for Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

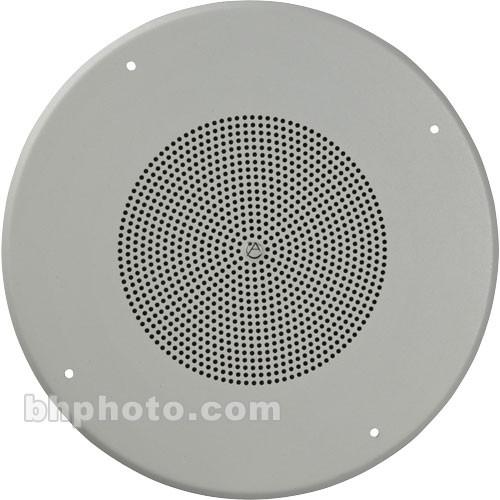

Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W
  • Manufacturer: Atlas Sound
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Speakers
  • Safety instructions
  • Startup and operation of the install speakers
  • Tips for setting up your Atlas Sound
  • Settings and expert assistance
  • Contact Atlas Sound service
  • Troubleshooting
  • Warranty information
  • Price: 28 USD
We recommend checking out our discussion threads on the Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W, which address similar problems with connecting and setting up Install Speakers Atlas Sound.



User manual for the Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W

The user manual for the Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

Atlas Sound's SD72W Dual Cone Ceiling Speaker with Baffle is a high-quality speaker/baffle combination for use in a variety of venues from restaurants to schools. The speaker used in the SD72W is very similar to the preceding C-Series speakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the Atlas Sound C-Series in the past will know exactly what to expect when they use the SD72W.

Model SD72W is a dual cone, 25 watt 8" (205mm) loudspeaker with a 10oz. (260g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts. Model SD72W operates within a frequency response range of 45Hz - 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°.

The SD72W includes a factory installed CRS baffle with concealed loudspeaker mounting studs and includes screw mount hardware. The SD72W baffle features standard mounting holes to accommodate the majority of Atlas Sound 8" tile bridges, mounting rings and enclosures. When specifying mounting hardware, be advised that the dimensions of the SD72W baffle match the Atlas Sound Model 62-8. The baffle finish is white powder coat epoxy.
If you own a Atlas Sound install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W:
Frequency Response 45Hz-19kHz Nominal, 55Hz-8kHz
Maximum Power Handling 25W Peak, 15W RMS
Power Taps .25, .5, 1, 2, & 5 watts
Impedance 70.7/25V (4W Transformer)
SPL Not Specified By Manufacturer
Beamwidth Not Specified By Manufacturer
Horizontal Beamwidth Not Specified By Manufacturer
Vertical Beamwidth Not Specified By Manufacturer
Sensitivity 97 dB Average
Dispersion 105° (2 kHz Octave Band, -6 dB Points)
Construction Treated Paper
UL Listed 1480, 2043
Magnet 10 oz. Ceramic Magnet
Voice Coil 1" (25 mm) Copper
Dimensions (HxWxD) Diameter: 8.1" (205 mm)
Depth: 2.9" (73 mm)
Weight 32 oz. (908 g)
Packaging Info
Package Weight 4.5 lb
Box Dimensions (LxWxH) 14.1 x 14.0 x 3.6"
The user manual for the Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Atlas Sound users keep a unique electronic library for Atlas Sound install speakerss, where you can use our link to download the user manual for the Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W.

The user manual lists all of the functions of the Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Atlas Sound service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Atlas Sound SD72W Dual Cone Ceiling Speaker with Baffle SD72W. User manuals are also available on the Atlas Sound website under Pro Audio - Installation Sound - Install Speakers.
