User manual Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A

Operating instructions and pdf manual for use - Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A User manual, User manual Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A, Atlona, 2x1, VGA, , Analog, Stereo, Audio, Switcher, AT-APC21A


User manual for Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A

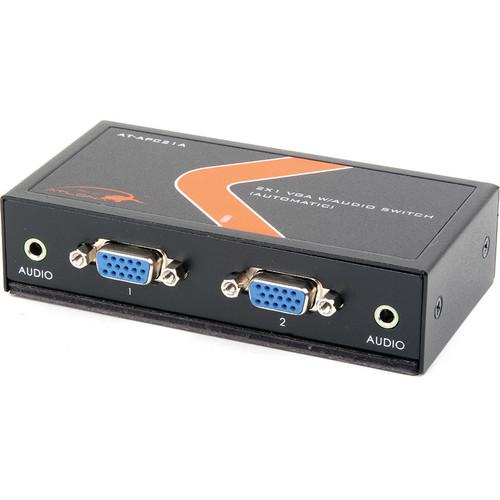

Atlona 2x1 VGA   Analog Stereo Audio Switcher AT-APC21A
  • Manufacturer: Atlona
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Routers & Switchers
  • Safety instructions
  • Startup and operation of the routers & switchers
  • Tips for setting up your Atlona
  • Settings and expert assistance
  • Contact Atlona service
  • Troubleshooting
  • Warranty information
  • Price: 180 USD
We recommend checking out our discussion threads on the Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A, which address similar problems with connecting and setting up Routers & Switchers Atlona.



User manual for the Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A

The user manual for the Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

The Altona 2x1 VGA + Analog Stereo Audio Switcher is a high-performance switcher that automatically senses an active video signal and routes it to the desired display. Offering 2 audio/video inputs and 1 output, the unit is capable of VGA resolutions up to 2048 x 1536, and is perfect for connecting two VGA devices. Its magnetic pad allows for easy installation in conference rooms, surveillance hubs, and video game consoles. A manual switch is also included for added convenience.
If you own a Atlona routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Atlona 2x1 VGA   Analog Stereo Audio Switcher AT-APC21ADownload user manual for Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A
(PDF file, 2.82 MB)
Additional parameters of the Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A:
Resolution Up to 2048 x 1536
Bandwidth 350MHz @ (-3dB)
Signal Format VGA, XGA, SVGA, UXGA, WUXGA, Multi-Sync, TFT-LCD Monitor
Audio Frequency Response Not specified by manufacturer
Connectors HD VGA/Component: 15-pin D-Sub (x2 Input, x1 Output)
Analog Audio: 3.5mm Mini Jack (x2 Input, x1 Output)
Manual Selector Jack (x1)
Operating Temperature 32° to 122°F (0° to 50°C)
Power Requirements Taken from VGA signal
5VDC Power Adapter (optional)
Power Consumption N/A
Dimensions (WxHxD) 2.44 x 1.14 x 4.44" (6.2 x 2.9 x 11.3 cm)
Weight Not specified by manufacturer
Packaging Info
Package Weight 1.2 lb
Box Dimensions (LxWxH) 8.5 x 4.2 x 3.2"
The user manual for the Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Atlona users keep a unique electronic library for Atlona routers & switcherss, where you can use our link to download the user manual for the Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A.

The user manual lists all of the functions of the Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A, all the basic and advanced features and tells you how to use the routers & switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Atlona service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Atlona 2x1 VGA Analog Stereo Audio Switcher AT-APC21A. User manuals are also available on the Atlona website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
