User manual Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB

Operating instructions and pdf manual for use - Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB User manual, User manual Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB, Audio-Technica, AT-LP120USB, Direct, Drive, AT-LP120BK-USB,


User manual for Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB
  • Manufacturer: Audio-Technica
  • Basic description and contents of package
  • Product classification: Pro Audio - DJ Equipment - Turntables
  • Safety instructions
  • Startup and operation of the turntables
  • Tips for setting up your Audio-Technica
  • Settings and expert assistance
  • Contact Audio-Technica service
  • Troubleshooting
  • Warranty information

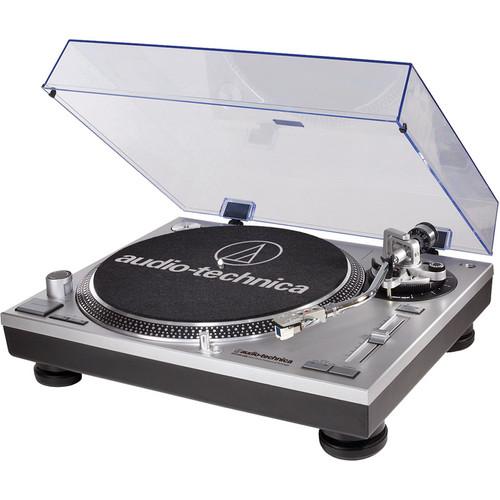

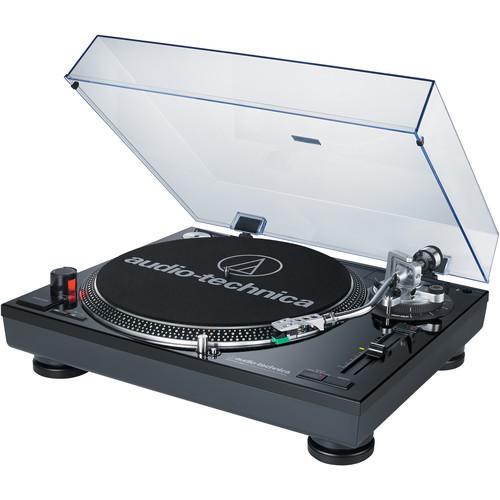

Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB
Click to enlarge image

We recommend checking out our discussion threads on the Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB, which address similar problems with connecting and setting up Turntables Audio-Technica.



User manual for the Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB

The user manual for the Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB provides necessary instructions for the proper use of the product Pro Audio - DJ Equipment - Turntables.

The black Audio-Technica AT-LP120USB Direct Drive Professional DJ Turntable delivers a host of features that are suitable for use in nightclub DJ booths and mobile and home DJ applications. The AT-LP120USB features a rugged cast aluminum construction with line and phono audio outputs. A USB output will interface with Mac or Windows computers and give DJs the ability to digitize their vinyl collections. Audacity recording software is also included for Mac and Windows. Additional features include 33 1/3, 45 and 78 rpm speeds, +/- 20% and 10% quartz pitch control, and reverse mode.
If you own a Audio-Technica turntables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB:
Specifications
Cartridge Specifications
Frequency Response 20 Hz to 20 kHz
Channel Separation > 20 dB at 1 kHz
Tracking Force Vertical Tracking Force: 1.5 to 2.5 g
Stylus Stylus Construction: Bonded round shank
Stylus Shape: 0.02 x 0.03" / 0.40 x 0.70 mm elliptical
Stylus Cantilever: Aluminum
Output 3.5 mV at 1 kHz, 5 cm/sec
Channel Balance 2.0 dB
Mount 0.5" / 12.7 mm
Replacement Stylus ATN95E
Turntable
Type 3-speed, fully manual
Output Connectors Phono RCA
Line RCA
USB
Motor Direct Drive DC Motor
Speeds 33-1/3, 45, 78 rpm
Brake Electronic Brake
Pitch Control Range +/-10% or +/-20%
Wow and Flutter < 0.2% WRMS (33 rpm)
Signal-to-Noise Ratio > 50 dB
Turntable Platter Die-cast aluminum
Torque Starting Torque: > 1.6 kgf.cm
Output Level Phono Pre-Amp: 2.5 mV nominal at 1 kHz, 5 cm/sec
Line Pre-Amp: 150 mV nominal at 1 kHz, 5 cm/sec
Gain Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
USB Functions A/D, D/A: 16-bit, 44.1 kHz or 48 kHz USB selectable
Computer Interface: USB 1.1 Compliant Windows XP, Vista or MAC OSX
Power Power supply Requirements: 115/230 VAC, 60/50 Hz
Power Consumption: 11 W
Dimensions (WxDxH) 17.72 x 13.86 x 6.10" (450 x 352 x 157 mm)
Weight 23.5 lb (10.7 kg)
Packaging Info
Package Weight 27.0 lb
Box Dimensions (LxWxH) 21.5 x 16.5 x 8.0"
The user manual for the Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB can be downloaded in .pdf format if it did not come with your new turntables, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Audio-Technica users keep a unique electronic library for Audio-Technica turntabless, where you can use our link to download the user manual for the Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB.

The user manual lists all of the functions of the Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB, all the basic and advanced features and tells you how to use the turntables. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Audio-Technica service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Audio-Technica AT-LP120USB Direct Drive AT-LP120BK-USB. User manuals are also available on the Audio-Technica website under Pro Audio - DJ Equipment - Turntables.
