User manual Audio-Technica ATW-1821 Dual Wireless Microphone System

Operating instructions and pdf manual for use - Audio-Technica ATW-1821 Dual Wireless Microphone System User manual, User manual Audio-Technica ATW-1821 Dual Wireless Microphone System, Audio-Technica, ATW-1821, Dual, Wireless, Microphone, System


User manual for Audio-Technica ATW-1821 Dual Wireless Microphone System

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

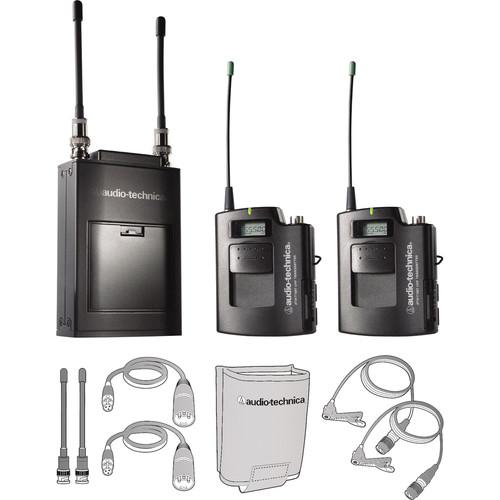

Audio-Technica ATW-1821 Dual Wireless Microphone System
  • Manufacturer: Audio-Technica
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Audio-Technica
  • Settings and expert assistance
  • Contact Audio-Technica service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Audio-Technica ATW-1821 Dual Wireless Microphone System, which address similar problems with connecting and setting up Wireless Systems Audio-Technica.



User manual for the Audio-Technica ATW-1821 Dual Wireless Microphone System

The user manual for the Audio-Technica ATW-1821 Dual Wireless Microphone System provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

The Audio-Technica 1800 Series provides a professional, dual wireless portable solution, while addressing the issues of portability, function and cost.
If you own a Audio-Technica wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Audio-Technica ATW-1821 Dual Wireless Microphone System in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Audio-Technica ATW-1821 Dual Wireless Microphone SystemDownload user manual for Audio-Technica ATW-1821 Dual Wireless Microphone System
(PDF file, 0.5 MB)
Additional parameters of the Audio-Technica ATW-1821 Dual Wireless Microphone System:
System
Type of System Dual Camera Mount UHF
RF Carrier Frequency Range UHF Band D: 655.500 to 680.375 MHz
Approx. Working Range 100 m (300') typical
Overall Frequency Response 70Hz to 15kHz
Signal-to-Noise Ratio 104 dB at 30 kHz deviation (A-weighted), maximum modulation 37 kHz
# Of Channels 996 total per band (25 kHz increments)
# Of Simultaneous Systems Not Specified By Manufacturer
Receiver
Type of Receiver Dual independent RF sections, automatic-switching diversity
Type of Outputs 3-pin Mini XLR (TA3)
Headphone Monitoring 3.5 mm TRS, signals on both Tip and Ring
Power Requirements 12V DC nominal, 500 mA
Battery Type/Approx. Life Six 1.5V AA alkaline (not included)
Dual-channel Operation: 6 hours typical
Single-channel Operation: 10 hours typical
Display LCD frequency and battery status display with back-light
Antenna and AF Peak LED indicators
Mounting Options No
Antenna Type Dual BNC
Dimensions (WxHxD) 3.35 x 5.24 x 1.42" (85 x 133 x 36mm)
Weight 425 g (15 oz)
Transmitter
Type of Transmitter UHF Frequency Agile Bodypack
Type of Input Connector Hirose 4-Pin
Type of Microphone Lavalier
Polar Pattern Omnidirectional
Interchangeable Mic Heads No
Battery Type/Approx. Life Two 1.5V AA alkaline (not included)
Mute Switch Yes
Level Control Yes
Antenna Type Flexible Whip
Display LCD frequency and battery status display with back-light
Antenna and AF Peak LED indicators
Dimensions (WxDxH) 2.60 x 3.43 x 0.94" (66.0 x 87 x 24mm)
Weight 80 grams (2.8 oz) (without batteries)
Packaging Info
Package Weight 3.0 lb
Box Dimensions (LxWxH) 15.2 x 9.2 x 3.4"
The user manual for the Audio-Technica ATW-1821 Dual Wireless Microphone System can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Audio-Technica users keep a unique electronic library for Audio-Technica wireless systemss, where you can use our link to download the user manual for the Audio-Technica ATW-1821 Dual Wireless Microphone System.

The user manual lists all of the functions of the Audio-Technica ATW-1821 Dual Wireless Microphone System, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Audio-Technica service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Audio-Technica ATW-1821 Dual Wireless Microphone System. User manuals are also available on the Audio-Technica website under Pro Audio - Location Sound - Wireless Systems.
