User manual Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R

Operating instructions and pdf manual for use - Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R User manual, User manual Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R, Audioengine, A2, 2.75, Powered, Desktop, Speakers, Red, A2


User manual for Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Audioengine A2  2.75
  • Manufacturer: Audioengine
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Peripherals - Computer Speakers
  • Safety instructions
  • Startup and operation of the computer speakers
  • Tips for setting up your Audioengine
  • Settings and expert assistance
  • Contact Audioengine service
  • Troubleshooting
  • Warranty information
  • Price: 249 USD

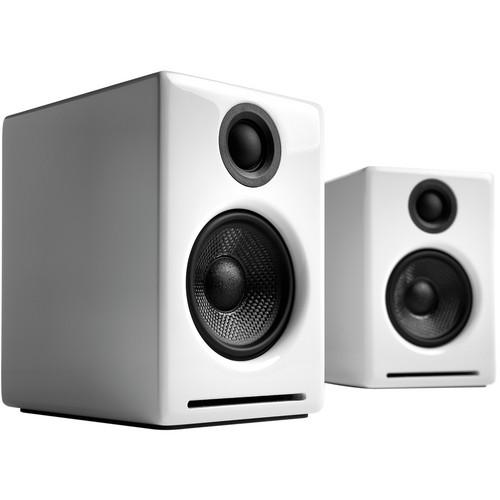

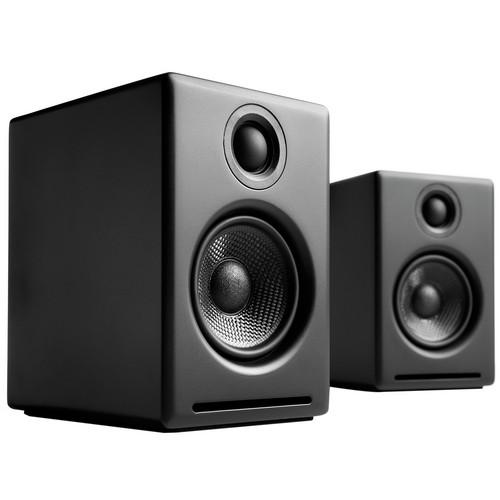

Audioengine A2  2.75 Audioengine A2  2.75 Audioengine A2  2.75
Click to enlarge image

We recommend checking out our discussion threads on the Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R, which address similar problems with connecting and setting up Computer Speakers Audioengine.



User manual for the Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R

The user manual for the Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R provides necessary instructions for the proper use of the product Computers & Solutions - Computer Peripherals - Computer Speakers.

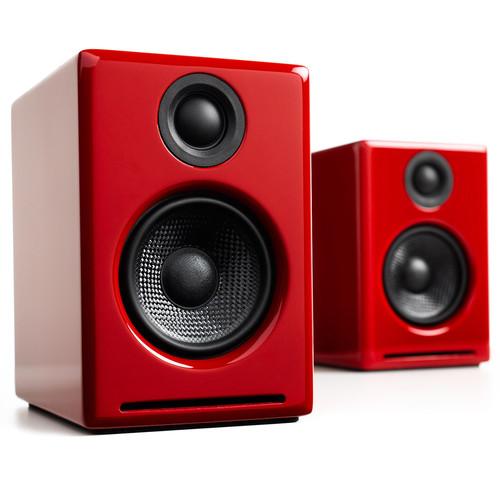

The red A2+ 2.75" Powered Desktop Speakers from Audioengine are a 2.0 speaker system that features a powered and passive speaker. Each speaker incorporates a 2.75" Kevlar woofer and ¾" silk dome tweeter that can produce up to 30-watts of peak power. With a frequency response of 65 Hz to 22 kHz, the Audioengine A2+ speaker system can handle a wide range of audio material. The speakers also feature magnetically shielded designs to avoid interfering with closely placed video monitors.

The Audioengine A2+ speaker system uses a built-in TI/Burr Brown PCM2704C DAC for high-quality digital to analog conversion. A USB input is onboard for connecting digital devices like MP3 players. The USB port can also provide a high-quality digital connection directly to your computer, and doesn't require software for installation. RCA and ⅛" inputs are also available for connecting various types of audio sources such as computers and game consoles. USB and ⅛" audio cables are included with the A2+ speaker system. A variable RCA audio output is also built-in for connecting external components like subwoofers.

The left speaker in the Audioengine A2+ speaker system houses the power amplifier, audio connections, volume control, and power supply, while the passive right speaker connects to the left speaker via speaker wire. A 16 AWG speaker wire is included for this connection.
If you own a Audioengine computer speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Audioengine A2  2.75Download user manual for Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R
(PDF file, 0.95 MB)
Additional parameters of the Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R:
Specifications
Type 2.0 powered (active) multimedia desktop speaker system
Amplifier Dual class AB monolithic
Power Output 60 W peak power total (15 W RMS / 30 W peak per channel), AES
Woofer 1 x 2.75" (7.00 cm) Kevlar
Tweeter 1 x ¾" (1.9 cm) silk dome
Inputs Left Speaker:
1 x ⅛" (3.5 mm) stereo mini-jack
1 x Stereo RCA
1 x USB

Right Speaker:
1x Left speaker connector (dual posts)
Outputs Left Speaker:
1 x Stereo RCA
1 x Right speaker connector (dual posts)
SNR >95 dB (typical A-weighted)
THD + N <0.05 % at all power settings
Crosstalk -50 dB
Frequency Response 65 Hz to 22 kHz (±2.0 dB)
Input Impedance 10 kOhms unbalanced
DAC TI/Burr Brown PCM2704C
Input Bit Depth Up to 16 bits native
Input Sample Rate Up to 48 kHz native
USB Device Support Type 1.1 or above
Protection Output current limiting, thermal over-temperature, power on/off transient protection
Power Requirements 110 to 240 VAC, 50/60 Hz auto-switching
Dimensions (H x W x D) Each Speaker: 6.00 x 4.00 x 5.30" (15.20 x 10.16 x 13.50 cm)
Weight Left Speaker: 3.6 lb (1.6 kg)
Right Speaker: 3.2 lb (1.5 kg)
Packaging Info
Package Weight 9.75 lb
Box Dimensions (LxWxH) 15.1 x 11.2 x 7.6"
The user manual for the Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R can be downloaded in .pdf format if it did not come with your new computer speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Audioengine users keep a unique electronic library for Audioengine computer speakerss, where you can use our link to download the user manual for the Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R.

The user manual lists all of the functions of the Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R, all the basic and advanced features and tells you how to use the computer speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Audioengine service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Audioengine A2 2.75" Powered Desktop Speakers (Red) A2 R. User manuals are also available on the Audioengine website under Computers & Solutions - Computer Peripherals - Computer Speakers.
