User manual for the Avid MC 7 Interplay Edition & Mojo DX 9935-65494-00

The user manual for the Avid MC 7 Interplay Edition & Mojo DX 9935-65494-00 provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

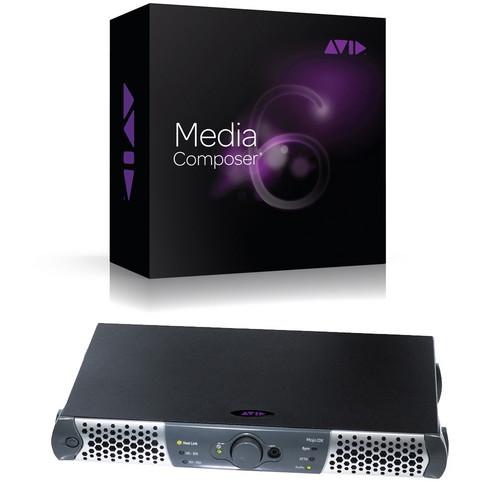

Avid MC 7 Interplay Edition & Mojo DX with Expert Plus is a single license of the 64-bit non-linear editing system for Mac or Windows computers and is compatible with available Avid Interplay solutions, allowing it to interface with your existing Interplay system. You receive an activation card to activate the software on one computer. Media Composer 7 allows you to work with most file formats and resolutions, including SD, HD, stereoscopic (3D), and resolutions above HD, using ACE certified editing tools. It also features built-in effects, transitions, and titling tools. With Media Composer 7, you can mix and match different formats, frame rates, and resolutions in the same timeline without rendering. Media Composer 7 features Full 4:4:4 HD RGB support, color correction tools, and ProRes encoding (Mac version only.)

Featuring built-in support for stereoscopic/3D footage, it is a full-fledged stereoscopic editing system. It is also compatible with a wide range of effects plug-ins. It features a multicam editing mode for cutting between 9 cameras simultaneously. For audio support, Media Composer 7 features built-in 7.1 surround sound support and audio mixing of up to 64 audio voices. It also features improved audio keyframing on the timeline and supports Pro Tools RTAS plug-ins. It supports available Avid and non-Avid hardware I/O cards and devices and comes bundled with Avid FX (Boris RED), Sorenson Squeeze, and AVID DVD, which allows you to author DVDs.

Avid's Mojo DX is an I/O device that connects to your computer using the included PCIe board. It provides input/output support for SD/HD-SDI, SDI embedded audio and two channels of Optical SPDIF or eight channels of Optical ADAT. It features an HDMI monitoring output, stereo headphone jack, and RS-422 control.
If you own a Avid computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Avid MC 7 Interplay Edition & Mojo DX 9935-65494-00 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Avid MC 7 Interplay Edition & Mojo DX 9935-65494-00Download user manual for Avid MC 7 Interplay Edition & Mojo DX 9935-65494-00
(PDF file, 32.35 MB)
Additional parameters of the Avid MC 7 Interplay Edition & Mojo DX 9935-65494-00:
Specifications
    Media
    Native Codec Support Avid DNxHD 444
    All DNxHD 444 Formats

    Avid DNxHD
    All DNxHD formats

    Avid Compressed SD Resolutions
    AVR (playback only)
    15:1s, 4:1s, 2:1s
    20:1, 10:1, 3:1, 2:1
    35:1p, 28:1p, 14:1p, 3:1p, 2:1p
    4:1m, 10:1m, 3:1m(p), 8:1m(p)

    Avid Proxy Formats
    Interplay MPEG-2 proxy, MPEG-4 proxy, 720p H.264 proxy (transcode service only)

    Canon XF
    50 Mb/s, 4:2:2

    DV
    DV25 / DVCAM (25 Mb/s): 4:1:1 NTSC, 4:1:1 PAL, 4:2:0 PAL, 24p
    DV50 (50 Mb/s)

    HDV
    JVC HDV (19 Mb/s) 720p
    Sony HDV (25 Mb/s) 1080 @ 24p/25/50i/59.94i
    Canon HDV 1080 at 24p/50i/59.94i
    Native project formats: 1080i/59.94, 1080i/50, 720p/23.976 (with support for 24p material), 720p/25, 720p/29.97, 720p/50, 720/59.94
    Capture over IEEE-1394, edit, playback, export to file without timecode

    Ikegami GFCAM
    GFCAM 50 Mb/s
    GFCAM 100 Mb/s

    JVC ProHD
    Microsoft VC-1: VC-1 (edit/playback on Intel Macs only)

    Panasonic AVC-Intra

    Panasonic DVCPRO (SD)
    DVCPRO 25 Mb/s
    DVCPRO50 50 Mb/s

    Panasonic DVCPRO HD
    DVCPRO HD 100 Mb/s
    AVC-Intra (baseband capture over HD-SDI requires AVC-Intra encoding module with Avid Nitris DX-sold separately)
    Native project formats: 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 720p/25, 720p/23.976

    ProRes
    ProRes encode (Mac only) and decode
    Full metadata support

    Sony XDCAM (SD)
    DV 25 Mb/s
    IMX30 30 Mb/s
    IMX40 40 Mb/s
    IMX50 50 Mb/s
    Full ancillary data support through AMA

    Sony XDCAM EX
    MPEG 25 Mb/s CBR
    MPEG 35 Mb/s VBR
    Full ancillary data support through AMA

    Sony XDCAM HD
    MPEG 18 Mb/s VBR
    MPEG 25 Mb/s VBR
    MPEG 25 Mb/s CBR
    MPEG 35 Mb/s VBR
    MPEG 50 Mb/s CBR
    MPEG-4 Proxies
    Full ancillary data support through AMA
    Supported A/V Plug-In Formats Audio
    RTAS (Real-Time AudioSuite)
    AudioSuite

    Video
    AMA (Avid Media Access)
    AVX 2 (Avid Video Extension)
    Uncompressed SD and HD Video SD
    1:1 interlaced 8/10-bit
    1:1 progressive 8/10-bit

    HD
    1:1 8/10-bit
    YUV 4:2:2
    RGB 4:4:4 (via dual link HDSDI)
    File-Based Support ARRI ALEXA MXF

    AVCHD
    Full native direct access to AVCHD media and metadata
    Native editing of all listed formats

    Canon XF
    Full native direct access to Canon XF media and metadata
    Native editing of all listed formats (see "Native codec support")

    Ikegami GFCAM
    Full native direct access to GFCAM material and metadata
    Native GFCAM editing of all listed formats (see "Native codec support")
    Direct edit of GFCAM media from GFPAK cards or disk drive

    JVC ProHD

    MXF
    Full native direct access to MXF media and metadata
    Native editing of all formats

    Panasonic P2
    Full native direct access to P2 media and metadata
    Native DVCPRO HD and AVC-Intra editing of all listed HD formats
    Direct edit of P2 media from cards or disk drive
    Support for P2 Store
    Write-back of finished program to P2 media (Windows only)

    QuickTime
    Full native direct access to QuickTime media and metadata (including Canon 5D and 7D media)
    Full native ProRes encode (Mac only) and decode support
    Native editing of all listed formats (see "Native codec support")
    Direct edit of QuickTime movie files

    RED
    Full native direct access to RED (.R3D) media and metadata (frame size scaled to HD)
    Full native direct access to RED ONE, EPIC, SCARLET-X (5K/4.5K/3K2K RAW, 1080p RGB, and 720p RGB) material
    Native editing of all listed formats
    Direct edit of RED (.R3D) files from a RED-FLASH card or RED-DRIVE

    Sony HDCAM SR Lite
    Full native direct access to HDCAM SR Lite media and metadata
    Native editing of all listed HD data rates (see "Native codec support")

    Sony XDCAM / XDCAM EX / XDCAM HD
    Full native direct access to XDCAM media and metadata
    Support for optical media and SxS cards
    Native editing of all listed SD and HD data rates (see "Native codec support")
    Full ancillary data support
    Import via File Access Mode (FAM) over IEEE-1394
    Ingest via FTP client over Ethernet
    Play-out and Write-back of finished program to XDCAM media
    Supported Project Formats NTSC
    23.976p/24p/30i

    PAL
    24p/25i/25p

    HD
    720p 23.976/25/29.97/50/59.94
    1080p 23.976/24,/25/29.97
    1080i 59.94/50
    Mojo DX
    Connectors Video Input
    SD/HD-SDI: 1 x BNC

    Audio Input
    Analog: 2 x 1/4" TRS
    SPDIF/ADAT: 1 x TOSlink

    Video Output
    SD/HD-SDI: 1 x BNC
    Monitoring: 1 x HDMI

    Audio Output
    Analog: 2 x 1/4" TRS
    SPDIF/ADAT: 1 x TOSlink
    Headphone: 1 x 3.5mm TRS

    Interface
    Ref Sync: 1 x BNC (Blackburst or Tri-Level Sync)
    Audio Clock Out: 1 x BNC (Output only)
    RS 422: 9-pin
    Host PCIe
    Thin Rastar Format Support HDV
    System Requirements
    Computer Avid-qualified Windows- or Mac-based computer.

    Note: video on laptops is limited to 1 stream of uncompressed SD video, except for Windows-based Intel Core i7 laptops (Quad Core with Hyper-Threading) with eSATA storage, which can play multiple streams.
    Operating System Windows 7 Professional SP1 (64-bit), Windows 8 Professional or Enterprise (64-bit)
    Mac OS X Lion and Mountain Lion (64-bit).

    Note: Avid does not supply support for non-Avid-qualified systems.
    Processor Intel Quad Core i7 or Quad Core Xeon processor
    Memory 4 GB RAM minimum (6+ GB recommended)
    8 GB RAM minimum required to support Interplay Sphere, background transcoding, and Dynamic Media Folders
    16+ GB RAM recommended to support full-frame stereoscopic 3D, simultaneous background transcoding, Dynamic Media Folders, FrameFlex 4 K workflows, Raw format AMA plug-ins, Long GOP media editing, and other high-performance workflows
    Graphics Card Mac
    NVIDIA GeForce family (recommended), Intel HD4000, or ATI Radeon family (as supported by Apple)

    Windows
    NVIDIA Quadro FX family3 (Q600 or higher recommended), Intel HD4000

    NVIDIA cards are recommended; full-screen playback requires a minimum of 128 MB of graphics memory.

    Internal Hard Drive Minimum 250 GB, 7,200 rpm SATA drive or 128 GB SSD
    Compatibility QuickTime: Avid has tested and qualified Apple QuickTime X for Mac users and QuickTime 7.6.9 for Windows users
    Windows Media Player: Microsoft Windows Media Player 11 is required to export certain formats and to work with VC-1 material
    The user manual for the Avid MC 7 Interplay Edition & Mojo DX 9935-65494-00 can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Avid users keep a unique electronic library for Avid computer hardwares, where you can use our link to download the user manual for the Avid MC 7 Interplay Edition & Mojo DX 9935-65494-00.

    The user manual lists all of the functions of the Avid MC 7 Interplay Edition & Mojo DX 9935-65494-00, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Avid service.
