User manual for Avid Nitris DX AVC-Intra External Hardware 9900-65256-00

Avid Nitris DX AVC-Intra External Hardware 9900-65256-00
  • Manufacturer: Avid
  • Basic description and contents of package
  • Product classification: Professional Video - Post Production - Computer Hardware
  • Safety instructions
  • Startup and operation of the computer hardware
  • Tips for setting up your Avid
  • Settings and expert assistance
  • Contact Avid service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Avid Nitris DX AVC-Intra External Hardware 9900-65256-00, which address similar problems with connecting and setting up Computer Hardware Avid.



User manual for the Avid Nitris DX AVC-Intra External Hardware 9900-65256-00

The user manual for the Avid Nitris DX AVC-Intra External Hardware 9900-65256-00 provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

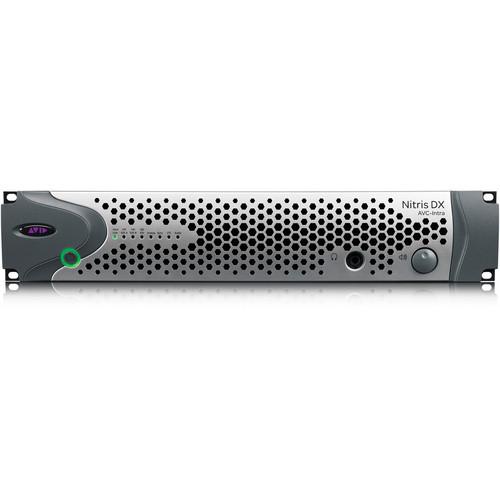

The Avid Nitris DX/ AVC-Intra External Hardware Accelerator & Input/Output Unit works with Avid's Media Composer 7, Symphony, and NewsCutter. It is more than just an input/output device, as not only does it perform real-time encoding to AVC-Intra, it also provides hardware acceleration to your system when handling files encoded as AVC-Intra, HDV, DVCPro25 and XDCAM EX. This frees up your system's CPU and GPU resources for other tasks including playback and effects rendering.

The Nitris DX features SD/HD SDI, SD/HD component, composite, and S-Video I/O connectors. It also features HDMI out for monitoring. It supports ref sync in/out, Longitudinal Timecode (LTC), and Wordclock for digital audio sync. Optional expansion boards allow you to add full frame 3D (stereoscopic) functionality with AVC-Intra or you can add an optional board for DNxHD support.
If you own a Avid computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Avid Nitris DX AVC-Intra External Hardware 9900-65256-00 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Avid Nitris DX AVC-Intra External Hardware 9900-65256-00Download user manual for Avid Nitris DX AVC-Intra External Hardware 9900-65256-00
(PDF file, 0.96 MB)
Additional parameters of the Avid Nitris DX AVC-Intra External Hardware 9900-65256-00:
Specifications
    Connectivity
    Inputs SDI: 1 x SD SDI, 2 x HD SDI
    HD-SDI: Input A, Dual-link HD-SDI (RGB 4:4:4)-Inputs A & B

    Analog video: Component (HD, SD), Composite (SD), S-Video (SD)
    Analog audio: 4-channel balanced XLR, 2-channel balanced TRS

    Digital audio: 8-channel AES (XLR via breakout cable), 8-channel ADAT, 2-channel optical S/PDIF, 8-channels of SDI embedded audio
    LTC
    Sync (Black Burst or Tri-level)

    Note: the serial port is for factory use only, and provides no user functionality.
    Outputs SDI: 1 x SD SDI, 2 x HD SDI (HD-SDI-Outputs A and B are identical, not selectable)
    Dual-link HD-SDI (RGB 4:4:4) Outputs A & B
    Analog video: Component (HD, SD), Composite (SD), S-Video (SD)
    HDMI- All rates supported
    Analog audio: 4-channel balanced XLR, 2-channel balanced TRS
    Digital audio: 8-channel AES (XLR via breakout cable), 8-channel ADAT, 2-channel optical S/PDIF
    SDI embedded audio: 8 channels on SD-SDI, 16 on HD-SDI
    LTC
    Sync (loop through)
    Audio Word clock
    Power 75 W typical, 113 W maximum
    Dimensions W x D: 2U rack, 19.0 x 9.7" (48.3 x 24.6 cm)
    Weight 13.0 lb (5.8 kg)
    The user manual for the Avid Nitris DX AVC-Intra External Hardware 9900-65256-00 can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Avid users keep a unique electronic library for Avid computer hardwares, where you can use our link to download the user manual for the Avid Nitris DX AVC-Intra External Hardware 9900-65256-00.

    The user manual lists all of the functions of the Avid Nitris DX AVC-Intra External Hardware 9900-65256-00, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Avid service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Avid Nitris DX AVC-Intra External Hardware 9900-65256-00. User manuals are also available on the Avid website under Professional Video - Post Production - Computer Hardware.
