User manual Axis Communications M7011 1-Channel Video Encoder 0764-001

Operating instructions and pdf manual for use - Axis Communications M7011 1-Channel Video Encoder 0764-001 User manual, User manual Axis Communications M7011 1-Channel Video Encoder 0764-001, Axis, Communications, M7011, 1-Channel, Video, Encoder,


User manual for Axis Communications M7011 1-Channel Video Encoder 0764-001

Axis Communications M7011 1-Channel Video Encoder 0764-001
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders
  • Safety instructions
  • Startup and operation of the video encoders & decoders
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
  • Price: 189 USD

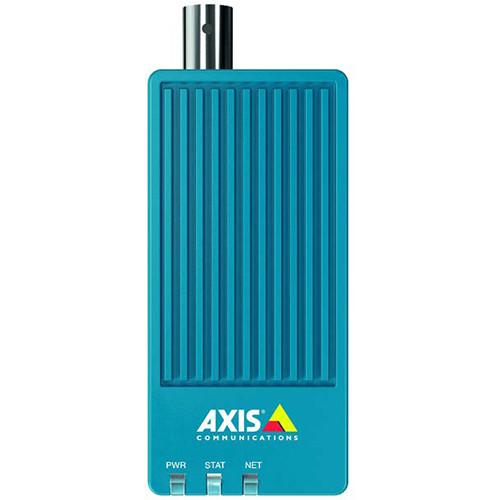

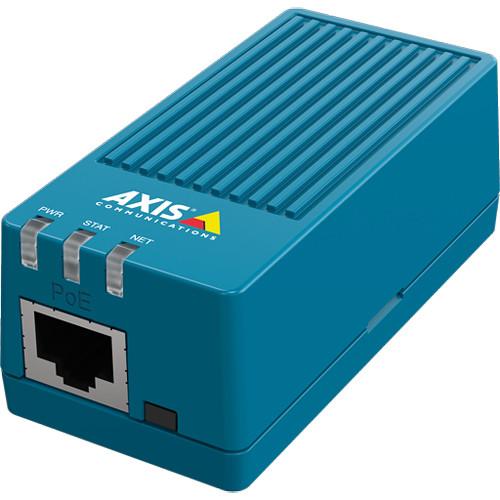

Axis Communications M7011 1-Channel Video Encoder 0764-001 Axis Communications M7011 1-Channel Video Encoder 0764-001
Click to enlarge image

We recommend checking out our discussion threads on the Axis Communications M7011 1-Channel Video Encoder 0764-001, which address similar problems with connecting and setting up Video Encoders & Decoders Axis Communications.



User manual for the Axis Communications M7011 1-Channel Video Encoder 0764-001

The user manual for the Axis Communications M7011 1-Channel Video Encoder 0764-001 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.

Switch over an analog CCTV camera to an modern IP-based surveillance system with the M7011 1-Channel Video Encoder from Axis Communitcations. It offers efficient H.264 and MJPEG video compression for high resolution D1 footage at up to 720 x 480 at 30 fps. Along with this it supports multiple streams and has an RS-485/422 port for PTZ camera control. For edge storage, it has both a microSD card slot and support for NAS. Additionally, the RJ-45 Ethernet port has support for 802.3af/at PoE and the device is ONVIF compliant.
If you own a Axis Communications video encoders & decoders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications M7011 1-Channel Video Encoder 0764-001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Axis Communications M7011 1-Channel Video Encoder 0764-001:
Specifications
Video
Video Compression H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High profile
Motion JPEG
Resolutions NTSC: 176 x 120 to 720 x 480
PAL: 176 x 144 to 720 x 576
Frame Rate 25/30 fps (PAL/NTSC) in all resolutions
Video Streaming Multiple, individually configurable streams in H.264 and MJPEG
Controllable frame rate and bandwidth, VBR/MBR H.264
Image Settings Compression, color, brightness, contrast, Rotation (0°, 90°, 180°, 270°), aspect ratio correction, mirroring of images, text and image overlay, privacy mask, enhanced deinterlace filter, video termination, anti-aliasing, temporal noise filtering, sharpness, noise reduction, local enhancement
Network
Security Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralized certificate management
Supported Protocols IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
System Integration
Application Programming Interface Open API for software integration, including VAPIX and Axis Camera application Platform
Axis Video Hosting System (AVHS) with One-Click Camera Connection
ONVIF Profile S support
Analytics Video motion detection, active tampering alarm
Event Trigger Intelligent video, video loss, edge storage events
Event Action File Upload: FTP, SFTP, HTTP, HTTPS network share, and email
Notification: email, HTTP, HTTPS, and TCP
External output activation
Pre- and post-alarm video buffering
PTZ preset
Status LED
Data Streaming Event data
Web Browser Camera live view, Video recording to file (ASF), Windows XP, Vista, Server 2008, 7, 8, Server 2012, DirectX 9c or higher
Video Management Software AXIS Camera Companion, AXIS Camera Station, Video management software from Axis' Application Development Partners
General
Casing Material: PC+ABS CX7240
Memory 256 MB flash
RAM 256 MB
Power Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 1
Connectors 1 x Analog composite video BNC input
1 x RJ-45 10Base-T/100Base-TX PoE
1 x RS-485/422
Edge Storage 1 x microSD/SDHC/SDXC slot (supports cards up to 64 GB)
Supports recording to attached NAS
Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A+B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-1, CE, RoHS, WEEE, REACH
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 10 to 85%, non-condensing
Dimensions 3.5 x 1.1 x 1.5" / 9.0 x 2.9 x 3.8 cm
Weight 2.5 oz / 70.8 g
Packaging Info
Package Weight 0.5 lb
Box Dimensions (LxWxH) 8.0 x 6.6 x 6.2"
The user manual for the Axis Communications M7011 1-Channel Video Encoder 0764-001 can be downloaded in .pdf format if it did not come with your new video encoders & decoders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications video encoders & decoderss, where you can use our link to download the user manual for the Axis Communications M7011 1-Channel Video Encoder 0764-001.

The user manual lists all of the functions of the Axis Communications M7011 1-Channel Video Encoder 0764-001, all the basic and advanced features and tells you how to use the video encoders & decoders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications M7011 1-Channel Video Encoder 0764-001. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.
