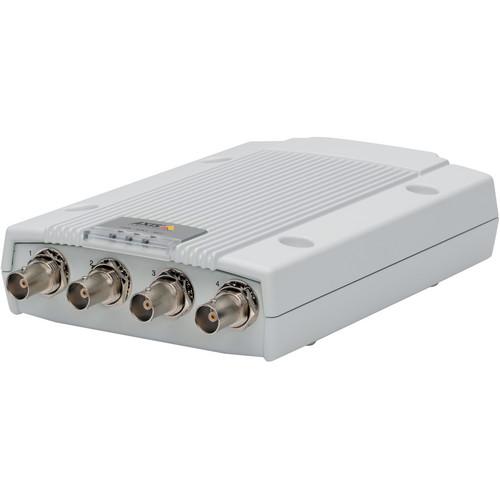

Axis Communications M7014 4-Channel Video Encoder 0415-004
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders
  • Safety instructions
  • Startup and operation of the video encoders & decoders
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
  • Price: 264 USD
We recommend checking out our discussion threads on the Axis Communications M7014 4-Channel Video Encoder 0415-004, which address similar problems with connecting and setting up Video Encoders & Decoders Axis Communications.



User manual for the Axis Communications M7014 4-Channel Video Encoder 0415-004

The user manual for the Axis Communications M7014 4-Channel Video Encoder 0415-004 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.

Update your analog camera setup with the M7014 4-Channel Video Encoder from Axis Communications, which takes inputs from up to 4 channels and encodes them into digital video using H.264 or MJPEG compression. The M7014 can also stream simultaneously in both formats and offers both single and quad view options at high resolutions. It supports D1 resolutions at up to 15 fps and has RS-485/422 ports for full control over PTZ cameras.

Adding the M7014 encoder to your setup also benefits through the implementation of numerous intelligent functions, including video motion detection and a tampering alarm. Additionally, it has a microSD card slot supporting up to 64GB for storage, is compatible with 802.3af/at Power over Ethernet, and is ONVIF compliant.
If you own a Axis Communications video encoders & decoders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications M7014 4-Channel Video Encoder 0415-004 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Axis Communications M7014 4-Channel Video Encoder 0415-004Download user manual for Axis Communications M7014 4-Channel Video Encoder 0415-004
(PDF file, 3.15 MB)
Additional parameters of the Axis Communications M7014 4-Channel Video Encoder 0415-004:
Specifications
    Encoder
    Video Compression H.264 (MPEG-4 part 10/AVC) baseline and main profile Motion JPEG
    Resolutions Single View: 176 x 120 to 720 x 576
    Quad View: 176 x 120 to 1536 x 1152
    Frame Rate 15 fps
    Channels 4
    Video Streaming One individually configured H.264 and one Motion JPEG stream per channel at 15 fps
    More streams if identical or limited in frame rate/resolution
    Controllable frame rate and bandwidth
    VBR/CBR H.264
    Image Settings Compression, color, brightness, contrast
    Rotation: 90°, 180°, 270°
    Aspect ratio correction, mirroring of images, text and image overlay, privacy mask, enhanced deinterlace filter, video termination, antialiasing, temporal noise filtering
    Network
    Security Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
    Supported Protocols IPv4/v6, HTTP, HTTPS, IEEE 802.1X QoS layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
    System Integration
    Connectors 1 x DC input terminal block
    4 x Analog composite video BNC inputs
    1 x RJ-45 10BASE-T/100BASE-TX
    1 x Terminal block for RS-485/422 (full duplex)
    Application Programming Interface Open API for software integration, including VAPIX from Axis Communications
    Intelligent Video Video motion detection, active tampering alarm
    Alarm Triggers Intelligent video, video loss
    Alarm Actions File upload via FTP, HTTP, and email
    Notification via email
    HTTP and TCP, PTZ preset
    PTZ Control Support for one PTZ driver
    General
    Processor ARTPEC-4
    Memory 128 MB flash
    RAM 512 MB
    Storage 1 x microSD/SDHC/SDXC card slot (supports up to 64 GB)
    Power 8 to 20 VDC, Power over Ethernet IEEE 802.3af class 3
    Power Consumption 7 W max
    Operating Temperature 32 to 122°F / 0 to 50°C
    Operating Humidity 20 to 80%, non-condensing
    Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN61000-6-1, EN61000-6-2, EN 60950-1, C-tick AS/NZS CISPR 22, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, KCC Class B, UL/IEC/EN 60950-1
    Dimensions 6.8 x 4.3 x 1.5" / 172 x 109 x 37 mm
    Weight 1.3 lb / 0.6 kg
    Packaging Info
    Package Weight 2.29 lb
    Box Dimensions (LxWxH) 9.5 x 8.3 x 3.0"
    The user manual for the Axis Communications M7014 4-Channel Video Encoder 0415-004 can be downloaded in .pdf format if it did not come with your new video encoders & decoders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications video encoders & decoderss, where you can use our link to download the user manual for the Axis Communications M7014 4-Channel Video Encoder 0415-004.

    The user manual lists all of the functions of the Axis Communications M7014 4-Channel Video Encoder 0415-004, all the basic and advanced features and tells you how to use the video encoders & decoders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications M7014 4-Channel Video Encoder 0415-004. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.
