User manual for the Axis Communications P3367-V Indoor Vandal-Resistant 0406-001

The user manual for the Axis Communications P3367-V Indoor Vandal-Resistant 0406-001 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

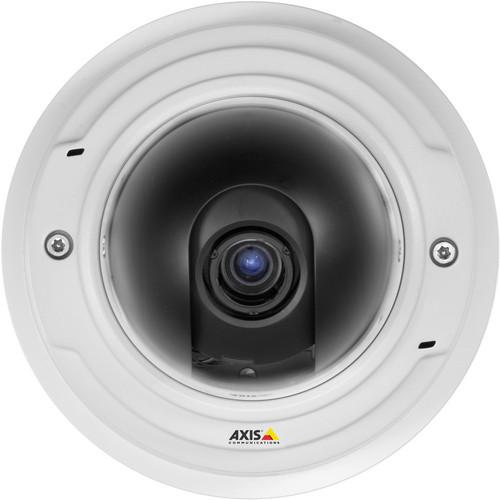

The Axis Communication P3367-V Indoor Vandal-Resistant Fixed Network Camera, with a 1/3.2" progressive scan RGB CMOS imager and a 3 - 9mm P-iris varifocal lens, delivers high-quality images at a resolution up to 2592 x 1944 (5 MP) at HDTV 1080p. The unique P-iris (Precise Iris) ensures consistent iris opening at an optimal level via specialized software, thus providing detailed imagery with optimal sharpness and applicable depth of field. It supports individually configurable multiple H.264 and Motion JPEG video streams at up to 30 fps. Additionally, multi-view streaming enables up to 8 individually cropped out view areas to be streamed simultaneously.
If you own a Axis Communications wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications P3367-V Indoor Vandal-Resistant 0406-001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Axis Communications P3367-V Indoor Vandal-Resistant 0406-001Download user manual for Axis Communications P3367-V Indoor Vandal-Resistant 0406-001
(PDF file, 2.85 MB)
Additional parameters of the Axis Communications P3367-V Indoor Vandal-Resistant 0406-001:
Specifications
    Camera
    Image Sensor Device 1/3.2" Progressive scan RGB CMOS
    Lens Varifocal with remote zoom and focus, IR corrected, megapixel resolution
    P-iris, 3 - 9 mm varifocal lens; 84-30° horizontal angle of view
    Day/Night Automatically removable infrared-cut filter
    Minimum Illumination Color: 0.2 lux at F/1.2
    B/W: 0.04 lux at F/1.2
    Shutter time 1/28,000 to 2 second
    Pan/Tilt/Zoom Digital PTZ, preset positions, guard tour
    Camera Angle Adjustment Pan 360°, tilt 160°, rotation 340°
    Video
    Video Compression H.264 Baseline and Main Profile
    Resolution 2592 x 1944 (5 MP) to 160 x 90
    Frame Rate H.264 and Motion JPEG: 5 MP capture mode: 12 fps in all resolutions, HDTV 1080p (1920 x 1080) and 2 MP 4:3 (1600 x 1200) capture modes: 30 fps in all resolutions
    Video Streaming Multiple, individually configurable streams in H.264 and Motion JPEG
    Controllable frame rate and bandwidth
    VBR/CBR H.264
    Multi-stream Up to 8 individually cropped out view areas. When streaming 4 view areas and 1 overview
    in VGA resolution, the frame rate is 12 fps per stream (5 MP capture mode) or 20 fps per stream (3 MP capture mode)
    Digital PTZ, preset positions, guard tour
    Image Settings Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light
    Rotation: 0°, 90°, 180°, 270°, including Corridor Format
    Text and image overlay, privacy mask, mirroring of images
    Audio
    Audio Streaming 2-way
    Audio Compression AAC LC 8/16 kHz
    G.711 PCM 8 kHz
    G.726 ADPCM 8 kHz
    Configurable bit rate
    Audio Input/Output External microphone input or line input, line output
    Built-in microphone
    Network
    Security Password protection, IP address filtering, digest authentication, user access log, IEEE 802.1X network access control, HTTPS encryption

    This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.

    Supported Protocols IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS

    This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.

    System Integration
    Application Programming Interface Open API for software integration, including the ONVIF
    Application Platform from Axis Communication
    Support for Axis Video Hosting System (AVHS) with One-Click Camera connection
    Intelligent Video Video motion detection, active tampering alarm, audio detection
    Support for Axis Camera Application Platform enabling installation of additional applications
    Alarm Triggers Intelligent video, external input
    Alarm Events File upload via FTP, HTTP and email
    Notification via email, HTTP and TCP
    External output activation
    Video and audio recording to edge storage
    Pre- and post-alarm video buffering

    Edge storage is a technology that allows a network video device to create, control, and manage recordings either locally to an SD/SDHC card, or to network shares such as Network Attached Storage (NAS)

    Installation Software Remote zoom, remote focus, pixel counter
    General
    Casing Polycarbonate transparent cover
    Aluminum inner camera module with encapsulated electronics
    IK10 impact-resistant aluminum casing
    Processor & Memory ARTPEC-4, 512 MB RAM, 128 MB Flash
    Power Class 2, Power over Ethernet IEEE 802.3af
    Connectors RJ-45 10BASE-T/100BASE-TX PoE
    Terminal block for 1 alarm input and 1 output
    3.5 mm mic/line in, 3.5 mm line out
    Edge Storage SD/SDHC memory card slot (card not included)

    Edge storage is a technology that allows a network video device to create, control, and manage recordings either locally to an SD/SDHC card, or to network shares such as Network Attached Storage (NAS)

    Operating Conditions 32 to 122°F (0 to 50°C)
    Humidity 15 - 85% RH (non-condensing)
    Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22, EN 60950-1, IEC 62262 IK10
    Dimension (D x W x H) 3.8 x 5.8 x 4.1" (96 x 148 x 104 mm)
    Weight 1.6 lb (700 g)
    Packaging Info
    Package Weight 2.85 lb
    Box Dimensions (LxWxH) 11.0 x 10.0 x 5.25"
