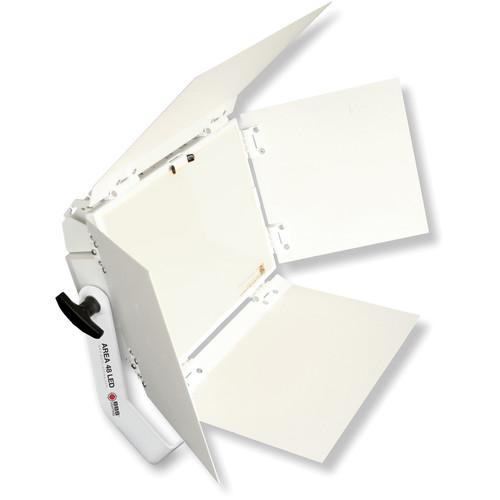

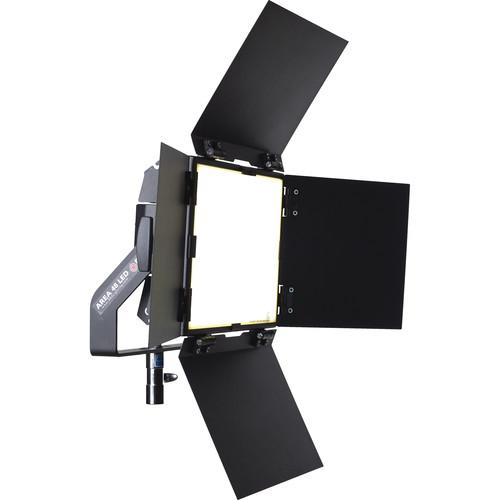

BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004 BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004
Click to enlarge image

We recommend checking out our discussion threads on the BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004, which address similar problems with connecting and setting up LED Lights BBS Lighting.



User manual for the BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004

The user manual for the BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004 provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

This white, 5,600K Area 48 LED Fixture with Remote Phosphor Technology from BBS is a unique LED panel that separates the phosphor, which is normally integrated into the LED, from the Area 48's array. Instead, a phosphor panel with the desired color temperature is inserted into the light's accessory channel. The benefit is a higher degree of color accuracy than that of phosphor incorporated lights as well as a very high CRI. This version of the light ships with a 5,600K panel with an impressive CRI of 95, but the panel is interchangeable with optional 2,700, 3,200, 4,300 and 6,500K panels. There are also chroma green and chroma blue panels available. The Area 48 also has a strobing mode for visual effects.
If you own a BBS Lighting led lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004Download user manual for BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004
(PDF file, 0.23 MB)
Additional parameters of the BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004:
Specifications
    Type LED panel, lamp life: 50,000 hours
    Rating Equivalent to 1,200 W tungsten halogen flood light
    Color Range 2,700K, 3,200K, 4,300K, 5,600K, 6,500K chroma blue, chroma green panels
    This version: 5,600K
    CRI 95
    Beam Angle 160°, 90° with optional softbox, 40° with optional Snap Grid
    Operating Voltage 100-240 VAC, 50/60 Hz
    12-20 VDC (Battery)
    Power Consumption 150W
    Control Manual or internal DMX512
    DMX in/out for daisy-chaining
    Dimming 8/16 bit 0-100%, Locally or remotely with DMX
    Up to 4 control channels in 16 bit mode
    Mount TVMP connector: 5/8" (16 mm)
    Operating temperature 0-104°F (0-40°C)
    Dimensions 14.37 x 10.82 x 4.52" (365 x 275 x 115 mm)
    Weight 7.94 lb (3.6 kg)
    Packaging Info
    Package Weight 15.0 lb
    Box Dimensions (LxWxH) 17.0 x 15.0 x 9.0"
    The user manual for the BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004 can be downloaded in .pdf format if it did not come with your new led lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other BBS Lighting users keep a unique electronic library for BBS Lighting led lightss, where you can use our link to download the user manual for the BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004.

    The user manual lists all of the functions of the BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004, all the basic and advanced features and tells you how to use the led lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from BBS Lighting service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the BBS Lighting Area 48 LED Fixture with Interchangeable BBS-9004. User manuals are also available on the BBS Lighting website under Lighting & Studio - Continuous Lighting - LED Lights.
