User manual Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5

Operating instructions and pdf manual for use - Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5 User manual, User manual Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5, Behringer, B-5, Gold-Sputtered, Diaphragm, Studio, Con


User manual for Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5
  • Manufacturer: Behringer
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Small Diaphragm Condenser
  • Safety instructions
  • Startup and operation of the small diaphragm condenser
  • Tips for setting up your Behringer
  • Settings and expert assistance
  • Contact Behringer service
  • Troubleshooting
  • Warranty information
  • Price: 70 USD
We recommend checking out our discussion threads on the Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5, which address similar problems with connecting and setting up Small Diaphragm Condenser Behringer.



User manual for the Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5

The user manual for the Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5 provides necessary instructions for the proper use of the product Pro Audio - Recording - Small Diaphragm Condenser.

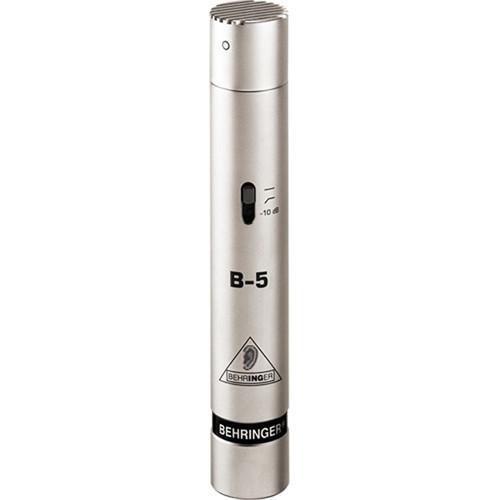

The B-5 Gold-Sputtered Diaphragm Studio Condenser Microphone from Behringer features a true condenser 18mm single diaphragm with two interchangeable capsules that offer cardioid and omnidirectional polar patterns. This flexible design results in high quality signal reproduction when capturing both vocals and instruments. The cardioid capsule provides maximum rejection of off-axis audio and ambiance, minimizing room noise and feedback. The omni-directional capsule provides a generous pick up with uniform frequency response throughout. There is a -10 dB Pad switch and low frequency roll-off for suppressing low frequency hum, rumble, and wind noise. The B-5 is suitable for capturing vocals, drum overheads, guitars, and similar instruments. The package includes a microphone stand adapter, a windscreen, and a carrying case.
If you own a Behringer small diaphragm condenser and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5Download user manual for Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5
(PDF file, 1.12 MB)
Additional parameters of the Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5:

Go To

Operating Principle Pressure Gradient
Transducer Condenser
Diaphragm 0.71" (18 mm)
Polar Pattern Cardioid, Omnidirectional
Frequency Range 20 Hz to 20 kHz
Signal to Noise Ratio Cardioid: 78 dB A-Weighted
Omnidirectional: 76 dB A-Weighted
Equivalent Noise Level Cardioid: 16 dB A-Weighted
Omnidirectional: 18 dB A-Weighted
Maximum SPL 140 dB SPL 1%
150 dB SPL 1%  dB Pad Engaged
Impedance 70 ohms
Load Impedance 1 kOhms
Sensitivity Cardioid: -38 dBV @ 1 kHz, re: 1 V/Pa
Omnidirectional: -40 dBV @ 1 kHz, re: 1 V/Pa
Power Requirements 48 V
Low-Cut Filter Yes, 6 dB/Octave @ 150 Hz
Pad Yes, 10 dB
Operating Current Consumption 3mA
General
Length 4.72" (120 mm)
Diameter 0.79" (20 mm)
Weight 0.52 lb (236 g)
Packaging Info
Package Weight 1.2 lb
Box Dimensions (LxWxH) 12.0 x 5.0 x 3.0"
The user manual for the Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5 can be downloaded in .pdf format if it did not come with your new small diaphragm condenser, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Behringer users keep a unique electronic library for Behringer small diaphragm condensers, where you can use our link to download the user manual for the Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5.

The user manual lists all of the functions of the Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5, all the basic and advanced features and tells you how to use the small diaphragm condenser. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Behringer service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Behringer B-5 Gold-Sputtered Diaphragm Studio Condenser B-5. User manuals are also available on the Behringer website under Pro Audio - Recording - Small Diaphragm Condenser.
