User manual Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX

Operating instructions and pdf manual for use - Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX User manual, User manual Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX, Behringer, Eurodesk, SX3242FX-PRO, 32-Channel,


User manual for Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX
  • Manufacturer: Behringer
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Sound Reinforcement Mixers
  • Safety instructions
  • Startup and operation of the sound reinforcement mixers
  • Tips for setting up your Behringer
  • Settings and expert assistance
  • Contact Behringer service
  • Troubleshooting
  • Warranty information
  • Price: 600 USD
We recommend checking out our discussion threads on the Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX, which address similar problems with connecting and setting up Sound Reinforcement Mixers Behringer.



User manual for the Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX

The user manual for the Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

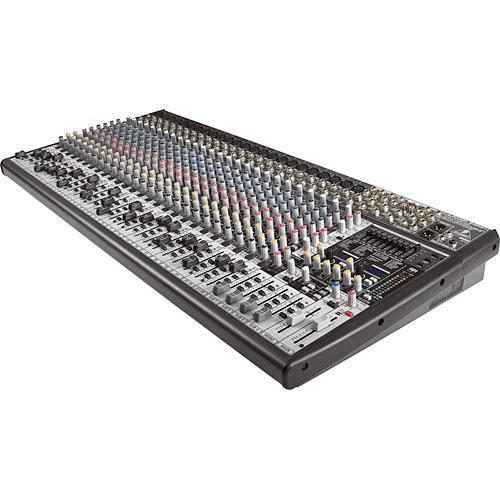

The Behringer Eurodesk SX3242FX-PRO 32-Channel Audio Console is an affordable audio mixer that delivers a feature set suitable for recording and live sound applications. The desk features a total of 32 input channels, with 24 mono and 4 stereo input channels. All mono inputs include XLR microphone inputs and inserts for routing signal to external processors.
If you own a Behringer sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FXDownload user manual for Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX
(PDF file, 4.49 MB)
Additional parameters of the Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX:
Total # Of Inputs 32
Mic/Line Inputs 24 - XLR Microphone
32 - 1/4" TRS Phone Line
Stereo Line Inputs 4 - 1/4" TRS Stereo Line
In-Line Inputs/Returns No
AUX Sends 2 AUX Sends - 1/4" TRS Phone
2 FX Sends - 1/4" TRS Phone
AUX Returns 2 AUX Returns - L/R 1/4" TRS Phone
Inserts 24 - 1/4" TRS Phone (mono inputs)
2 - 1/4" TRS Phone (main output)
BUS (Group) Outputs 4 - 1/4" TRS Phone
2 Trk Master I/O Main Out - Stereo L/R 3-pin XLR
Main Out - Stereo L/R 1/4" TRS Phone
Mono Out - 1/4" Phone
Phono/CTRL Room - Stereo Single 1/4" TRS Phone
ALT I/O Foot Switch - 1/4" Phone
Monitor Outputs Phono/CTRL Room - Stereo Single 1/4" TRS Phone
EQ Section Mono Channels
Low - 80Hz +/- 15dB
Mid - 100Hz to 8kHz +/- 15dB
High - 12kHz +/- 15dB
Low Cut - 80Hz, 18dB/oct.
Stereo Channels
Low - 80Hz +/- 15dB
Low Mid - 400Hz +/- 15dB
High Mid - 3kHz +/- 15dB
High - 12kHz +/- 15dB
Solo/Mute SOLO / PFL MUTE
Channel Level Control Fader
Trim/Gain Control Rotary Pots
Phantom Power +48V Phantom Power
Metering Peak LEDs
Frequency Response < 10Hz - 70kHz +0dB / -1dB
< 10Hz - 130kHz +0dB / -3dB
Dynamic Range Not Specified By Manufacturer
Signal-to-Noise Ratio 110dB / 112dB A-weighted
Total Harmonic Distortion (THD) 0.004% / 0.003% A-weighted
Power Supply Power Consumption 50W
Fuse (100 - 240V~, 50/60Hz) T 2.0 A H 250V
Standard IEC Receptacle
Dimensions (WxHxD) 3.9 x 35.3 x 16.1" (100 x 896 x 410mm)
Weight 25.4 lbs (11.5kg)
Packaging Info
Package Weight 28.15 lb
Box Dimensions (LxWxH) 37.6 x 19.0 x 7.1"
The user manual for the Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Behringer users keep a unique electronic library for Behringer sound reinforcement mixerss, where you can use our link to download the user manual for the Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX.

The user manual lists all of the functions of the Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX, all the basic and advanced features and tells you how to use the sound reinforcement mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Behringer service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Behringer Eurodesk SX3242FX-PRO - 32-Channel Recording SX3242FX. User manuals are also available on the Behringer website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
