User manual for the Behringer EUROLIVE B1800HP Active 2200-Watt PA Subwoofer B1800HP
The user manual for the Behringer EUROLIVE B1800HP Active 2200-Watt PA Subwoofer B1800HP provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

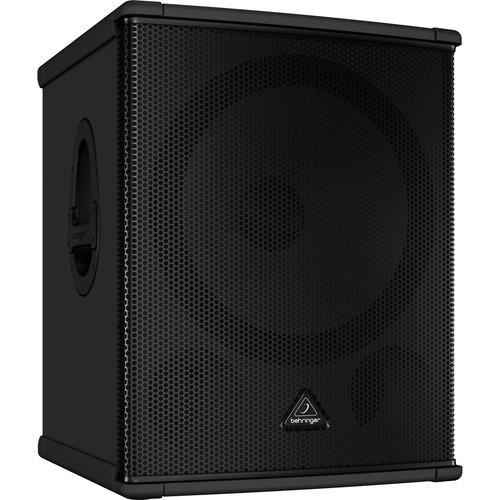

The Behringer EUROLIVE B1800HP Active 2200-Watt PA Subwoofer with 18" Tubosound Speaker provides your PA system with low frequency sound reinforcement by leveraging a 18.0" (45.7 cm) long-excursion TURBOSOUND woofer with 2200W of Class-D amplification to deliver a frequency response of 40 to 150 Hz (±3 dB).
For I/O, the subwoofer features balanced XLR inputs and outputs, as well as balanced XLR Thru jacks for connecting to additional speakers and building more powerful and complex systems. A boost frequency knob targets a boost frequency between 40 and 90 Hz and gives the target frequency a +10 dB boost. The unit also has a high cut dial that provides precise control over the upper corner frequency of the subwoofer's amplifier, without affecting the Thru signals. A level knob controls the input gain and a phase switch allows you to reverse the output phase to compensate for frequency cancellations between the subwoofer and satellite speakers.
The subwoofer includes ergonomic handles for easy transport as well as a pole socket for mounting with commercial spacer poles. A rugged steel grill protects the speaker cone and an internal intelligent limiter ensures maximum sound performance and woofer protection. The unit was conceived and designed in Germany.
|
If you own a Behringer pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Behringer EUROLIVE B1800HP Active 2200-Watt PA Subwoofer B1800HP in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Behringer EUROLIVE B1800HP Active 2200-Watt PA Subwoofer B1800HP:
| Maximum Output Power | 2200 W | | Amplifier Type | Class-D | | I/O | 2x servo-balanced XLR-3F inputs (A and B)
2x servo-balanced XLR-3M Thru (A and B)
2x servo-balanced XLR-3M Output (A and B) | | Sensitivity | +4 dBu at 0 dB (center position) for full rated power | | Max Input | 10V RMS (+22 dBu) | | Input Impedance | 10 kOhms unbalanced
2 kOhms unbalanced | | High Pass Filter | 100 Hz, Butterworth 18 dB slope | | Level Control | -∞ to +6 dB | | Boost Frequency | 40 to 90 Hz, Q = 1, +10 dB | | Booster | Switchable | | High Cut Filter | 70 to 150 Hz, Butterworth, 24 dB slope | | Phase | 0° or 180° phase reverse switch | | Frequency Range | 32 to 200 Hz (-10 dB) | | Frequency Response | 40 to 150 Hz (±3 dB) | | Signal to Noise Ratio | >100 dB (A-weighted) | | SPL Level | 129 dB at 1 m | | Woofer | 18.0" (45.7 cm) | | Signal Indicator | Signal: yellow
Limit: red
Power: amber | | Protection | Amplifier: full short circuit, open circuit, thermal protection
Load protection: turn-on/off muting, DC | | Power Supply | USA/Canada
UK/Australia/Europe
Korea/China
Japan | | Power Consumption | At 1/8 rated power: 130 W | | Mains | Standard IEC receptacle | | Dimensions (H x W x D) | 27.3 x 21.6 x 21.7" (692 x 547 x 552 mm) | | Weight | 119 lb (54 kg) | | Package Weight | 129.0 lb | | Box Dimensions (LxWxH) | 32.0 x 27.0 x 27.0" | |
